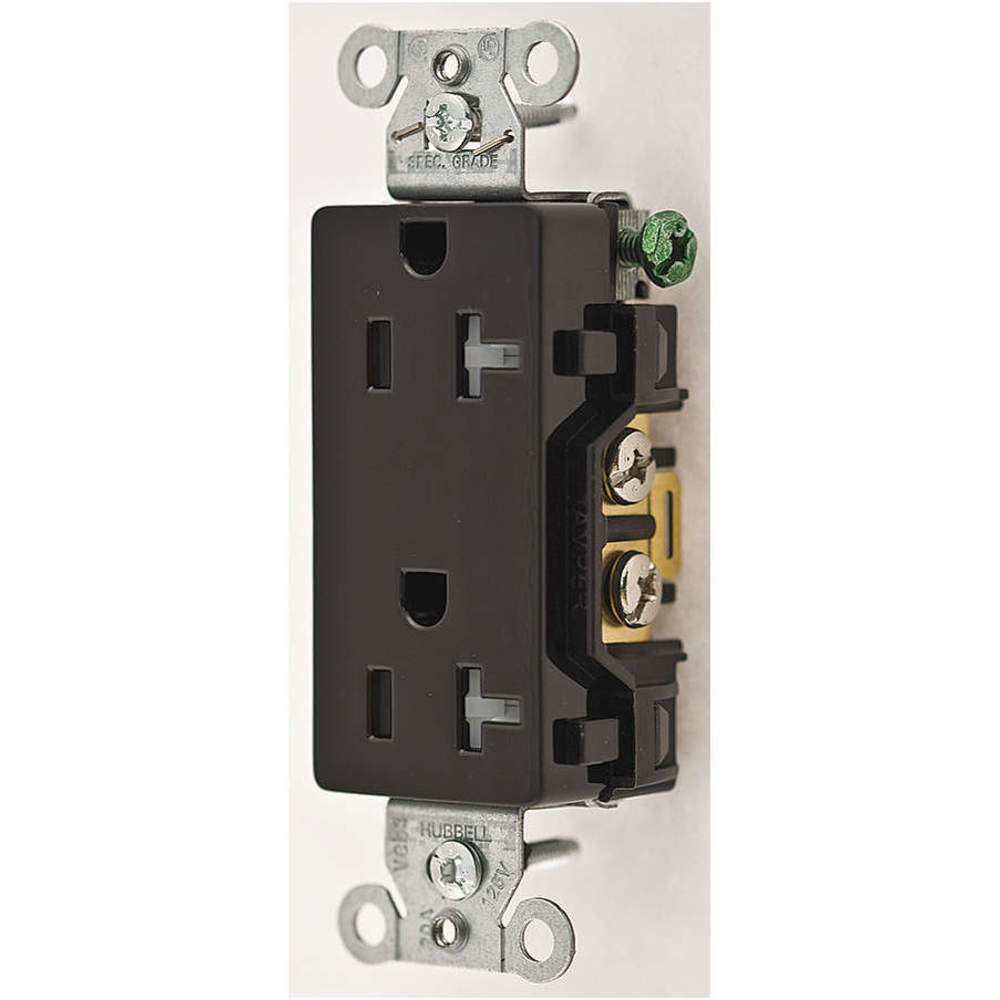

| Item | Receptacle |
| Amps | 20A |
| Application Environment | Commercial Environments |
| Color | Black |
| Connectivity | Back And Side Wired |
| Grade | Commercial |
| Height | 1.29" |
| Length | 3 7/25" |
| Material | Nylon |
| Max. Hp | 1 hp |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Decorator Duplex |
| Phase | 1 |
| Power Indicator | No |
| Prod. Description | Tamper Resistant And Smooth Face |
| Surge Protection | No |
| Voltage | 125V |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1.14" |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
| Afci | No |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Color | Black |
| Housing Material | Nylon |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Mount Hole Center-to-center Height | 2.7" |
| Mount Hole Center-to-center Width | 1.3" |
| Mount Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Overall Depth | 1.3" |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Special Resistance | Tamper Resistant |
| Standards | CSA CERTIFIED C22.2, NEMA WD-6, UL 498 |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
