HUBBELL WIRING DEVICE-KELLEMS
HUBBELL WIRING DEVICE-KELLEMS CS8269 Receptacle, 50A, 250V, 2-Pole, 3-Wire Grounding | AC8QGF 3D332

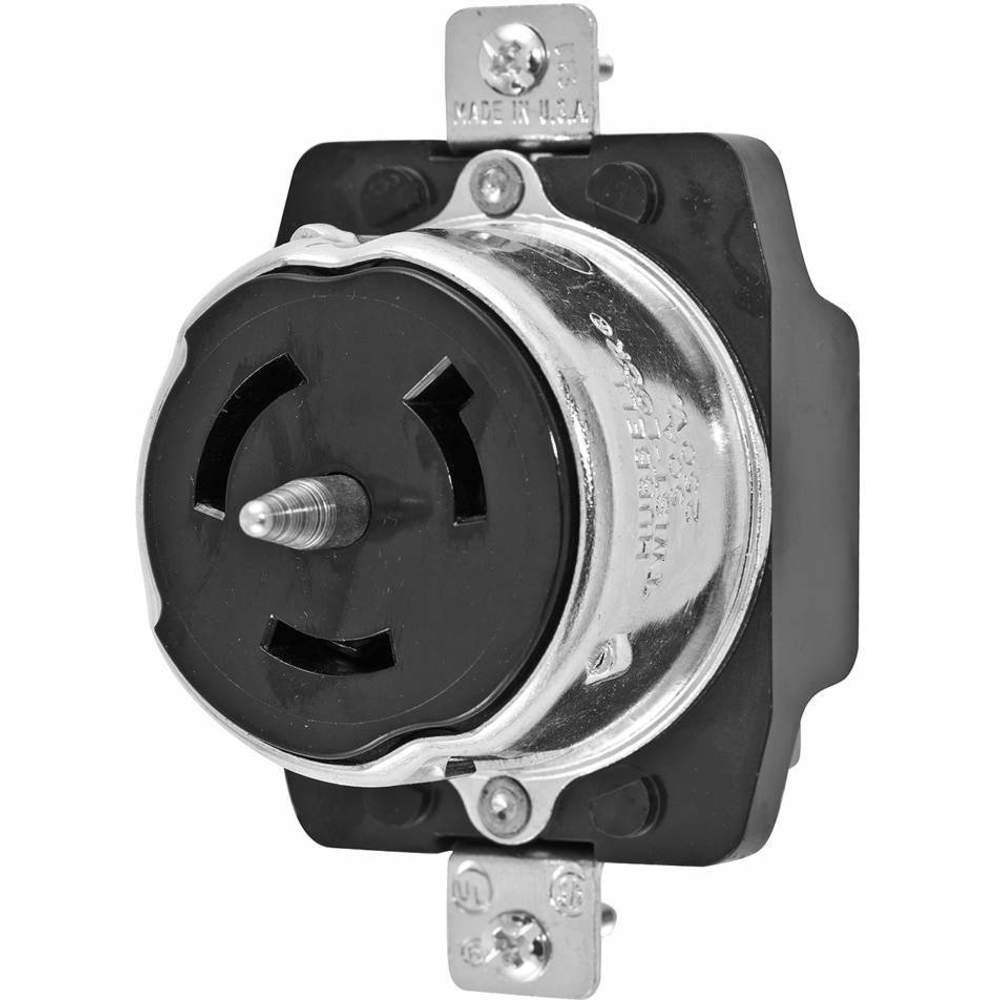

HUBBELL WIRING DEVICE-KELLEMS CS8269 Receptacle, 50A, 250V, 2-Pole, 3-Wire Grounding

In Stock
Item: AC8QGF Model: CS8269Cross Ref: 3D332
Check Availability
See variants (9)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€232.77 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemReceptacle
Amps50
ColorBlack
ConnectivityScrew Terminals
Current Rating50 A
Diameter B-C-EScrew Terminals
Dielectric StrengthWithstands 2,000V minimum
GradeIndustrial
Height2.36"
IP Rating20
Length2.69"
MaterialPhenolic
MountingScrew Mounting
Mounting TypeFlush Mount
NEMA ConfigurationNon-NEMA
NEMA Rating4, 4X, 12
Number of Poles2
Number of Wires3-Wire
Operating Temp.Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact
PhaseSingle Phase
TypeShrouded
Voltage250 VAC
Voltage Rating250 V
Wattage12500 W
Width2.12"
Wire Size#10 AWG to #6 AWG
Wire TypeStandard

Shipping Info:

Ship weight (kg) 0.34
Ship height (cm)9.65
Ship length (cm)8.64
Ship width (cm)6.86
HS code8536698000
Country of OriginUS

Product Details:

  • Special Features: With Locking Cover

Product Variants

ProductModelPhaseGradeItemTypeVoltageVoltage RatingWidthWire SizePrice
HUBBELL WIRING DEVICE-KELLEMS HBL3769 Receptacle, 50A, 250VDC/600VAC, 3-Pole, 4-Wire Grounding | AC8PZD 3D127 HBL3769Multi PhaseIndustrialReceptacleNon-Shrouded250VDC/600VAC250 VDC/600 VAC2.12"#8 AWG to #4 AWG€340.37
HUBBELL WIRING DEVICE-KELLEMS HBL3771 Receptacle, 50A, 250VDC/600VAC, 2-Pole, 3-Wire Grounding | AC8PZE 3D128 HBL3771Multi PhaseIndustrialReceptacleNon-Shrouded250VDC/600VAC250 VDC/600 VAC2.12"#8 AWG to #4 AWG€315.01
HUBBELL WIRING DEVICE-KELLEMS HBL7379 Receptacle, 50A, 250VDC/ 600VAC, 3-Pole, 4-Wire Grounding | AC8QDF 3D245 HBL7379Multi PhaseIndustrialReceptacleNon-Shrouded250VDC/600VAC250 VDC/600 VAC2.12"#8 AWG to #4 AWG€298.69
HUBBELL WIRING DEVICE-KELLEMS CS6369 Receptacle, 50A, 125/250V, 3-Pole, 4-Wire Grounding | AC8QFX 3D324 CS6369Single PhaseIndustrialReceptacleShrouded125/250 VAC125/250 VAC2.12"#10 AWG to #6 AWG€240.06
HUBBELL WIRING DEVICE-KELLEMS CS6370 Receptacle, 50A, 125V, 2-Pole, 3-Wire Grounding | AC8QFY 3D325 CS6370Single PhaseIndustrialReceptacleNon-Shrouded125 VAC125 V2.12"#10 AWG to #6 AWG€232.64
HUBBELL WIRING DEVICE-KELLEMS CS8169 Receptacle, 50A, 3-Phase, 480VAC, 3-Pole, 4-Wire Grounding | AC8QGC 3D329 CS8169Three PhaseIndustrialReceptacleShrouded480 VAC3-Phase Delta 480 VAC2.11"#10 AWG to #6 AWG€223.41
HUBBELL WIRING DEVICE-KELLEMS CS8369 Receptacle, 50A, 3-Phase, Delta, 250VAC, 3-Pole, 4-Wire Grounding | AC8QGJ 3D335 CS8369Three PhaseIndustrialReceptacleShrouded250 VAC3-Phase Delta 250 VAC2.12"#10 AWG to #6 AWG€235.45
