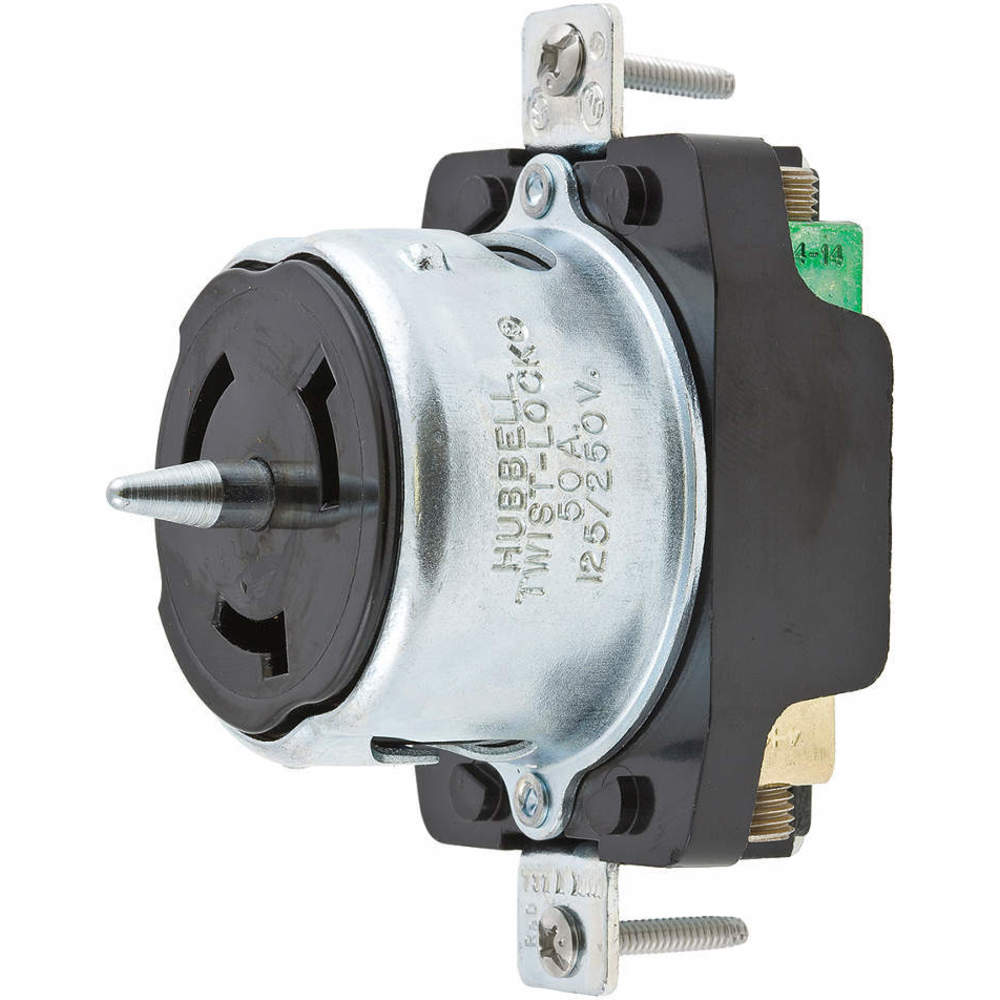

| Item | Receptacle |
| Amps | 50A |
| Color | Black |
| Connectivity | Screw Terminals |
| Grade | Grade Industrial |
| Height | 2 9/25" |
| Length | 2.69" |
| Material | Phenolic |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Configuration | Non-NEMA |
| Nema Rating | NEMA 12, NEMA 4, NEMA 4X |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 1 |
| Type | Shrouded |
| Wattage | 12500 W |
| Width | 2 3/25" |
| Wire Size | #10 AWG to #6 AWG |
| Wire Type | Standard |
| Afci | No |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 50A |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grounding | Grounded |
| Housing Color | Black |
| Housing Material | Phenolic |
| Ip Rating | IP20 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 6 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 10 AWG |
| Mount Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Gangs | 1 |
| Polarized | Yes |
| Resistance Properties | Heat Resistant |
| Shrouded | Yes |
| Standards | CSA CERTIFIED C22.2 NO. 42, UL 498 |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.99 |
| Ship length (cm) | 6.83 |
| Ship width (cm) | 5.38 |
| HS code | 8536698000 |
| Country of Origin | US |
