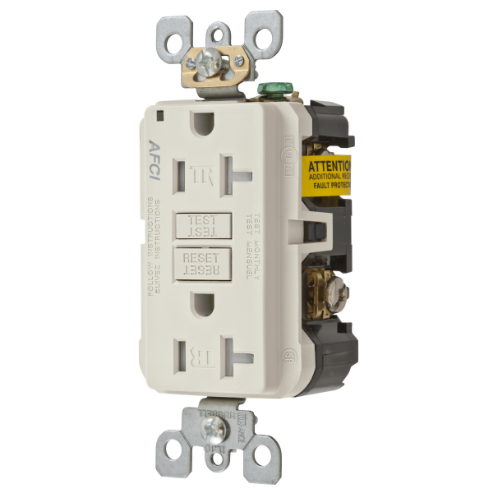

| Item | Receptacle |
| Afci | Yes |
| Amps Rating | 20A |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Face Plate Height | 2 3/5" |
| Face Plate Width | 1.7" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | Light Almond |
| Housing Material | Nylon |
| Hp | 1 hp |
| Max. Operating Temp. | 150°F |
| Min. Operating Temp. | -30°F |
| Mount Hole Center-to-center Height | 3 4/5" |
| Mounting Type | Flush |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Depth | 1 2/5" |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Self Testing | Yes |
| Special Resistance | Tamper Resistant |
| Surge Protection | No |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20A |
| Grade | General Use |
| Horsepower Rating | 1 hp |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -30°F |
| Mount Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Standards | CSA CERTIFIED C22.2 NO. 42, CSA CERTIFIED TECH LETTER NO. M-02A, NEMA WD-6, UL 498, UL FEDERAL SPECIFICATION WC-596, UL1699A E366570 |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.2 |
| Ship length (cm) | 12.82 |
| Ship width (cm) | 8.38 |
| Country of Origin | CN |
