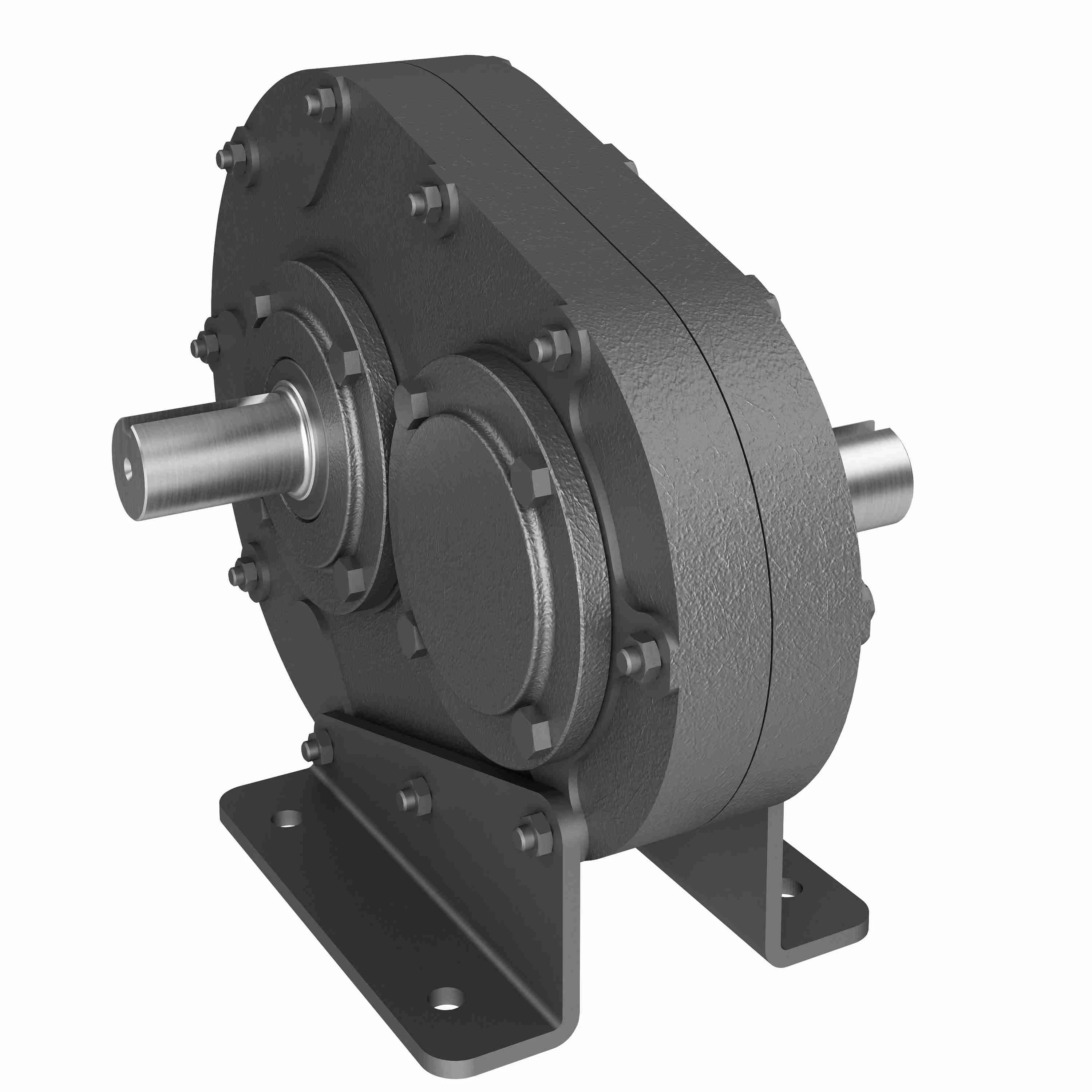

HUB CITY 0220-01013 Parallel Shaft Drive, 1:1 Ratio, 160 HP, 1.5 Inch I.D, 1.5 Inch O.D, Cast Iron
Get it by Tuesday, Jun 17
€2,095.90 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Parallel Shaft Drives |
| Center Distance | 5.424" |
| Gear Type | H |
| Housing Material | Cast Iron |
| Input Dia. | 1 1/2" |
| Input Hp @ 1750 Rpm | 160 hp |
| Input Style | Shaft |
| Output Dia. | 1 1/2" |
| Output Rpm | 1750 RPM |
| Output Shaft | Shaft |
| Product Line | Parallel Shaft Drive |
| Ratio | 1:1 |
| Service Factor | 1 |
| Torque Rating | 5589 lbs.-in. |
| Weight | 83 lbs. |
| Input Hp | 160 hp |
| Output Torque Range | 5000 lbs.-in. to 10000 lbs.-in. |
| Product Type | Parallel |
| Style | A |
| Ship weight (kg) | 37.35 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
| Product | Model | Price | |
|---|---|---|---|
 |
0220-01001 | €2,202.42 | |
 |
0220-01041 | €2,511.80 | |
|
0220-01014 | €2,640.83 | |
|
0220-01021 | €2,515.09 | |
|
0220-01048 | €3,023.74 | |
 |
0220-01004 | €2,202.42 | |
|
0220-01008 | €2,775.06 |
