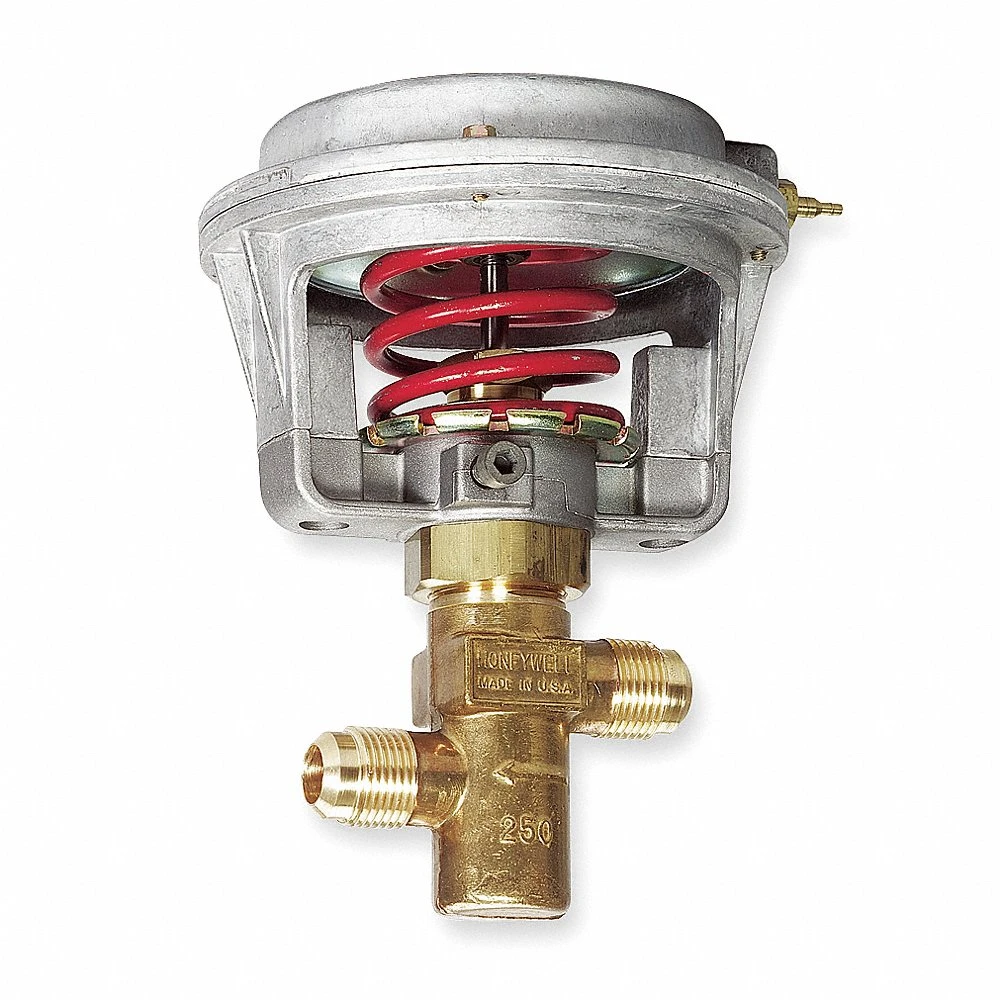

HONEYWELL VP513B1053 Pneumatic Control Valve, 5/8 Outer Dia., 2-Way NC, 2.5 CV
€839.74 /unit
Request a Quote
Payment
Payment
| Item | Pneumatic Control Valve |
| Cv | 2.5 |
| Function | Integral Seat And Brass Plug With Removable Composition Disc Provides Equal Percentage Flow |
| Max. Temp. | 250°F |
| Number Of Ways | 2 |
| Pipe Size | 5/8" |
| Pressure Rating | 250 psi |
| Type | Unitary |
| Actuator Control Pressure - Maximum | 13 psi |
| Actuator Control Pressure - Minimum | 9 psi |
| Actuator Control Signal | Proportional |
| Actuator Type | Pneumatic |
| Body Material | Bronze |
| Body Pattern | Two-Way |
| Compatible With Series | Series VP513B |
| Configuration | Offset |
| Cv Flow Rate | 2.5 |
| Distance Between Inlet And Outlet Port | 3 1/2" |
| Flow Characteristic | Equal Percentage |
| Fluid Service | Water |
| Fluid Temperature - Maximum | 250°F |
| Fluid Temperature - Minimum | 35°F |
| Includes Actuator | Actuator Included |
| Max. Pressure | 25 psi |
| Overall Depth | 5 1/8" |
| Overall Height | 5 1/8" |
| Overall Length | 5 1/8" |
| Port Connection Size | 1/2" |
| Port Connection Type | Flare |
| Seat Material | Brass |
| Specific Valve Action | Stem Up to Close |
| Stem Material | Stainless Steel |
| Valve Action | Normally Closed |
| Ship weight (kg) | 1.94 |
| Product | Model | Price | |
|---|---|---|---|
 |
VP513A1188 | €1,849.68 |
