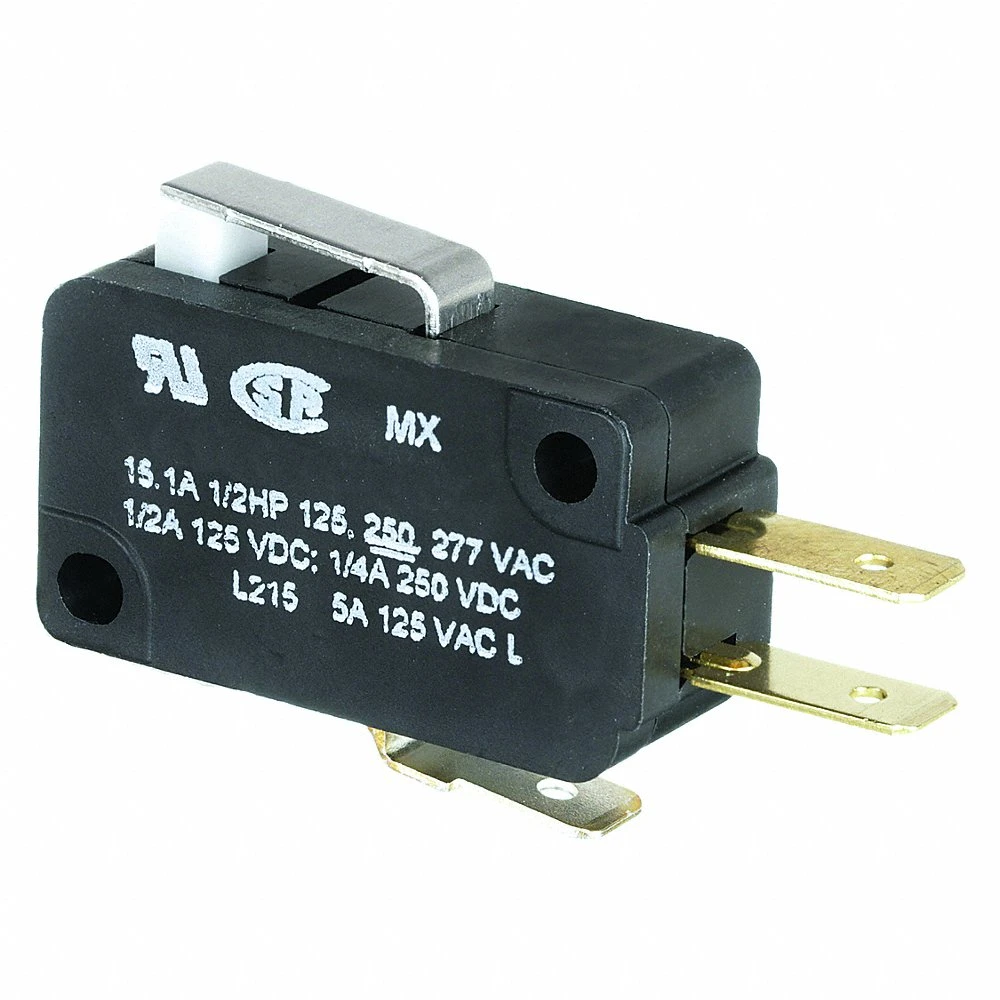

| Item | Premium Miniature Snap Switch |
| Actuation Type | Short Straight Lever |
| Actuator Length | 0.87" |
| Actuator Type | Short Straight Lever |
| Actuator Type - Snap Action Switch | Lever, Short |
| Amps Rating | 15A |
| Body Material | PCT Polyester Thermoplastic |
| Connection | Quick Connect Terminal |
| Contact Form | SPDT |
| Depth | 2/5" |
| Depth - Snap Action Switch | 2/5" |
| Differential Travel | 0.015" |
| Head | Lever |
| Head Action | Spring Return, Standard |
| Height | 0.63" |
| Height - Snap Action Switch | 0.63" |
| Length | 1.14" |
| Lever Actuator Length - Snap Action Switch | 0.87" |
| Max. Pretravel | 0.06" |
| Mounting Dimension | 0.41" x 0.87" |
| Operating Force | 5 1/2 oz. , 5.5 oz. |
| Operating Temp. | -40°F to +180°F |
| Operator Configuration | Straight |
| Over Travel | 0.035" |
| Release Force | 0.52 oz. |
| Terminal Type | Quick Connect |
| Voltage | 277V AC |
| Watertight | No |
| Ac Contact Rating | 15A @ 125V |
| Actuator Style | Roller Lever |
| Body Depth | 0.4" |
| Body Height | 0.63" |
| Body Width | 1.14" |
| Center Mounting Hole Distance | 0.88" |
| Dc Contact Rating | 0.25 A @ 250 V, 0.5 A @ 125 V |
| Differential Travel - Maximum | 0.015" |
| Display Qty | 1 |
| Electrical Connection | Quick Connect |
| Lever Actuator Length | 0.87" |
| Mounting Hole Diameter | 1/8" |
| Operating Force - Maximum | 5.5 ozf |
| Operating Temperature - Maximum | 365°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 0.4" |
| Overall Height | 0.63" |
| Overall Width | 1.14" |
| Pre-travel | 0.06" |
| Series | V7 Series |
| Standards | CSA, ENEC, ROHS, UL LISTED |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 4.06 |
| Ship width (cm) | 2.54 |
| HS code | 8536509055 |
| Country of Origin | MX |
| Product | Model | Actuator Length | Current Rating | Differential Travel | Housing Material | Max. Pretravel | Operating Force | Over Travel | Release Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
V7-1B17D8-022 | 1.41" | 3A | 0.027" | PCT Polyester Thermoplastic | 0.12" | 2.82 oz. | 0.067" | 0.28 oz. | €11.46 | |
 |
V7-1B17D8-122 | 1.63" | 3A | 1.35mm | Polyester | 6mm | 0.42N | 3mm | 0.10 oz. | €6.35 |
