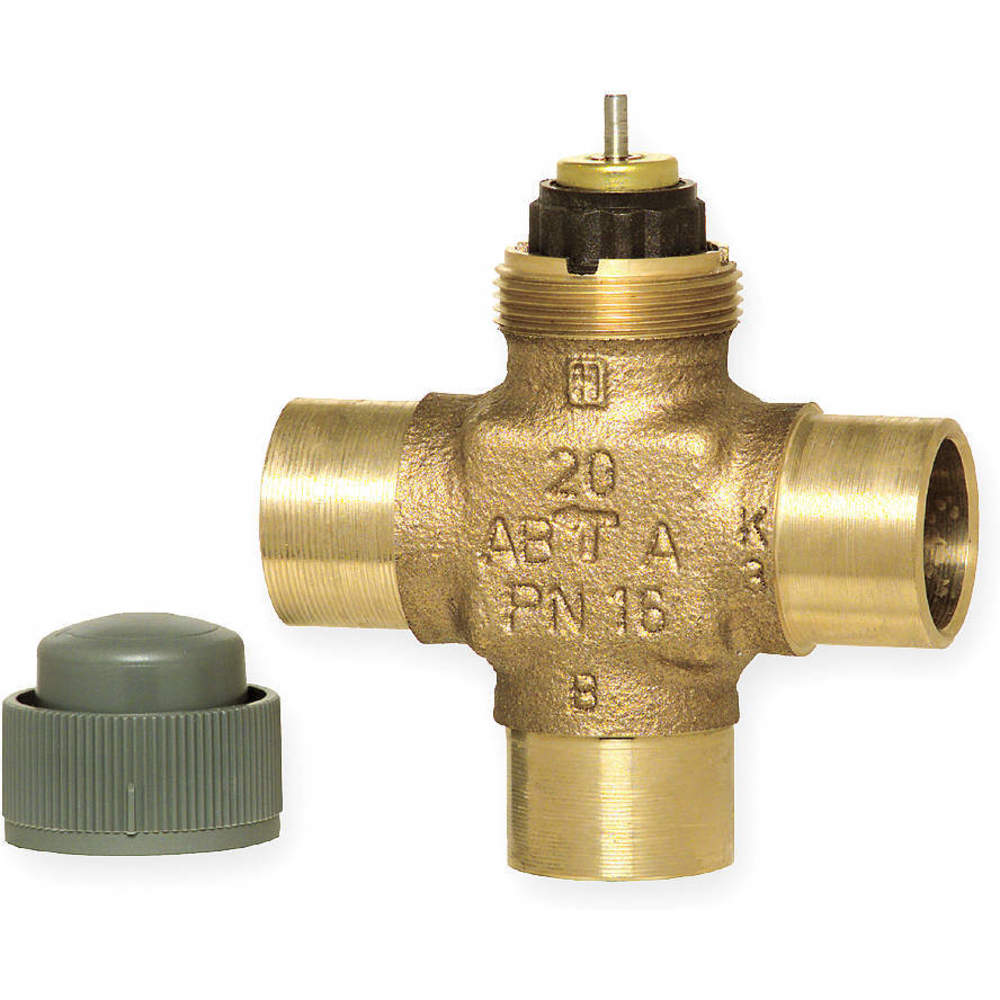

| Item | Solder Globe Valve |
| Actuator Control Pressure | Not Applicable |
| Actuator Control Pressure - Maximum | Not Applicable |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Not Applicable |
| Body Material | Brass |
| Cartridge Material | Brass |
| Configuration | Tee |
| Flow Characteristic | Equal Percentage |
| Includes | Installation Manual |
| Includes Actuator | Actuator Not Included |
| Port Connection Gender | Female |
| Port Connection Type | Sweat |
| Rangeability | 501 |
| Seat Material | Brass |
| Specific Valve Action | Stem Up To Close |
| Specifications | Long Stroke Allows Wider Range Of Control. Soft Valve Seat Provides Low Leakage Rate. Threaded Plastic Cover/Manual Handle Allows Manual Operation. Easily Installed In Areas Where Space Is Limited. |
| Stem Material | Stainless Steel |
| Valve Style | Mixing |
| Ansi Rating | ANSI Leakage Class IV |
| Body Pattern | Three-Way |
| Compatible With Series | Series V58 |
| Cv Flow Rate | 1.9 |
| Fluid Service | Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 230°F |
| Fluid Temperature - Minimum | 36°F |
| Leakage Rate | 0.01% |
| Overall Depth | 1 3/16" |
| Overall Height | 3 11/32" |
| Overall Length | 2 1/2" |
| Port Connection Size | 1/2" |
| Stem Travel | 1/4" |
| Valve Action | Normally Open, Normally Closed |
| Ship weight (kg) | 0.31 |
| Product | Model | Agency Compliance | Coefficient Of Volume | Connection Type/size | Depth | Height | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
V5852A2049 | - | 1.2 | Sweat 1/2" | 3" | 3" | 2-Way, Cartridge | €104.70 | |
 |
V5852A2072 | - | - | - | - | - | - | €155.65 | |
 |
V5853A2063 | CRN.png | 4.9 | Sweat 3/4 | 3 1/2" | 3 15/32" | 3-Way, Cartridge | €187.42 | |
 |
VCZBB1100 | CRN | 3.5 | - | 2.75 | 4.375 | 2-Way, Cartridge Cage | €103.86 | RFQ
|
 |
VCZNB6100 | - | - | - | - | - | - | €124.91 |
