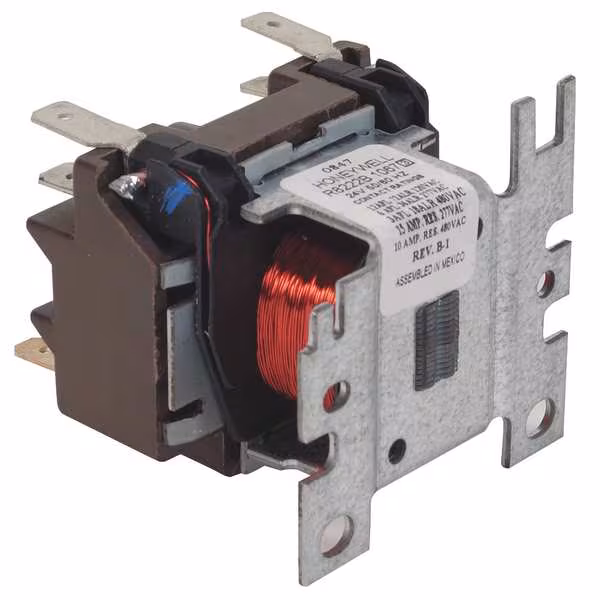

| Item | Magnetic Relay |
| Coil Voltage | 24V |
| Depth | 2 3/8" |
| Full Load Amps @ 120v | 12A |
| Full Load Amps @ 240v Ac | 6A |
| Height | 1 7/8" |
| Locked Rotor Amps @ 120v | 60A |
| Locked Rotor Amps @ 240v | 35A |
| Mounting | Universal |
| Resistive Amps @ 120v | 20.8A |
| Resistive Amps @ 208vac | 20.8A |
| Resistive Amps @ 277v | 20.8A |
| Switch Type | SPDT |
| Type | AC Switching |
| Width | 2.156" |
| Contact Form | SPDT |
| Electrical Connection Type | Quick Connect Terminals |
| Frequency | 50/60 Hz |
| Full Load Amps @ 120v Ac | 12A |
| Horsepower @ 120v Ac | 3/4 hp |
| Horsepower @ 240v Ac | 3/4 hp |
| Locked Rotor Amps @ 120v Ac | 60A |
| Locked Rotor Amps @ 240v Ac | 35A |
| Low Voltage Contact Form | SPDT |
| Low Voltage Switch Action | Normally Open |
| Mounting Style | Surface |
| Operating Temperature - Maximum | 155°F |
| Operating Temperature - Minimum | -20°F |
| Overall Depth | 2 3/8" |
| Overall Length | 1 7/8" |
| Overall Width | 2 3/16" |
| Resistive Load Amps @ 120v Ac | 20.8A |
| Resistive Load Amps @ 240v Ac | 20.8A |
| Standards | CSA LR35066, UL E59779 |
| Switch Action | Normally Closed/Normally Open |
| Voltage | 24V AC |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.37 |
| HS code | 8536490080 |
| Country of Origin | MX |
| Product | Model | Switch Type | Price | |
|---|---|---|---|---|
 |
R8222D1014 | DPDT | €49.28 |
