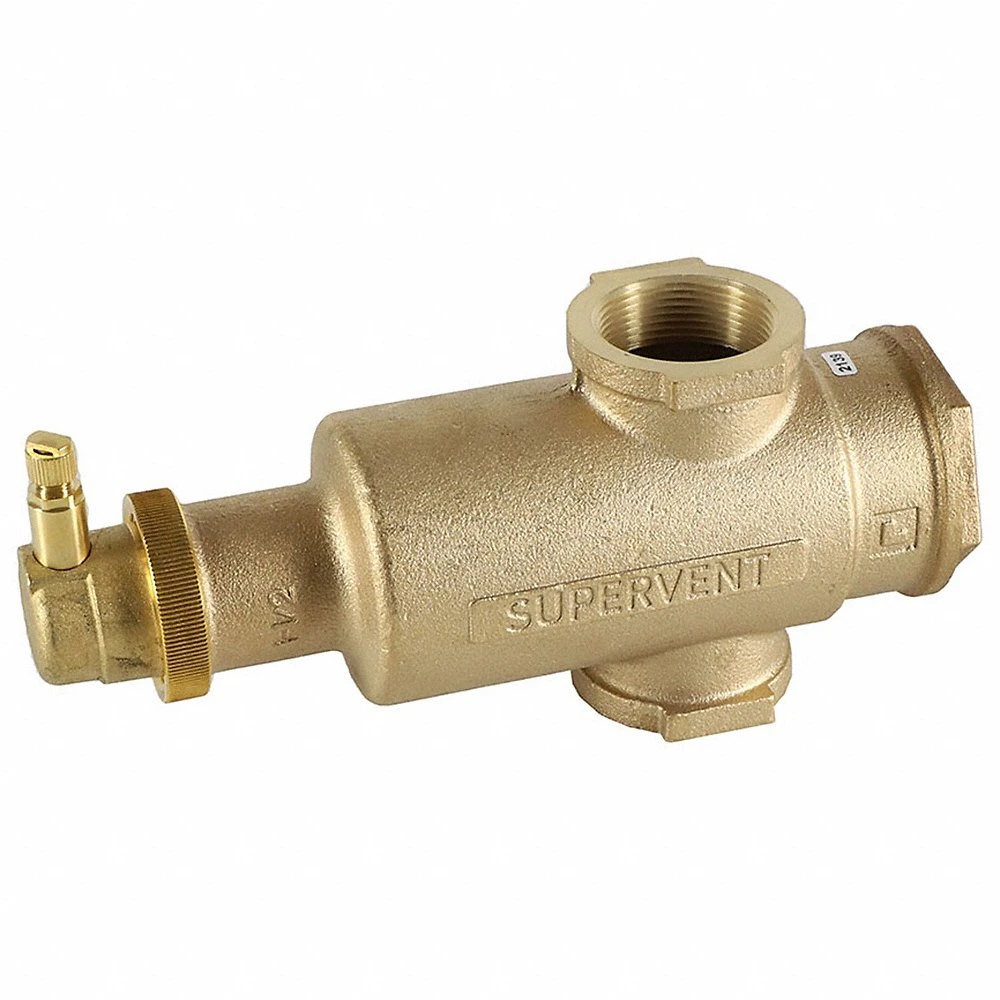

| Item | Hydronic Air Vent |
| Construction | Cast |
| Fnpt Size | 1 1/2" |
| Material | Bronze |
| Max. Pressure | 125 psi |
| Max. Temp. | 240°F |
| Overall Height | 9.688" |
| Type | Automatic |
| Air Vent Connection Size | 1/2" |
| Air Vent Connection Type | Sweat |
| Allowable Pressure - Maximum | 125 psi |
| Allowable Temperature - Minimum | 0°F |
| Application | Residential Or Commercial Closed Loop Hydronic Heating Or Chilled Water Systems |
| Body Material | Bronze |
| Cap Material | Brass |
| Expansion Tank Connection Gender | Female |
| Expansion Tank Connection Size | 1/2" |
| Expansion Tank Connection Type | NPT |
| Float Material | Thermoplastic |
| For Media | Water |
| Gasket Material | EPDM Rubber |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/2" |
| Inlet Port Connection Type | NPT |
| Manufacturer Series | PV |
| Max. Operating Pressure | 125 psi |
| Max. Operating Temp. | 239°F |
| Number Of Inlet Ports | 1 |
| Number Of Outlet Ports | 2 |
| Outlet Port Connection Gender | Female |
| Outlet Port Connection Size | 1 1/2" |
| Outlet Port Connection Type | Sweat |
| Overall Depth | 4 5/16" |
| Overall Length | 4 5/16" |
| Overall Width | 3 1/8" |
| Port Adjustability | Adjustable |
| Port Types Included | Inlet, Outlet, Expansion Tank |
| Product Type | Air Eliminator |
| Ship weight (kg) | 2.36 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 25.15 |
| Ship width (cm) | 18.8 |
| HS code | 8481809015 |
| Country of Origin | US |
| Product | Model | (f)npt Connections (in.) | Connection | Construction | Material | Max. Pressure | Max. Temp. | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
EA122A1002 | - | 1/8" (M)NPT | - | Thermoplastic | 90 psi | 230 F | 5.25" | €78.80 | |
 |
EA79A1004 | 1/2 | 3/4" (M)NPT | Brass Shell | Brass Shell | 150 psi | 250 F | 5" | €110.29 | |
 |
PV075S/U | - | 3/4" Sweat Straight Through | Cast | Bronze | 125 psi | 240 F | 7.375" | €188.99 |
