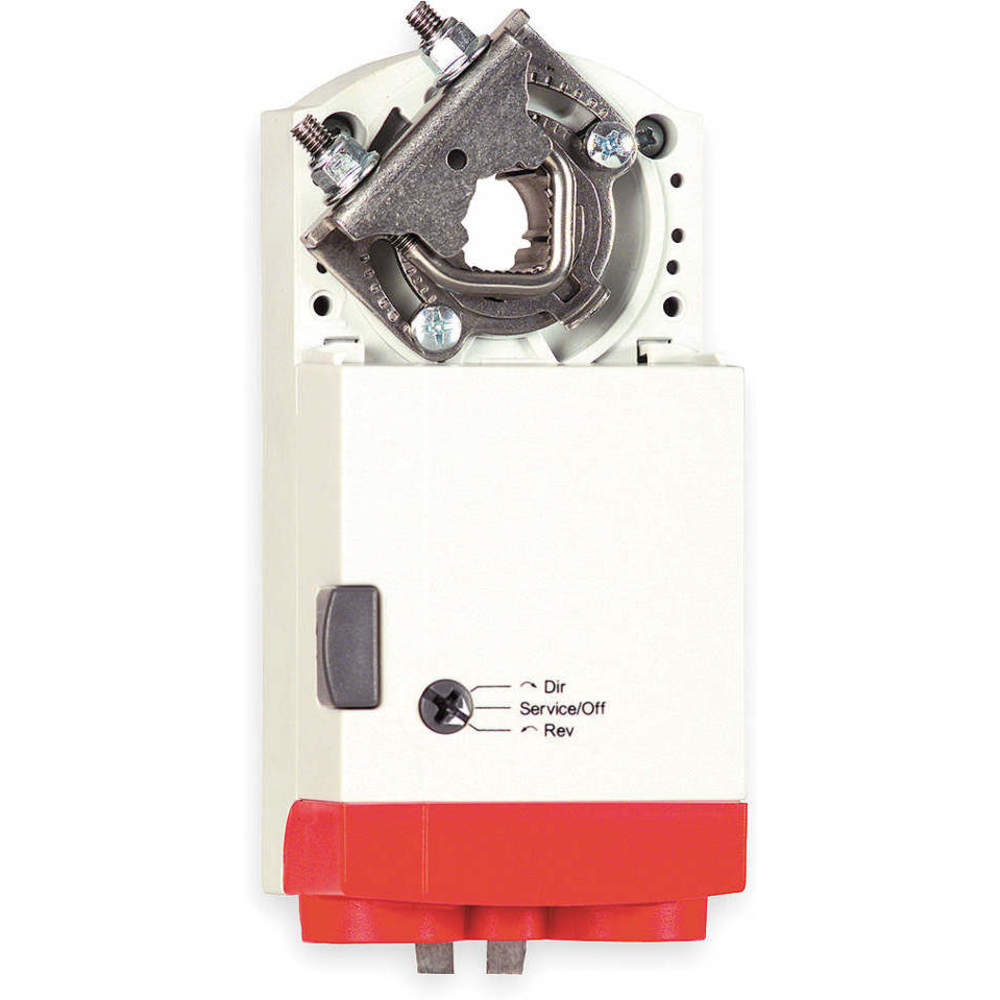

| Item | Electric Actuator |
| Ambient Temp. Range | -5°F to +140°F |
| Application | Air Handlers, Air Units, Dampers, Louvers, Ventilation Flaps |
| Depth | 2 1/2" |
| Electrical Connection Type | Hardwired |
| For Use With | Air Handlers, Air Units, Louvers, Ventilation Flaps |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 5 1/4" |
| Includes | Cap Fittings, Mounting Hardware, Screws, Shaft Adapter, Water-Tight Strain-Relief Cable Fittings |
| Mounting Type | Direct |
| Number Of Auxiliary Switches | 0 |
| Output Signal | Not Applicable |
| Overall Depth | 2 1/2" |
| Overall Height | 5 1/4" |
| Overall Width | 2 1/2" |
| Power Consumption | 5 VA |
| Signal Type | Floating Point |
| Spring Return | No |
| Switch Type | SPDT |
| Time To Close | 95 sec. |
| Timing | 95 sec. |
| Valve Application | Damper |
| Width | 2 1/2" |
| Contact Form | SPDT |
| Control Signal | Floating Point |
| Input Voltage | 24V AC |
| Ip Rating | IP54 |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -5°F |
| Nema Rating | 2 |
| Product Type | Actuator |
| Rated Torque | 44 lbs.-in. |
| Return Action | Non-Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | U Bolt Clamp |
| Stroke Degree | 95° |
| System Application | Air Handlers, Air Units, Dampers, Louvers, Ventilation Flaps |
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.35 |
| Country of Origin | MX |
| Product | Model | Ambient Temp. Range | Depth | Electrical Connections | Height | Mounting Type | Power Consumption | Shaft Type | Spring Return | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M7284A1004 | -40 Degrees to 150 Degrees F | 7-5/16" | Screw Terminals | 6.437" | Foot Mounted | 15VA | Double-Ended | No | €1,624.92 | |
 |
M7284C1000 | -40 Degrees to 150 Degrees F | 7-5/16" | Screw Terminals | 6.437" | Foot Mounted | 15VA | Double-Ended | No | €1,922.76 | |
 |
MN7505A2001 | -5 Degrees to 140 Degrees F | 2.437" | (2) Color Coded 16" Lead | 5 9/32" | Direct Mount | 5VA | U-Bolt Clamp | No | €329.16 | |
 |
MS8120F1200 | -40 Degrees to 130 Degrees F | 3" | (2) Integral 3/8" Flexible Conduit | 10 11/16" | Direct Mount | 45VA Driving, 10VA Holding | 3/8" to 1-3/8" Round or 3/8" to 11/16" Square | Yes | €674.64 | |
 |
MS8105A1130 | -22 Degrees to 149 Degrees F | 3.156" | Enclosed Screw Terminal Strip | 6-81/54" | Direct Mount | 6/3VA | Self-Centering Clamping | Yes | €481.27 | |
|
MN7220A2205 | -5 Degrees to 140 Degrees F | 3.625" | Enclosed Screw Terminal Strip | 8 25/32" | Direct Mount | 6VA | Self-Centering Clamping | No | €843.24 | |
 |
MS4120A1209 | -40 Degrees to 140 Degrees F | 2-15/16" | Enclosed Screw Terminal Strip | 9.75" | Direct Mount | 60VA Driving, 13VA Holding | Self-Centering Clamping | Yes | €945.34 |
