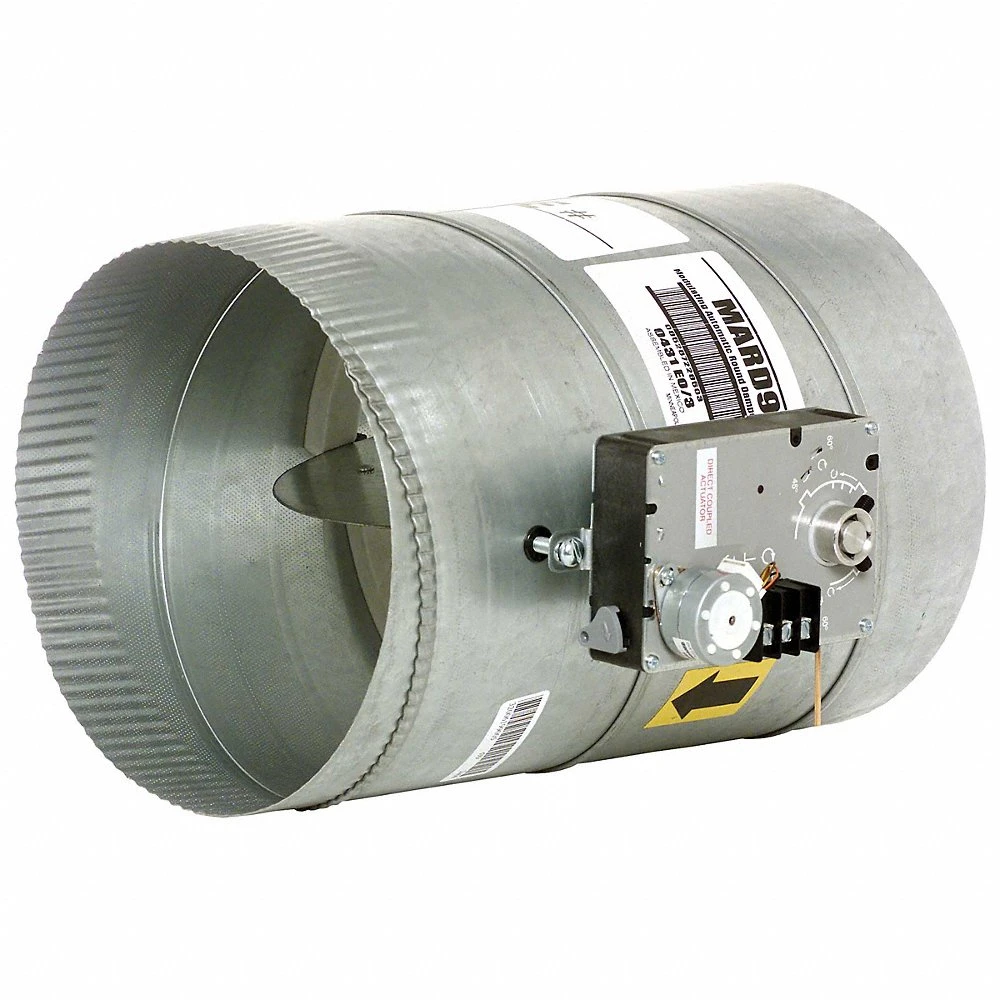

| Item | Round Damper |
| Ambient Temp. Range | +20°F to +125°F |
| Application | Zone Damper Or Bypass Damper , Zoning |
| Blade Type | Not Applicable |
| Closure Velocity Rating | Not Applicable |
| Connection | Screw Terminal , Screw Terminals |
| Counterbalanced | Not Applicable |
| Damper Type | Dynamic |
| Dia. | 12" |
| Diameter | 12" |
| For Duct Shape | Round |
| For Nominal Duct Diameter | 12" |
| For Use With | Forced Air Zone Control Panels And Static Pressure Control |
| Frame Material Thickness | Not Applicable |
| Full Load Amps | 1.8A |
| Motor Included | Yes |
| Output Amps | 1.8 VA |
| Overall Dia. | 12" |
| Overall Height | 14" |
| Overall Length | 13 1/8" |
| Overall Width | 13 1/8" |
| Requires | SPC For Bypass |
| Rotation Angle | 90° |
| Rough Opening Dia. | 12" |
| Rough Opening Length | 12" |
| Rough Opening Shape | Round |
| Rough Opening Width | 12" |
| Switch Action | Not Applicable |
| Terminal Designations | Clockwise, Center Of Rotation, Counter Clockwise |
| Timing (sec.) | 90 sec. |
| Torque | 35 lbs.-in. |
| Type | Modulating Automatic |
| Voltage (ac) | 24V AC |
| Blade Material | Galvanized Steel |
| Damper Application | Zoning |
| Electrical Connection | Hardwired |
| Full Load Current | 1.8A |
| Includes | 24V AC Floating-Control Type Modulating Motor |
| Includes Motor | Yes |
| Minimum Ambient Temperature | 20°F |
| Nameplate Voltage | 24V AC |
| Overall Diameter | 12" |
| Rough Opening Diameter | 12" |
| Standards | CUL, UL LISTED |
| Ship weight (kg) | 3.87 |
| Ship height (cm) | 38.61 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 35.31 |
| HS code | 8481809050 |
| Country of Origin | MX |
| Product | Model | Diameter | Price | |
|---|---|---|---|---|
 |
MARD14 | 14" | €374.86 |
