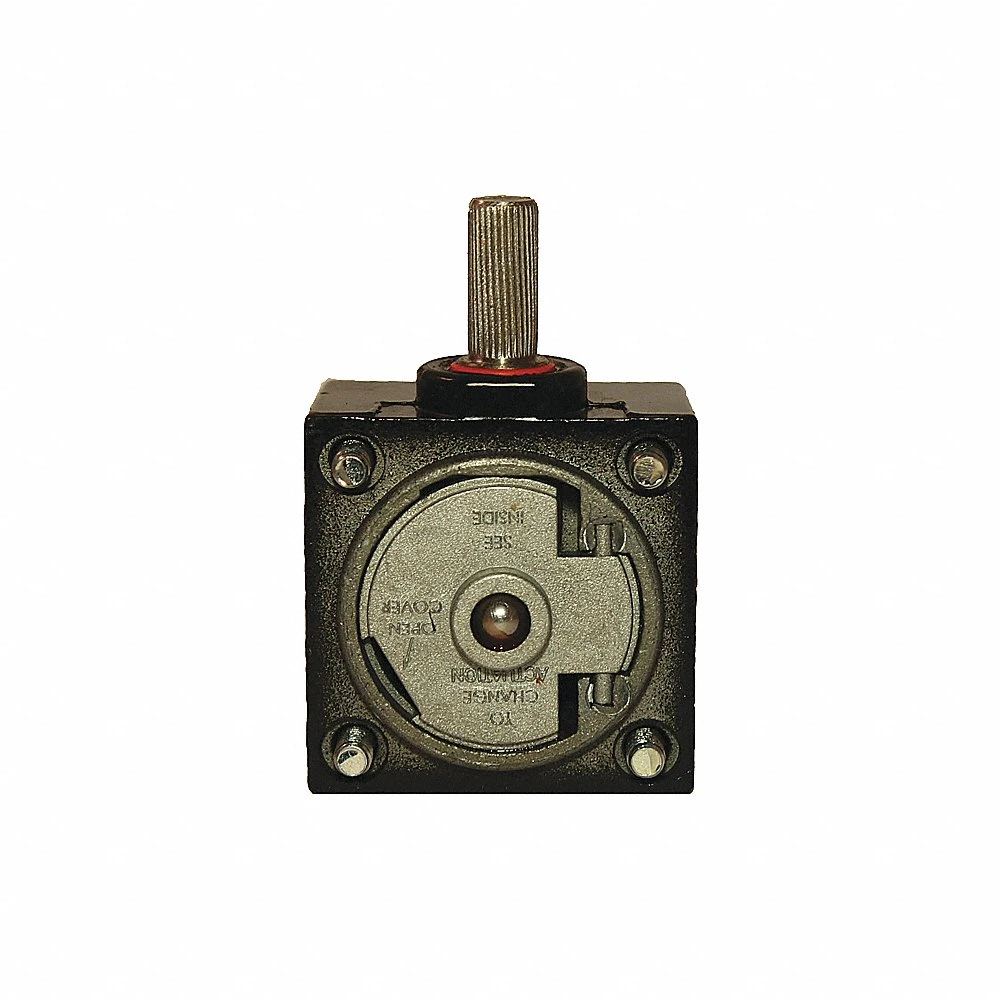

| Item | Limit Switch Head |
| Actuator Length | Not Specified |
| Actuator Location | Side |
| Actuator Style | Rotary |
| Contact Form | Not Applicable |
| Description/special Features | Low Torque Head |
| Differential Travel Length | 7° |
| Ip Rating | Not Rated |
| Movement | CW/CCW |
| Nema Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Operating Force | 1.7 lbs.-in. |
| Operating Temp. | +30°F to +250°F |
| Operating Temp. Range | +30°F to +250°F |
| Over Travel Length | 60° |
| Pre-travel Length | 15° |
| Travel | Pretravel 15 Degrees Max, Overtravel 60 Degrees Min, Differential Travel 7 Degrees Max |
| Compatible With Brand | Honeywell |
| Compatible With Manufacturer Model Number | 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A |
| Compatible With Series | HDLS, LSR |
| Differential Travel | 7° |
| Directional Movement | CCW/CW |
| Display Qty | 1 |
| Features | Low Torque Head |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Operating Temperature - Maximum | 250°F |
| Operating Temperature - Minimum | 30°F |
| Operating Torque | 1.7 lbs.-in. |
| Overtravel | 60° |
| Pretravel | 15° |
| Series | HDLS Series |
| Standards | ROHS |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 5.84 |
| Ship width (cm) | 4.83 |
| HS code | 8536509055 |
| Country of Origin | US |
| Product | Model | Actuator Length | Actuator Location | Amps | Contact Form | Ip Rating | Movement | Nema Rating | Operating Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
201LS1 | 1.5" | Side | 10 | 1NC/1NO, SPDT, Snap Action, Double Break | Not Rated | Pretravel (PT) 20 Degrees max, Overtravel (OT) 30 Degrees min, Differential Travel (DT) 12 Degrees max. | 1, 3, 4, 6, 13 | 3 lb. max. | €502.60 | |
 |
201LS10 | 0.58" to 5.56" | Side | 10 | 1NC/1NO, SPDT, Snap Action, Double Break | Not Rated | Pretravel (PT) 20 Degrees max, Overtravel (OT) 30 Degrees min, Differential Travel (DT) 12 Degrees max. | 1, 3, 4, 6, 13 | 5 oz. max. | €726.78 | |
 |
201LS3 | 1.2" to 3.5" | Side | 10 | 1NC/1NO, SPDT, Snap Action, Double Break | Not Rated | Pretravel (PT) 20 Degrees max, Overtravel (OT) 30 Degrees min, Differential Travel (DT) 12 Degrees max. | 1, 3, 4, 6, 13 | 3 lb. max. | €626.87 | |
|
201LS47 | 0.58" to 5.56" | Side | 10 | 1NC/1NO, SPDT, Snap Action, Double Break | Not Rated | Pretravel (PT) 5 Degrees max, Overtravel (OT) 30 Degrees min, Differential Travel (DT) 4 Degrees max. | 1, 3, 4, 6, 13 | 5 oz. max. | €1,192.15 | |
 |
GLZ1AA | Not Specified | Top | Not Applicable | Not Applicable | 67 | CW and CCW | 1 , 4, 12, 13 | 3.00 in.-lb | €156.84 | |
 |
LSZ1A | Not Specified | Side | Not Applicable | Not Applicable | Not Rated | CW and CCW | 1, 3, 4, 4X, 6, 6P, 13 | 4 in.-lb. | €134.90 | |
 |
LSZ1AB | Not Specified | Side | Not Applicable | Not Applicable | Not Rated | CW and CCW | 1, 3, 4, 4X, 6, 6P | 4.00 in.-lb | €248.58 |
