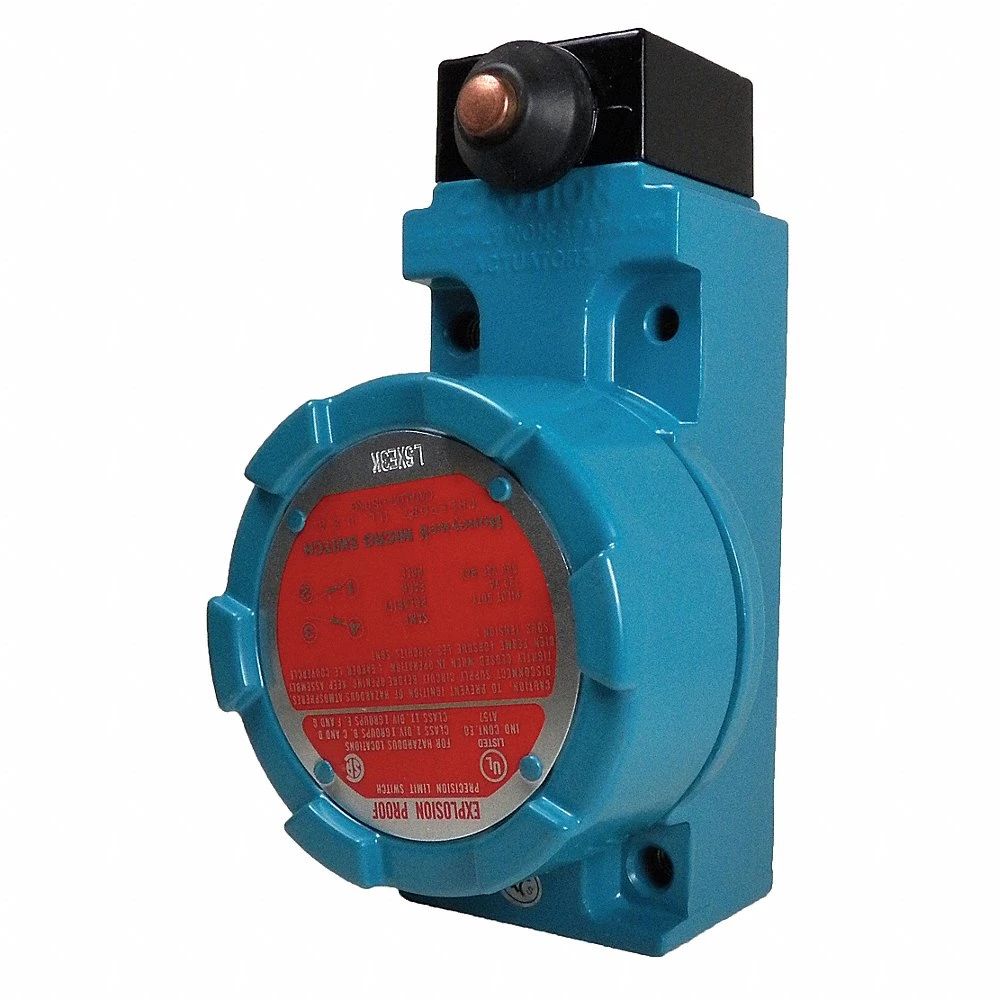

| Item | Explosion Proof Limit Switch |
| Actuator Length | 1.3" |
| Actuator Location | Side |
| Actuator Style | Plunger |
| Amps | 10A |
| Body Material | Aluminum |
| Certification | Class I, DIV. 1, Groups B, C, D, 9, Class 2, DIV. 1, Groups E, F, G |
| Depth | 2.44" |
| Differential Travel Length | 0.045" |
| Electrical Connection | Screw Terminals |
| Height | 5 3/4" |
| Ip Rating | No IP Rating |
| Movement | Linear, Side |
| Nema Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 7, NEMA 13 |
| Operating Force | 6 lbs. |
| Operating Temp. Range | +10°F to +250°F |
| Over Travel Length | 0.19" |
| Pre-travel Length | 0.1" |
| Roller Width | 0.19" |
| Width | 2" |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Body Configuration | Non Plug In |
| Body Depth | 2.44" |
| Body Height | 4.75" |
| Body Material Type | Metallic |
| Body Width | 2" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 10 A @ 250 V |
| Differential Travel | 0.05" |
| Directional Movement | Linear |
| Mounting Hole Diameter | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 29 mm |
| Mounting Hole Vertical Center To Center Distance | 86 mm |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 4, NEMA 6, NEMA 7 |
| Number Of Mounting Holes | 2 |
| Operating Force - Maximum | 6 lbf. |
| Operating Temperature - Maximum | 250°F |
| Operating Temperature - Minimum | 10°F |
| Pretravel | 0.1" |
| Series | LSX Series |
| Standards | CSA, UL LISTED |
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 8.38 |
| HS code | 8536509055 |
| Country of Origin | US |
| Product | Model | Actuator Length | Actuator Location | Actuator Style | Movement | Operating Force | Travel | Wiring Entry | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
LSXA3K | - | Side | Rotary Head, No Lever | CW/CCW | 4 in.-lb. | Pretravel (PT) 15 Degrees max; Overtravel (OT) 60 Degrees min; Differential Travel (DT) 5 Degrees max | 1/2"-14 NPT Conduit | €575.73 | |
|
LSXA4K | - | Side | Rotary Head, No Lever | CW/CCW | 4 in.-lb. | Pretravel (PT) 15 Degrees max; Overtravel (OT) 60 Degrees min; Differential Travel (DT) 5 Degrees max | 3/4"-14 NPT Conduit | €1,253.64 | |
 |
LSXC3K | 2.31" | Top | Plunger | Linear | 4 lb. | Pretravel (PT) 0.07 in. max; Overtravel (OT) 0.19 in. min; Differential Travel (DT) 0.015 in. max | 1/2"-14 NPT Conduit | €639.39 | |
 |
LSXD3K | 2.7" | Top | Plunger, Roller | Linear | 4 lb. | Pretravel (PT) 0.07 in. max; Overtravel (OT) 0.19 in. min; Differential Travel (DT) 0.015 in. max | 1/2"-14 NPT Conduit | €1,433.89 | |
|
LSXH3K | - | Side | Rotary Head, No Lever | CW/CCW, Low Diff Travel, Low Torque | 1.7 in.-lb. | Pretravel (PT) 9 Degrees max; Overtravel (OT) 66 Degrees min; Differential Travel (DT) 3 Degrees max | 1/2"-14 NPT Conduit | €1,339.32 | |
 |
LSXJ3K-7A | 6" | Top | Wobble Stick | Wobble | 10 oz. | Pretravel (PT) 1 in. max | 1/2"-14 NPT Conduit | €1,294.07 |
