HONEYWELL

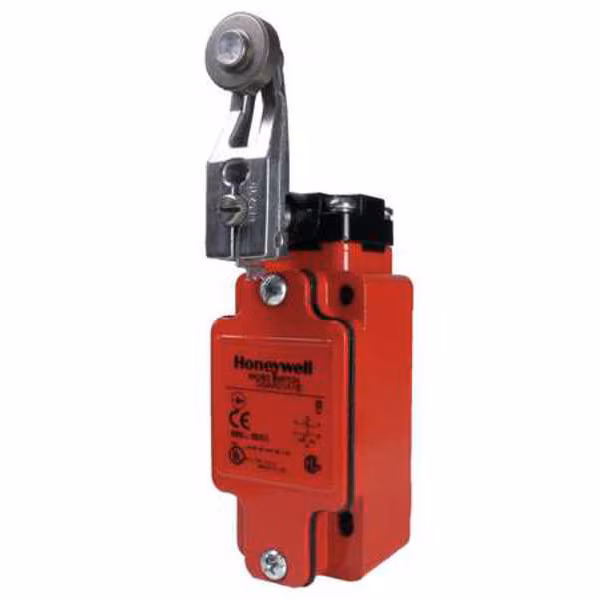

HONEYWELL GSAA01A1B Safety Interlock Switch, AC Contact Rating: 10 A @ 600 V | AA3WKV 11X224

HONEYWELL GSAA01A1B Safety Interlock Switch, AC Contact Rating: 10 A @ 600 V

In Stock
Item: AA3WKV Model: GSAA01A1BCross Ref: 11X224
Check Availability
See variants (5)

Get it by May 27, Monday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€343.32 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemSafety Interlock Switch
AC Contact Rating100mA to 10A @ 600V
Actuator Length1.5"
Body MaterialZinc Die-Cast
Conduit Size1/2" NPT
Connection Type30" x 48"
Contact Form1NO, 1NC, Direct Opening, Snap Action, Single Pole
Contact MaterialSilver
DC Contact Rating100mA to 10A @ 250V
Depth1.65"
Differential Travel12 Degrees
Height3.23"
IP Rating67
MovementPre-Travel - 20 mm, Positive Opening - 32 mm, Full Travel - 85 Degrees
NEMA Rating1, 4, 12, 13
Operating Force2.9 in.-lb. Max
Operating Temp. Range-13 Degrees to 185 Degrees F
Over Travel85 Degrees
Positive Travel32mm
Pre-travel20mm
RotationCW/CCW
StyleSide Rotary with Fixed Lever
Width1.65"

Shipping Info:

Ship weight (kg) 0.52
Ship height (cm)5.59
Ship length (cm)15.49
Ship width (cm)7.62
HS code8536509055
Country of OriginUS

Product Details:

  • Designed in accordance with IEC certifications to shut off power, control personnel access and prevent a machine from starting when the guard is open
  • Snap-action design facilitates various wiring combinations along with mounting interchangeability
  • Rugged zinc die-cast metal housing makes it ideal for both indoor and outdoor applications where IP- or NEMA-rated enclosure sealing is required
  • Features a red body colour for better visibility, even under dim-lit conditions and can operate at a temperature range of -15 to 185 deg F
  • UL-listed, CSA-certified and CE-approved

Product Variants

ProductModelNEMA RatingItemCable LengthContact FormContact MaterialDC Contact RatingDepthDifferential TravelPrice
HONEYWELL FF5-21-DC-03 Interlock Switch 2nc/2no Abs | AA3RHD 11T812 FF5-21-DC-03-Safety Interlock Switch9.8ft.2NC/2NO-0.3A @ 24V--€299.26
HONEYWELL FF5-21-DC-10 Interlock Switch 2nc/1no Abs | AA3RHF 11T814 FF5-21-DC-10-Safety Interlock Switch32.8ft.2NC/1NO-0.3A @ 24V--€453.78
HONEYWELL GKEA01L Safety Interlock 1NO 1NC 10A@600V | AA3RJD 11T869 GKEA01L1, 12, 13Dual Entry Key Operated Safety Interlock Switch-1NO, 1NC, Direct Opening, Snap ActionSilver100mA to 10A @ 250V1.2"-€157.26
HONEYWELL GSAA01B Safety Interlock Switch 1no 1nc 10a@600v | AA3WKX 11X226 GSAA01B1, 4, 12, 13Safety Interlock Switch-1NO, 1NC, Direct Opening, Snap Action, Single PoleSilver100mA to 10A @ 250V1.65"11mm€305.97
HONEYWELL GSAA22C Safety Interlock Switch 2no 2nc 10a@600v | AA3WLE 11X240 GSAA22C1, 4, 12, 13Safety Interlock Switch-2NO, 2NC, Direct Opening, Snap Action, Double PoleGold Plated100mA to 10A @ 250V1.65"12mm€811.68
