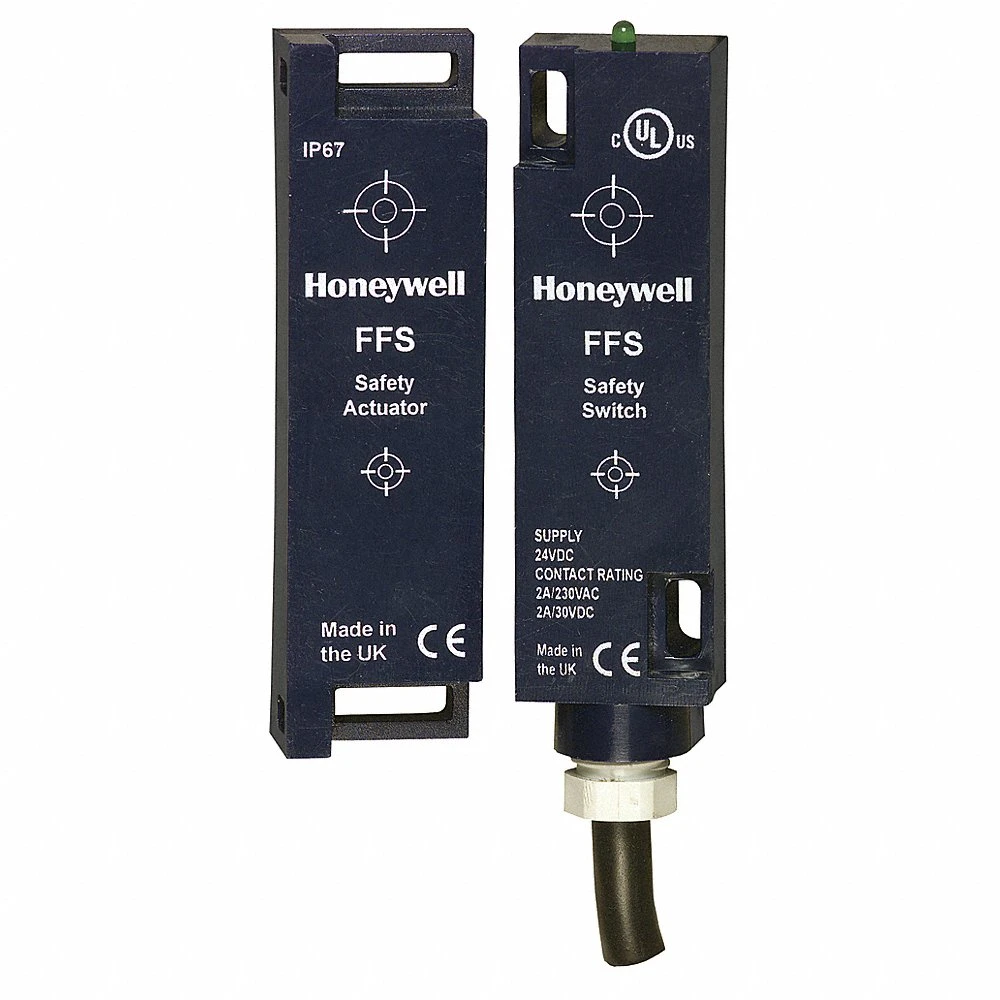

| Item | Safety Interlock Switch |
| Ac Contact Rating | 2A @ 230V |
| Actuator Depth | 0.67" |
| Actuator Height | 3.43" |
| Actuator Width | 0.94" |
| Body Material | ABS |
| Cable Length | 32.8 ft. |
| Dc Contact Rating | 2A @30V |
| Off Sensing Distance | 0.47" |
| On Sensing Distance | 0.28" |
| Operating Temp. Range | +14°F to +131°F |
| Switch Depth | 3/4" |
| Switch Height | 3.43" |
| Termination Type | Bare Wire |
| Body Material Type | Non-Metallic |
| Body Style | Rectangular |
| Components Included | Actuator |
| Contact Form | 1NO, 1NC, 2NC |
| Indicating Light | LED |
| Ip Rating | IP67 |
| Magnet Actuator Depth | 0.67" |
| Magnet Actuator Height | 3.43" |
| Magnet Actuator Width | 0.94" |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Overall Depth | 0.75" |
| Overall Height | 3.43" |
| Overall Width | 0.94" |
| Series | FFS Series |
| Standards | CE, UL LISTED |
| Switch Type | Coded Switch |
| Switch Width | 0.75" |
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 20.32 |
| HS code | 8536509065 |
| Country of Origin | GB |
| Product | Model | Actuator Depth | Actuator Height | Actuator Width | Cable Length | Off Sensing Distance | On Sensing Distance | Switch Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
FF6-11-AC-03 | 0.75" | 3.25" | 0.75" | 9.8ft. | 1.18" | 0.4" | 3.25" | €615.16 |
