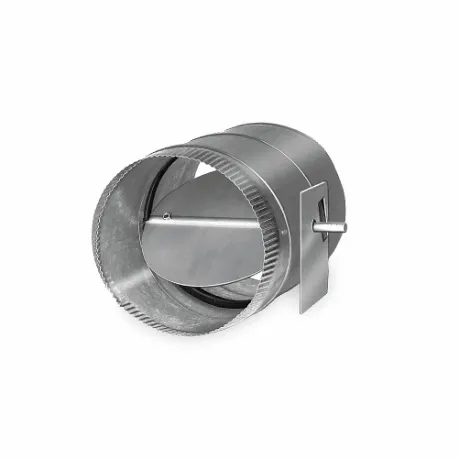

HONEYWELL D690A1036 Round Damper, 15 1/2 Inch Length, 12 Inch Height, 13 Inch Width, Single Flange
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Round Damper |
| Acma Leakage Class | 3 |
| Application | Control |
| Blade Material | Stainless Steel |
| Blade Orientation | Parallel Blades |
| Blade Type | Flat Blade |
| Connection Type | Press Fit |
| Damper Finish | Plain |
| Flange Type | Single Flange |
| For Duct Shape | Round |
| For Nominal Duct Diameter | 12" |
| Frame Material | Galvanized Steel |
| Frame Material Thickness | 22 ga. |
| Includes | Mounting Hardware, Short Shaft Adaptor |
| Max. Air Velocity | 2500 FPM |
| Mounting Style | Surface |
| Number Of Panels | 3 |
| Overall Dia. | 12" |
| Overall Height | 12" |
| Overall Length | 15 1/2" |
| Overall Width | 13" |
| Pressure Drop @ 1000 Fpm | 0.035 in. wg |
| Rough Opening Dia. | 12" |
| Rough Opening Length | 12" |
| Rough Opening Shape | Round |
| Rough Opening Width | 12" |
| Single Acting/double Acting | Single Acting |
| Switch Action | Normally Closed |
| Type | Static |
| Damper Application | Control |
| Damper Type | Static |
| Maximum Air Velocity | 2500 FPM |
| Overall Diameter | 12" |
| Pressure Drop @ 1000 Fpm (amca 5.2) | 0.035 in. wg |
| Rough Opening Diameter | 12" |
| Ship weight (kg) | 3.38 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 33.02 |
| Country of Origin | US |
