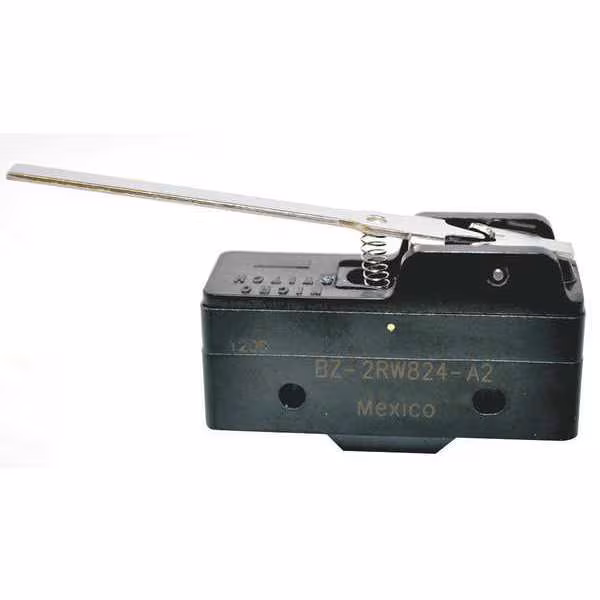

| Item | Large Basic Snap Switch |
| Actuation Type | Long Lever |
| Actuator Length | 2 1/2" |
| Actuator Type | Long Lever |
| Actuator Type - Snap Action Switch | Hinge, Lever, Long |
| Amps Rating | 15A |
| Body Material | Phenolic |
| Connection | Screw Terminal |
| Contact Form | SPDT |
| Depth | 0.7" |
| Depth - Snap Action Switch | 0.7" |
| Differential Travel | 0.007" , 0.18 mm |
| Electrical Connection - Snap Action Switch | Screw |
| Head | Lever |
| Head Action | Spring Return, Standard |
| Height | 1" |
| Height - Snap Action Switch | 1" |
| Length | 2" |
| Lever Actuator Length - Snap Action Switch | 2 1/2" |
| Max. Pretravel | 0.175" |
| Operating Force | 0.7N |
| Operating Temp. | -67°F to +185°F |
| Operator Configuration | Straight |
| Over Travel | 5.56 mm |
| Release Force | 0.494 oz. |
| Terminal Type | Screw |
| Voltage | 250V AC |
| Watertight | No |
| Ac Contact Rating | 15A @ 250V |
| Actuator Style | Lever |
| Body Depth | 0.7" |
| Body Height | 1" |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 15 A @ 240 V |
| Differential Travel - Maximum | 0.007" |
| Display Qty | 1 |
| Electrical Connection | Screw |
| Lever Actuator Length | 2.5" |
| Mounting Hole Diameter | 1/8" |
| Operating Force - Maximum | 2.5 ozf |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -67°F |
| Overall Depth | 0.7" |
| Overall Height | 1" |
| Overall Width | 1.94" |
| Pre-travel | 0.175" |
| Series | BZ Series |
| Standards | CSA, ENEC, UL LISTED |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 15.75 |
| Ship width (cm) | 12.45 |
| HS code | 8536509055 |
| Country of Origin | MX |
