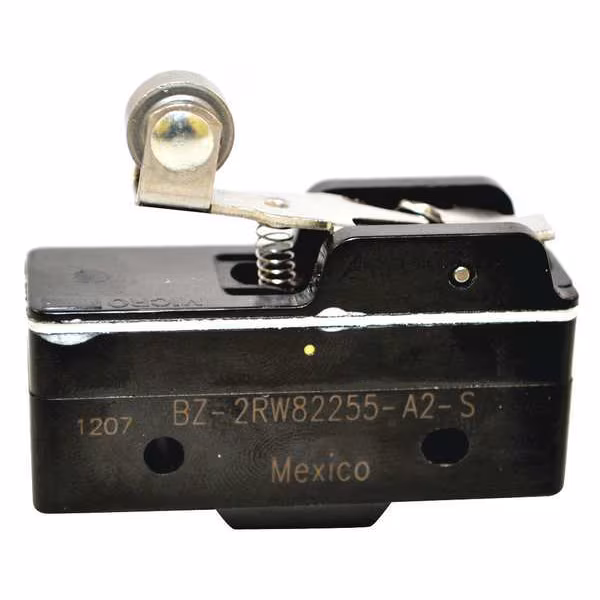

| Item | Large Basic Snap Switch |
| Actuation Type | Short Roller Lever |
| Actuator Length | 1.05" |
| Actuator Type | Short Roller Lever |
| Actuator Type - Snap Action Switch | Lever, Roller, Short |
| Amps Rating | 15A |
| Body Material | General Purpose Phenolic |
| Connection | Screw Terminal |
| Contact Form | SPDT |
| Depth | 0.7" |
| Depth - Snap Action Switch | 0.7" |
| Differential Travel | 0.003" to 0.02" |
| Electrical Connection - Snap Action Switch | Screw |
| Head | Roller Lever |
| Head Action | Spring Return, Standard |
| Height | 1" |
| Height - Snap Action Switch | 1" |
| Length | 2" |
| Lever Actuator Length - Snap Action Switch | 1.05" |
| Max. Pretravel | 0.078" |
| Operating Force | 6 oz. |
| Operating Temp. | -67°F to +185°F |
| Operator Configuration | Sealed |
| Over Travel | 0.094" |
| Release Force | 1.5 oz. |
| Terminal Type | Screw |
| Voltage | 250V AC |
| Watertight | No |
| Ac Contact Rating | 15A @ 240V |
| Actuator Style | Roller Lever |
| Body Depth | 0.7" |
| Body Height | 1" |
| Body Width | 2" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 15 A @ 240 V |
| Differential Travel - Maximum | 0.02" |
| Differential Travel - Minimum | 0.003" |
| Display Qty | 1 |
| Electrical Connection | Screw |
| Lever Actuator Length | 1.05" |
| Mounting Hole Diameter | 1/8" |
| Operating Force - Maximum | 6 ozf |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -67°F |
| Overall Depth | 0.7" |
| Overall Height | 1" |
| Overall Width | 2" |
| Pre-travel | 0.078" |
| Series | BZ Series |
| Standards | CE, CSA, ENEC, UKCA, UL LISTED |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 2.79 |
| HS code | 8536509055 |
| Country of Origin | MX |
| Product | Model | Actuator Length | Price | |
|---|---|---|---|---|
 |
BZ-2RW82212-A2 | 1.05" | €77.79 | |
 |
BZ-2RW8225551-A2 | 1.03" | €37.58 |
