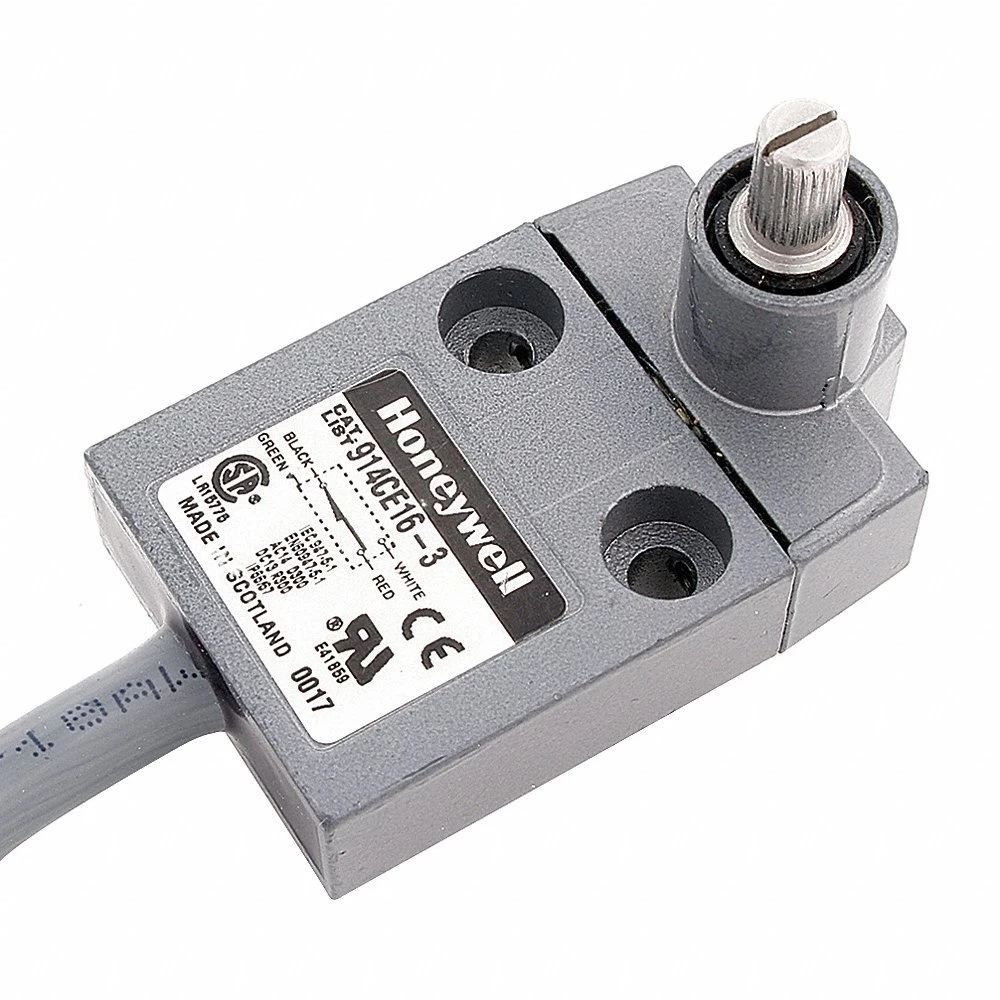

| Item | Miniature Enclosed Limit Switch |
| Actuator Location | Side |
| Actuator Style | No Lever, Rotary Head |
| Amps | 5A |
| Body Material | Die Cast Zinc |
| Cable Length | 3 ft. |
| Depth | 0.63" |
| Differential Travel Length | 3° |
| Electrical Connection | 3 ft. Cable |
| Height | 1.93" |
| Movement | CCW/CW |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 6P, NEMA 13 |
| Operating Temp. Range | +35°F to +160°F |
| Over Travel Length | 40° |
| Pre-travel Length | 30° |
| Voltage | 250V AC |
| Width | 1.58" |
| Ac Contact Rating | 5A @ 240V |
| Actuator Type | Lever Rod |
| Body Configuration | Non Plug In |
| Body Depth | 0.63" |
| Body Height | 1.73" |
| Body Width | 1.57" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | SPDT-1NO/1NC |
| Dc Contact Rating | Not Rated |
| Differential Travel | 3° |
| Directional Movement | CCW/CW |
| Environments & Applications | Submersible |
| Ip Rating | IP65, IP66, IP67 |
| Mounting Hole Diameter | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 25 mm |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 6P, NEMA 13 |
| Number Of Mounting Holes | 2 |
| Operating Temperature - Maximum | 221°F |
| Operating Temperature - Minimum | 32°F |
| Operating Torque - Maximum | 3 lbs.-in. |
| Overtravel | 40° |
| Pretravel | 30° |
| Series | 914CE Series |
| Standards | CE, CURUS |
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 24.64 |
| Ship width (cm) | 20.32 |
| HS code | 8536509055 |
| Country of Origin | GB |
| Product | Model | Actuator Length | Actuator Location | Actuator Style | Electrical Connection | Movement | Operating Force | Travel | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
914CE1-3 | 0.39" | Top | Plunger | 3 ft. Cable | Release Force: 0.99 lb Max | 2.65 lb. | Pretravel (PT) 0.04 in +/- 0.02 in; Overtravel (OT) 0.118 in min; Differential Travel (DT); 0.004 in max | €195.31 | |
|
914CE1-6 | 0.618" | Top | Plunger | 6 ft. Cable | Release Force: 0.99 lb Max | 2.65 lb. | Pretravel (PT) 0.04 in +/- 0.02 in; Overtravel (OT) 0.118 in min; Differential Travel (DT); 0.004 in max | €295.85 | |
 |
914CE18-3 | 0.618" | Top | Plunger, Boot Sealed | 3 ft. Cable | Release Force: 0.99 lb Max | 5.06 lb. | Pretravel (PT) 0.04 in +/- 0.02 in; Overtravel (OT) 0.118 in min; Differential Travel (DT); 0.004 in max | €226.71 | |
|
914CE1-3A | 0.618" | Top | Plunger | 3 ft. Cable, Side Exit | Release Force: 0.99 lb Max | 2.65 lb. | Pretravel (PT) 0.04 in +/- 0.02 in; Overtravel (OT) 0.118 in min; Differential Travel (DT); 0.004 in max | €188.78 | |
 |
914CE16-6 | - | Side | Rotary Head, No Lever | 6 ft. Cable | CW/CCW | 2.66 in. lb. | Pretravel (PT) 30 Degrees max; Overtravel (OT) 40 Degrees min; Differential Travel (DT) 3 Degrees | €260.19 | |
|
914CE16-9 | - | Side | Rotary Head, No Lever | 9 ft. Cable | CW/CCW | 2.66 in. lb. | Pretravel (PT) 30 Degrees max; Overtravel (OT) 40 Degrees min; Differential Travel (DT) 3 Degrees | €484.00 | |
|
914CE18-6 | 0.618" | Top | Plunger, Boot Sealed | 6 ft. Cable | Release Force: 0.99 lb Max | 5.06 lb. | Pretravel (PT) 0.04 in +/- 0.02 in; Overtravel (OT) 0.118 in min; Differential Travel (DT); 0.004 in max | €304.41 |
