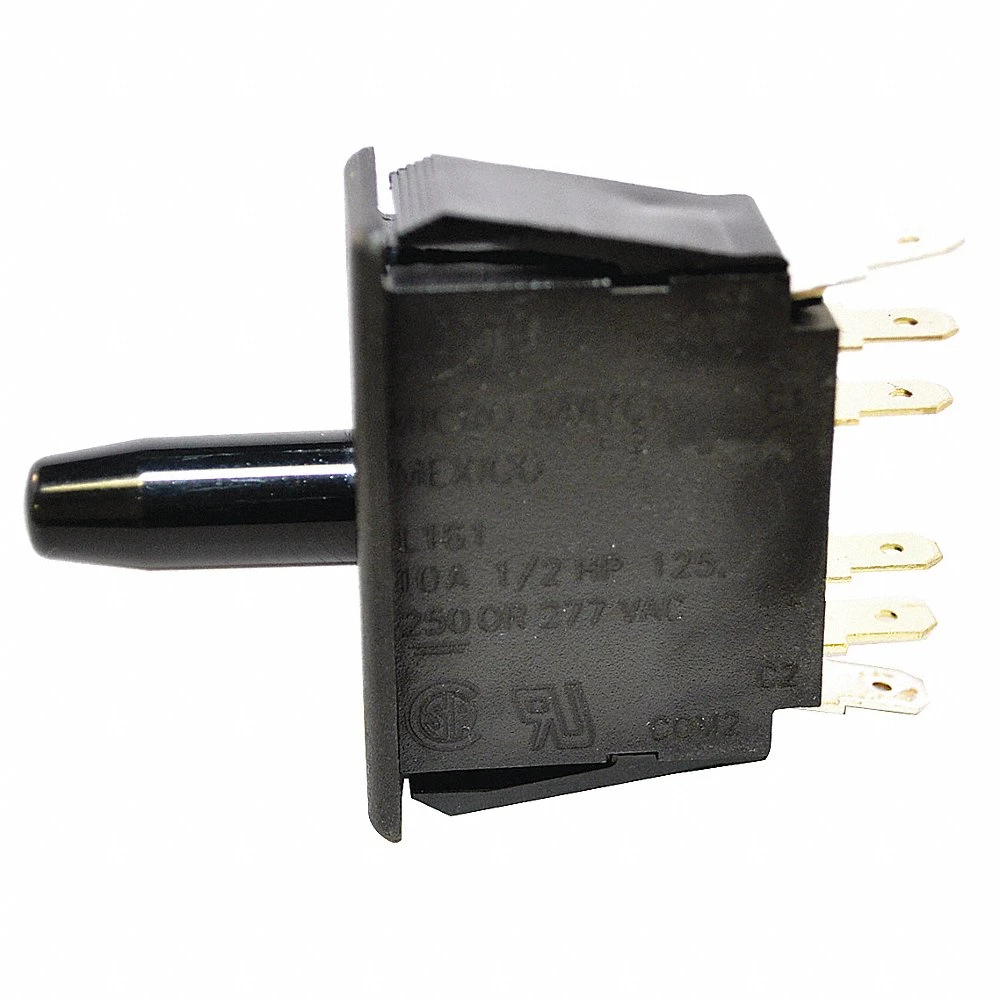

| Item | Panel Mount Precision Snap Switch |
| Actuation Type | Bullet Nose Plunger |
| Actuator Length | 1.94" |
| Actuator Type | Bullet Nose Plunger |
| Actuator Type - Snap Action Switch | Plunger |
| Amps Rating | 10A |
| Body Material | Polyester |
| Contact Form | DPDT |
| Depth | 0.55" |
| Depth - Snap Action Switch | 0.55" |
| Differential Travel | 0.045" |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Height | 1 3/25" |
| Height - Snap Action Switch | 1 3/25" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Max. Pretravel | 0.11" |
| Mounting Dimension | 1.45" x 0.55" |
| Operating Force | 24 oz. |
| Operating Temp. | -35°F to +180°F |
| Over Travel | 2/5" |
| Release Force | 6 oz. |
| Snap Action Switch Height | 1.45" x 0.55" |
| Snap Action Switch Width | 0.55" |
| Terminal Type | Quick Connect |
| Voltage | 277V AC |
| Watertight | No |
| Ac Contact Rating | 10A @ 240V |
| Actuator Style | Plunger |
| Body Depth | 1.03" |
| Body Height | 1.32" |
| Body Width | 0.52" |
| Differential Travel - Maximum | 0.045" |
| Display Qty | 1 |
| Electrical Connection | Quick Connect |
| Operating Force - Maximum | 24 ozf |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | -35°F |
| Overall Depth | 0.55" |
| Overall Height | 1 3/25" |
| Pre-travel | 0.11" |
| Series | DM Series |
| Standards | CSA, UL LISTED |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 10.92 |
| HS code | 8536509055 |
| Country of Origin | MX |
| Product | Model | Actuator Length | Contact Form | Max. Pretravel | Mounting Dimension | Operating Force | Over Travel | Release Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1DM1 | 0.96" | SPDT | 0.13" | 1.12 x 0.55" Panel Hole | 15 oz. | 0.375" | 3.00 oz. | €15.99 |
