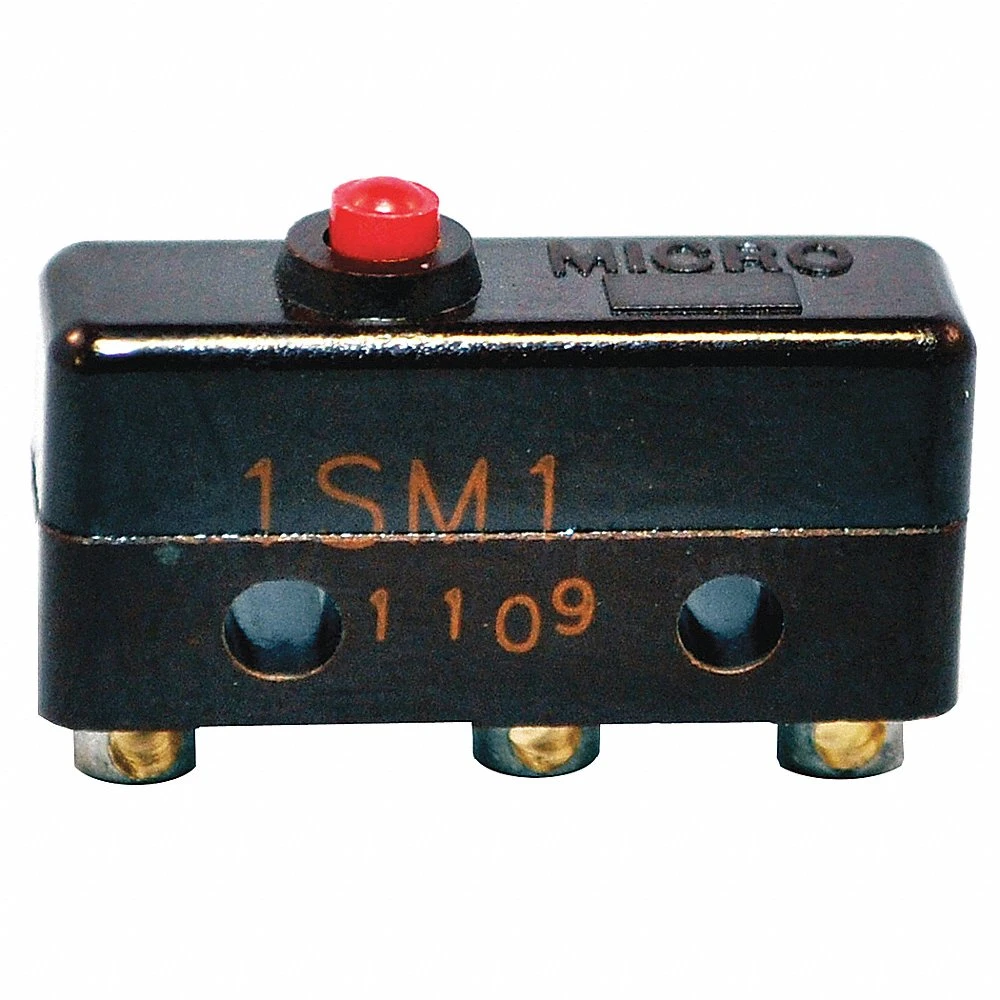

| Item | Sub-Miniature Snap Switch |
| Actuation Type | Pin Plunger |
| Actuator Length | 0.8" |
| Actuator Type | Pin Plunger |
| Actuator Type - Snap Action Switch | Pin, Plunger |
| Amps Rating | 5A |
| Body Material | General Purpose Phenolic |
| Contact Form | SPDT |
| Depth | 1/4" |
| Depth - Snap Action Switch | 1/4" |
| Differential Travel | 0.004" |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Height | 1/2" |
| Height - Snap Action Switch | 1/2" |
| Length | 4/5" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Max. Pretravel | 0.03" |
| Operating Force | 3 oz. to 5 oz. |
| Operating Temp. | -65°F to +250°F |
| Over Travel | 0.005" |
| Release Force | 1 oz. |
| Terminal Type | Solder Lug |
| Voltage | 250V AC |
| Watertight | No |
| Ac Contact Rating | 5A @ 240V |
| Actuator Style | Plunger |
| Body Depth | 0.25" |
| Body Height | 0.5" |
| Body Width | 0.8" |
| Center Mounting Hole Distance | 0.38" |
| Differential Travel - Maximum | 0.004" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Operating Force - Maximum | 5 ozf |
| Operating Force - Minimum | 3 ozf |
| Operating Temperature - Maximum | 250°F |
| Operating Temperature - Minimum | -65°F |
| Overall Depth | 0.25" |
| Overall Height | 1/2" |
| Overall Width | 4/5" |
| Pre-travel | 0.03" |
| Series | SM Series |
| Standards | CE 61058-1, CSA LR41372, ENEC, UL E12252 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.52 |
| HS code | 8536509055 |
| Country of Origin | MX |
| Product | Model | Max. Pretravel | Operating Temp. Range | Terminal Type | Price | |
|---|---|---|---|---|---|---|
 |
11SM1-T | 0.02" | -67 Degrees to 257 Degrees F | Solder Turret | €18.43 |
