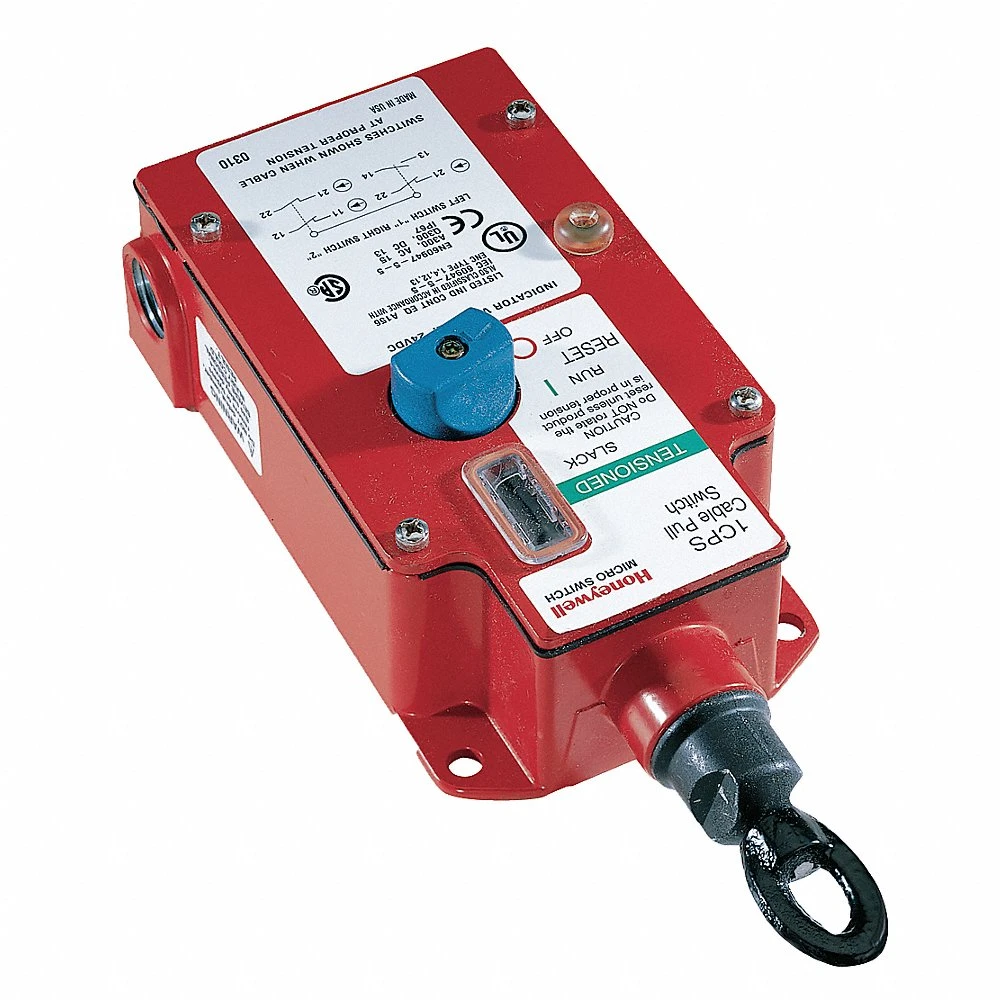

| Item | Emergency Cable Pull Switch |
| Ac Contact Rating | 10A |
| Case Material | Die Cast Zinc , Zinc Die Cast |
| Contact Rating | 10A |
| Dc Contact Rating | 2.5A |
| Depth | 2.57" |
| Indicator | No |
| Length | 10.62" |
| Length (straight Wireway) | 10.62" |
| Max. Cable Span | 250 ft. |
| Min. Amps | 10 mA to 50A |
| Mounting Style | Single End |
| Nema Rating | NEMA 1, NEMA 4, NEMA 12, NEMA 13 |
| Operating Force | 3 lbs. to 5 lbs. |
| Reset | Rotary Knob |
| Switch Function | Maintained |
| Switching Ability | Single Cable |
| Thermal Amperage | 10A |
| Width | 3.9" |
| Wiring Entry | 1/2" NPT |
| Action | Maintained |
| Cable Connection Location | Left or Right |
| Cable Span - Maximum | 250 ft. |
| Contact Form | 2NO/2NC |
| Contact Material | Silver Alloy |
| Current | 10A |
| Display Qty | 1 |
| Ip Rating | IP67 |
| Nema Enclosure Rating | NEMA 1, NEMA 4, NEMA 12, NEMA 13 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 2.57" |
| Overall Width | 3.9" |
| Product Type | Single Ended |
| Pull Force | 40 lbs. |
| Series | 1CPS Series |
| Standards | CE, CSA, UL LISTED |
| Ship weight (kg) | 2.07 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 33.53 |
| Ship width (cm) | 21.34 |
| HS code | 8536509055 |
| Country of Origin | US |
| Product | Model | Depth | Indicator | Length | Min. Current | Mounting Style | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1CPSA2A | 2.57" | 24 VDC Red LED | 10.62" | 50 mA to 10 A (Thermal) | Single End | 3.9" | €1,138.76 | |
|
1CPSA2B | 2.57" | 120 VAC Red LED | 10.62" | 50 mA to 10 A (Thermal) | Single End | 3.9" | €918.57 | |
|
1CPSA6A | 2.57" | 24 VDC Red LED | 10.62" | 10 uA to 50 mA Low Energy | Single End | 3.9" | €1,220.68 | |
 |
2CPSA1A1 | 3.66" | No | 12.75" | 10 uA to 50 mA Low Energy | Double End | 12.75" | €1,411.85 | |
 |
2CPSA1A1B | 3.66" | 120 VAC Red Multi-Cluster LED | 12.75" | 10 uA to 50 mA Low Energy | Double End | 12.75" | €1,915.44 | |
 |
2CPSA1A2B | 3.66" | 120 VAC Red Multi-Cluster LED | 9.63" | 10 uA to 50 mA Low Energy | Double End | 9.63" | €2,151.37 | |
|
2CPSA2A1A | 3.66" | 24 VDC Red Multi-Cluster LED | 12.75" | 10 uA to 50 mA Low Energy | Double End | 12.75" | €2,547.20 |
