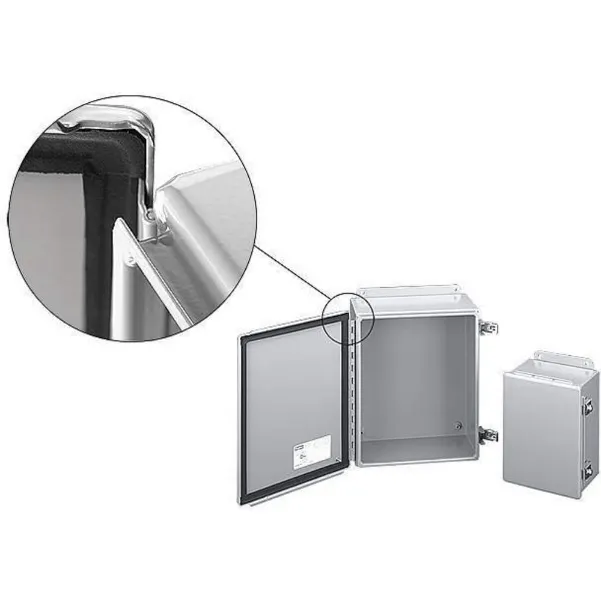

| Item | Junction Box Enclosure |
| Basic Material | Metallic |
| Color | Gray |
| Cover Type | Hinged |
| Enclosure Cover Features | Plated Latches |
| Enclosure Height | 14" |
| Enclosure Material | Carbon Steel |
| Enclosure Width | 12" |
| Gasket | Neoprene |
| Gasket Material | Neoprene |
| Knockouts / No Knockouts | No Knockouts |
| Metal Gauge | 14 ga., 16 ga. |
| Mounting | Wall |
| Body Material Thickness | 16 ga. |
| Closure Method | Quick Release Latch |
| Compatible Panel Model Number | A14P12, A14P12G |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Environment | Dust Tight |
| Finish | Powder Coated |
| Ip Rating | IP65 |
| Knockouts | Not Included |
| Mounting Type | Wall |
| Nema Enclosure Rating | NEMA 12, NEMA 13 |
| Nominal Depth | 7" |
| Nominal Height | 14" |
| Nominal Width | 12" |
| Overall Depth | 6.75" |
| Overall Height | 14" |
| Overall Width | 12" |
| Panel Height | 12.75" |
| Panel Width | 10.88" |
| Product Type | Continuous Hinge Enclosure |
| Standards | CSA, FILE NO 42184, TYPE 12, 13, CUL LISTED PER CSA C22.2 NO 94, FILE NO E27567, FILE NO E61997, IEC 60529, NEMA/EEMAC TYPE 12, 13, UL 50, 50E LISTED, UL 508A LISTED |
| Ship weight (kg) | 7.22 |
| Ship height (cm) | 41.61 |
| Ship length (cm) | 38.43 |
| Ship width (cm) | 14.3 |
| HS code | 8536908030 |
| Country of Origin | US |
| Model | Depth | Height | Interior Panel | Width | Price | |
|---|---|---|---|---|---|---|
| A604CHFTC | 4.75" | 6" | 32FR89 | 4" | €162.00 | |
| A806CHFTC | 4.75" | 8" | 32FR93 | 6" | €210.64 | |
| A1008CHFTC | 4.75" | 10" | 32FR67 | 8" | €255.55 | |
| A1210CHFTC | 5.75" | 12" | 32FR63 | 10" | €347.08 | |
| A1614CHFTC | 6.75" | 16" | 32FR69 | 14" | €447.20 |
