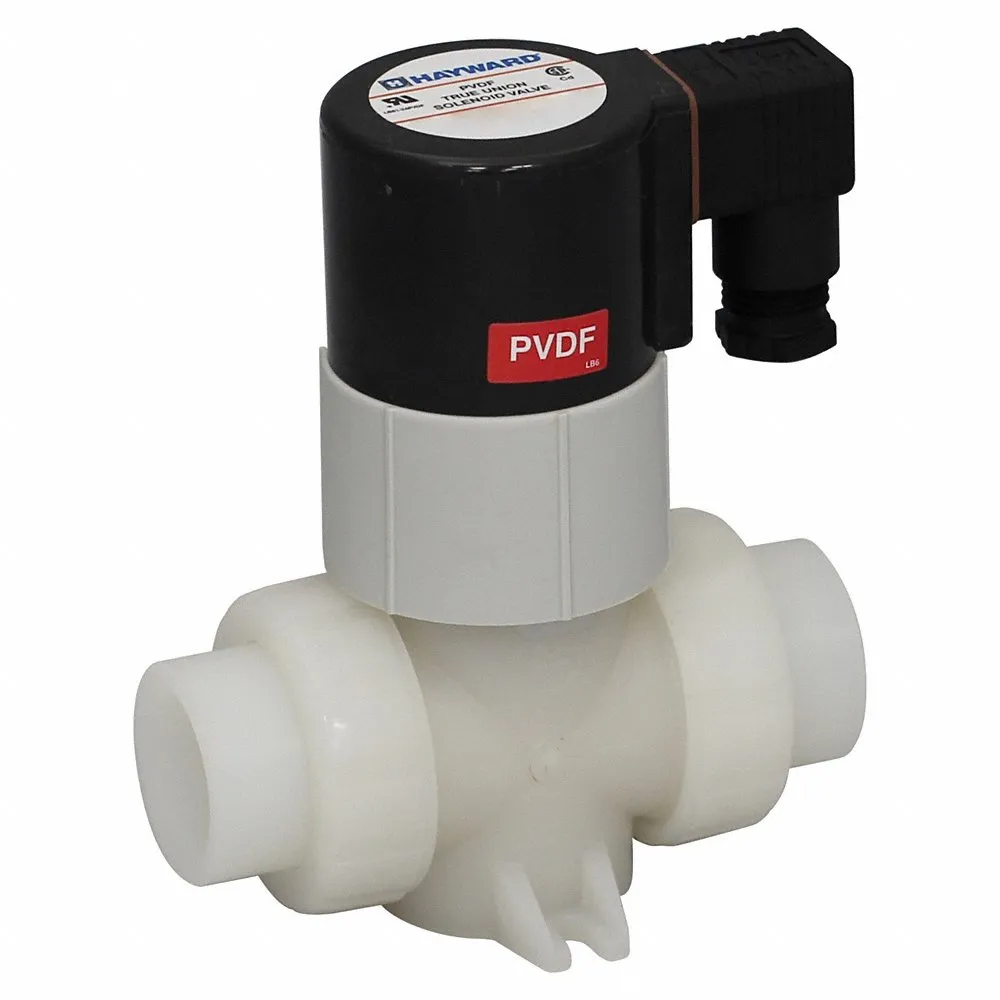

HAYWARD SV50050SV220A Natural Pvdf Solenoid Valve With Fpm O-Rings, 220Vac Coil, Socket Fusion Ends
€950.97 /unit
Request a Quote
Payment
Payment
| Item | Valve |
| Body Material | PVDF |
| Coefficient Of Volume | 2.3 |
| Electrical Connection | 1/2" Conduit, SJ-Type Cord |
| Flow Rate | 3.8 GPM |
| Max. Operating Pressure Differential Water | 90 psi |
| Min. Operating Pressure Differential | 0 psi |
| Operation | Socket Fusion |
| Overall Height | 6 2/5" |
| Overall Length | 5" |
| Pipe Size | 1/2" |
| Seal Material | FPM |
| Valve Configuration | Normally Closed |
| Voltage | 120V AC |
| Wattage | 21.6 W |
| Coefficient Of Volume (cv) | 2.3 |
| Coil Enclosure | Watertight, Without Junction Box |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit, SJ Type Cord |
| For Media | Water |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | IPS |
| Max. Airflow | 3.8 GPM |
| Max. Ambient Temperature | 240°F |
| Max. Fluid Temperature | 200°F |
| Max. Operating Pressure Differential - Air/inert Gas | Not Rated |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 90 psi |
| Min. Ambient Temperature | 10°F |
| Min. Fluid Temperature | 120°F |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | 4 |
| Nominal Pipe Size | 1/2" |
| Operating Environment | Corrosive, Indoor, Outdoor |
| Operation Type | Direct Acting |
| Orifice Diameter | 3/8" |
| Outlet Connection Type | IPS |
| Standards | CSA, UL LISTED |
| Valve Body Style | Straight |
| Valve Type | Inline Single |
| Valve Ways | 2-Way |
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 16.27 |
| Ship length (cm) | 12.7 |
| Country of Origin | US |
