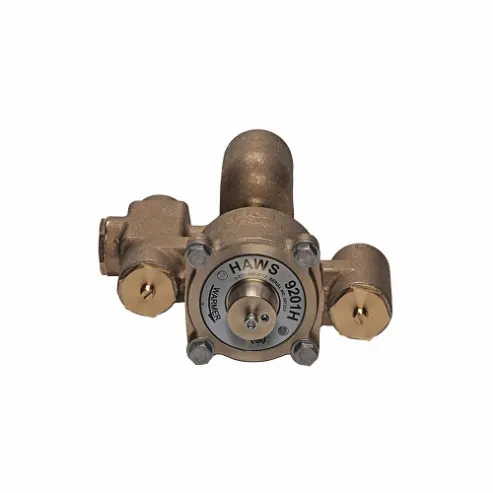

| Item | Emergency Mixing Valve |
| Color | Yellow |
| Depth | 8" |
| Features | Deposits Resistant, Flow Range Of 1 To 31 Gpm (117.3 L), Mixing Chamber, Shuttle Design |
| Fits Brand | Haws |
| For Equipment Type | Eyewash, Shower |
| For Use With | Eyewashes, Showers |
| Height | 8" |
| Inlet Pipe Gender | Female |
| Inlet Pipe Size | 1" |
| Length | 7" |
| Material | Lead Free Brass |
| Outlet Pipe Gender | Female |
| Valve Features | Cold Water Bypass |
| Valve Material | Brass |
| Width | 5" |
| Compatible With Brand | Haws |
| Inlet Pipe Thread Type | NPT |
| Max Flow Rate | 31 GPM |
| Max Inlet Pressure | 125 psi |
| Max Inlet Temp | 180°F |
| Max Water Output Temp | 90°F |
| Minimum Water Output Temperature | 60°F |
| Outlet Pipe Size | 1 1/4" |
| Outlet Pipe Thread Type | NPT |
| Standards | ANSI Z358.1, ASSE 1071, CALIFORNIA HEALTH AND SAFETY CODE 116875 (AB 1953-2006), CSA B125.3, NSF/ANSI 372, NSF/ANSI 61-SECTION 8 |
| Ship weight (kg) | 2.04 |
| Ship height (cm) | 19.56 |
| Ship length (cm) | 26.16 |
| Ship width (cm) | 18.8 |
| Country of Origin | US |
