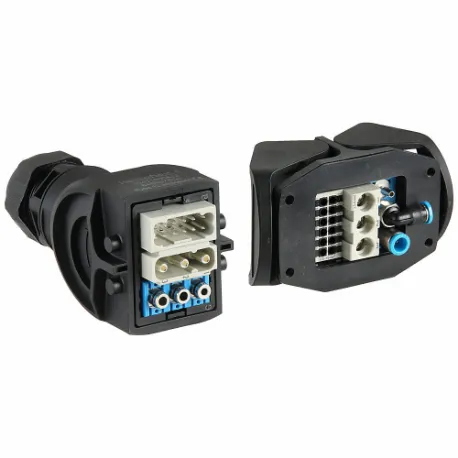

HARTING 19410060301 Rectangular Connector Housing, Size 6 B, Bulkhead Mount, Black, Ip65, Black
Get it by Friday, Jun 13
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Housing |
| Color | Black |
| Entry Location | Top |
| Flammability Rating | Ul 94 V-0 |
| Height | 34.2 mm |
| Housing Color | Black |
| Housing/hood Material | Polyamide Fiber Glass Reinforced |
| Includes Cover | No |
| Ip Rating | IP65 |
| Length | 80 mm |
| Levers And Bolts Material | Fiber Glass Reinforced Polyamide |
| Lock Type | Dual Lever |
| Locking Type | Dual Lever |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN Eco Modular Series |
| Min. Operating Temp. | -40°C |
| Mounting Type | Bulkhead |
| Number Of Entries | 1 |
| Operating Temp. Range | -40°C to +125°C |
| Seal Material | Nbr |
| Size Designation | 6 B |
| Width | 58.3 mm |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Product Type | Housing |
| Series | Han-Eco Modular |
| Standards | CE CERTIFIED, CHINA ROHS, CSA-C22.2 NO. 18.3 QCRV7.E479780, ELV COMPLIANT, EN 45545-2 R22: HL1, HL2, HL3, EN 45545-2 R23: HL1, HL2, HL3, EN 45545-2 R24: HL1, HL2, HL3, IEC 61984, ROHS COMPLAINT, UL 514B QCRV.E479780 |
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 3.42 |
| Ship length (cm) | 8 |
| Ship width (cm) | 5.83 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
19200031750 | €17.07 | |
 |
19200160251 | €47.67 | |
 |
19200320232 | €72.53 | |
 |
19200031120 | - | RFQ
|
 |
19200031252 | €34.51 | |
 |
19200031250 | €34.33 | |
 |
09370030301 | - | RFQ
|
