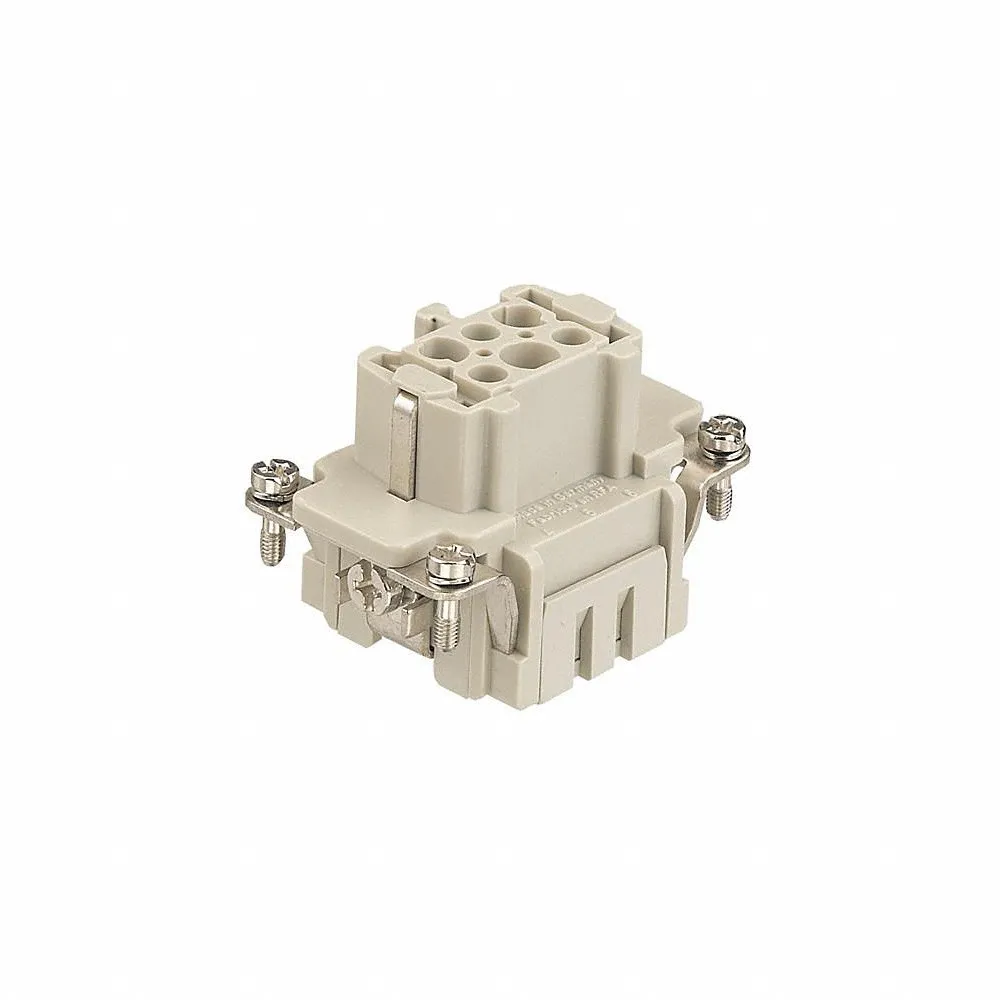

| Item | Insert |
| Application | Industrial Connectors |
| Connection Type | Spring Clamp |
| Connector Gender | Female |
| Current Rating | 16A |
| Includes Poles | Yes |
| Insert Color | Gray |
| Insert Material | Polycarbonate |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN ES Series |
| Min. Operating Temp. | -40°C |
| Minimum Mating Cycles | 500 |
| Number Of Poles | 6 |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Wire Size | 0.14 sq. mm to 2.5 sq. mm, 26 AWG to 14 AWG |
| Maximum Contact Resistance | 3 M ohms |
| Maximum Operating Temperature | 125°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Operating Temperature | -40°C |
| Series | Han ES |
| Standards | CALIFORNIA PROPOSITION 65, CHINA ROHS, DNV GL, ELV COMPLIANT, EN 60664-1, REACH SVHC, ROHS COMPLAINT, UL/CSA |
| Voltage Rating | 500/600V |
| Ship weight (kg) | 0.23 |
