Get it by Friday, Jun 13
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

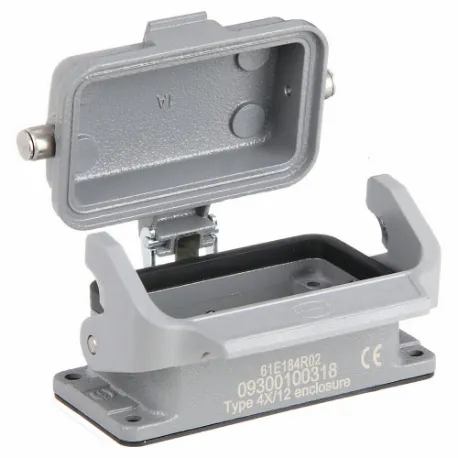

| Item | Housing |
| Application | Industrial Connectors |
| Color | Gray |
| Dimensions | 93 mm x 92.7 mm x 28.9 mm |
| Features | With Metal Cover |
| Flammability Rating | Ul 94 V-0 |
| Height | 28.9 mm |
| Housing Color | Gray |
| Housing/hood Material | Aluminum Die Cast |
| Includes Cover | Yes |
| Ip Rating | IP65 |
| Length | 93 mm |
| Levers And Bolts Material | Polycarbonate , Polycarbonate, Stainless Steel |
| Lock Type | Single Lever |
| Locking Type | Single Lever |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN B Series |
| Min. Operating Temp. | -40°C |
| Mounting Type | Bulkhead |
| Operating Temp. Range | -40°C to +125°C |
| Seal Material | Nbr |
| Size Designation | 10 B |
| Width | 92.7 mm |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Product Type | Housing |
| Series | Han B Series |
| Standards | CALIFORNIA PROPOSITION 65, CE CERTIFIED, CHINA ROHS, CSA-C22.2 NO. 18.3 QCRV7.E479780, DNV GL, ELV COMPLIANT, REACH SVHC, ROHS COMPLAINT, UL 514B QCRV.E479780 |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.89 |
| Ship length (cm) | 9.3 |
| Ship width (cm) | 9.27 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
19200031750 | €17.07 | |
 |
19200160251 | €47.67 | |
 |
19200320232 | €72.53 | |
 |
19200031120 | - | RFQ
|
 |
19200031252 | €34.51 | |
 |
19200031250 | €34.33 | |
 |
09370030301 | - | RFQ
|
