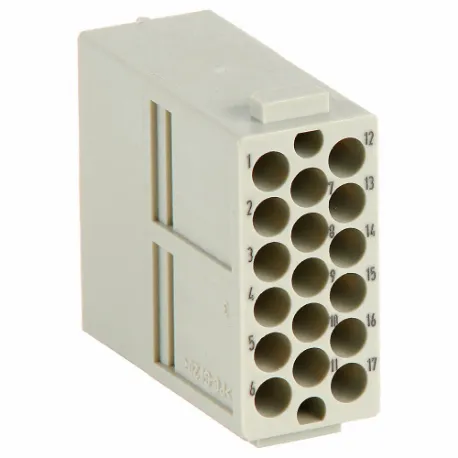

| Item | Insert |
| Application | Industrial Connectors |
| Color | Gray |
| Connection Type | Crimp |
| Connector Gender | Male |
| Current Rating | 10A |
| Flammability Rating | Ul 94 V-0 |
| Includes Poles | No |
| Insert Color | Gray |
| Insert Material | Polycarbonate |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN Modular Series |
| Min. Mating Cycles | 500 |
| Min. Operating Temp. | -40°C |
| Minimum Mating Cycles | 500 |
| Number Of Contacts | 17 |
| Number Of Poles | 17 |
| Voltage Rating | 160/250V |
| Wire Size | 0.14 sq. mm to 2.5 sq. mm |
| Maximum Operating Temperature | 125°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Operating Temperature | -40°C |
| Series | Han-Modular |
| Standards | CHINA ROHS, DNV GL, ELV COMPLIANT, EN 60664-1, ROHS COMPLAINT, UL/CSA |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
