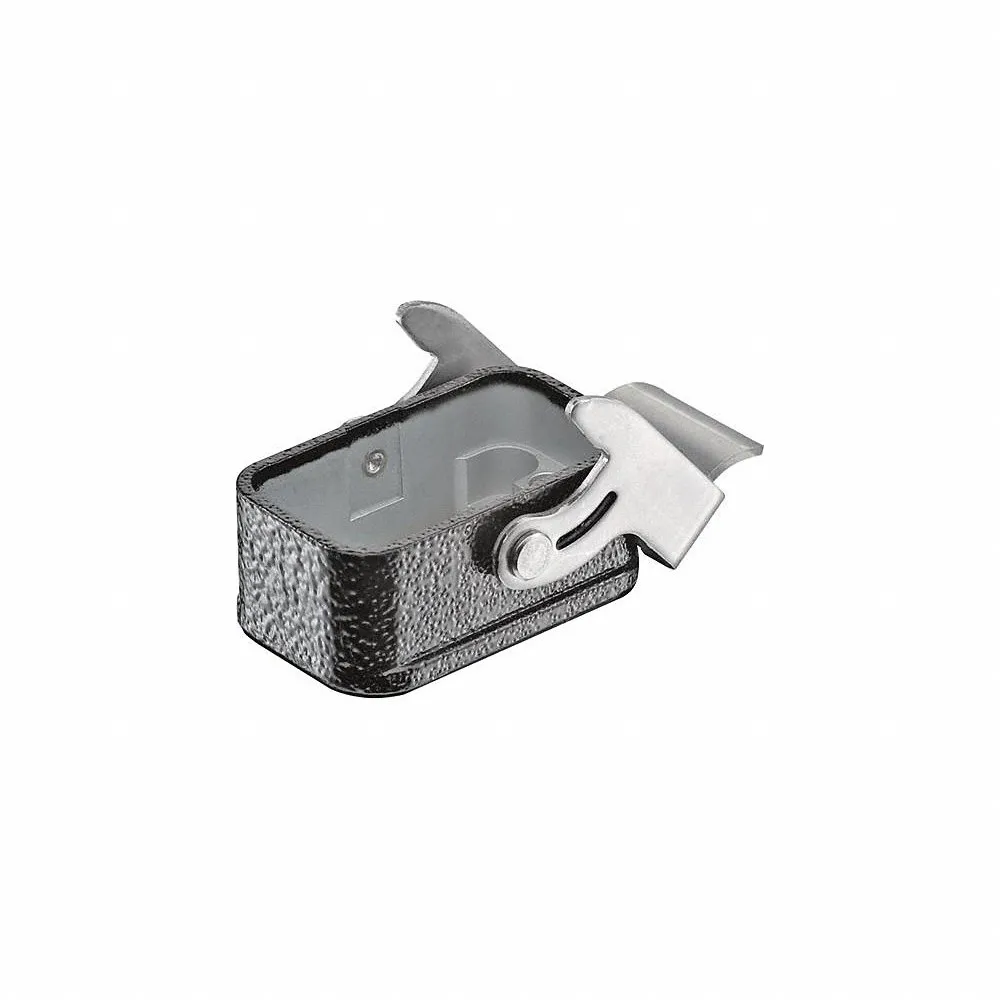

HARTING 09127080301 Rectangular Connector Housing, Size Han-Compact, Bulkhead Mount, Black, Zinc Die-Cast
Get it by Friday, Jun 13
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Housing |
| Application | Hoods/Housings For Industrial Applications |
| Color | Jet Black |
| Height | 18.5 mm |
| Housing Color | Black |
| Housing/hood Material | Zinc Die Cast |
| Ip Rating | IP65 |
| Length | 34.4 mm |
| Levers And Bolts Material | Stainless Steel |
| Lock Type | Single Lever |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN Compact Series |
| Min. Operating Temp. | -40°C |
| Mounting Type | Bulkhead |
| Seal Material | Nbr |
| Size Designation | Han-Compact |
| Width | 67.1 mm |
| Locking Type | Single Lever |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Product Type | Housing |
| Series | Han-Compact |
| Standards | CALIFORNIA PROPOSITION 65, CE CERTIFIED, CHINA ROHS, CSA-C22.2 NO. 18.3 QCRV7.E479780, DNV GL, ELV COMPLIANT, ROHS COMPLAINT, UL 514B QCRV.E479780 |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 1.85 |
| Ship length (cm) | 3.44 |
| Ship width (cm) | 6.71 |
| Country of Origin | DE |
| Product | Model | Price | |
|---|---|---|---|
 |
19200031750 | €17.07 | |
 |
19200160251 | €47.67 | |
 |
19200320232 | €72.53 | |
 |
19200031120 | - | RFQ
|
 |
19200031252 | €34.51 | |
 |
19200031250 | €34.33 | |
 |
09370030301 | - | RFQ
|
