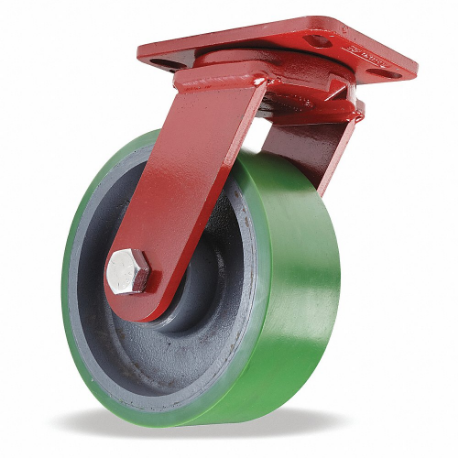

HAMILTON S-ZFFM-83DB-4SL-FB Kingpinless Plate Caster, 8 Inch Dia, 10 1/4 Inch Height
Get it by Wednesday, Jun 18
€580.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial And Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Ergonomic Applications, Material Carts, Premium Forged Steel Casters |
| Brake Type | Side Pedal Brake |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Gray |
| Features | Sealed Swivel Bearing |
| Frame Finish | Enamel |
| Includes | Brake, Swivel Lock |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2.438" x 4.938" |
| Load Rating | 2500 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Positions | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Replacement Wheel | 4DU71 |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Single Ball |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Polyurethane |
| Wheel Diameter | 8" |
| Wheel Width | 3" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Caster Brake Type | Swivel Lock With Side Pedal Brake |
| Caster Frame Material | Steel |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" x 6 1/2" ( A ) |
| Standards | ICWM |
| Wheel Dia. | 8" |
| Wheel/tread Material | Polyurethane |
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
