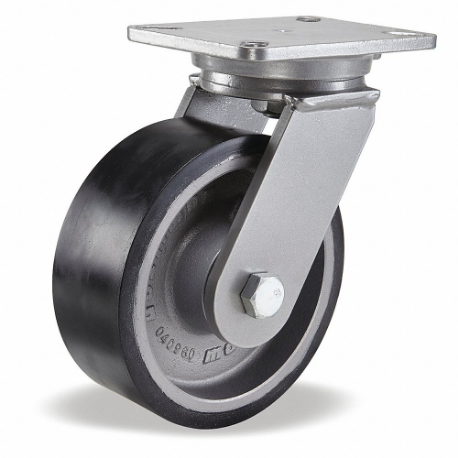

HAMILTON S-CH-83DB70-4SL-FB Standard Plate Caster, 8 Inch Dia, 10 1/2 Inch Height
Get it by Wednesday, Jun 18
€688.63 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts |
| Brake Location | Right Side |
| Brake Type | Side Pedal Brake |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Core Color | Silver |
| Esd Conductive | Yes |
| For Axle Dia. | 3/4" |
| For Surface Type | Concrete |
| Frame Color | Silver |
| Frame Construction | Forged |
| Frame Finish | Powder Coated |
| Includes Fasteners | No |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Load Rating | 3250 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Thickness | 1/2" |
| Non-marking | No |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Positions | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -50°F to +200°F |
| Outside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Overall Wheel Width | 3" |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Kingspin |
| Swivel Lead | 2 1/2" |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 6 1/2" |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Cast Iron |
| Wheel Core Type | Solid |
| Wheel Diameter | 8" |
| Wheel Type | Flat Free |
| Wheel Width | 3" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 70 Shore D |
| Wheel/tread Hardness Rating | Hard |
| With Toe Plate | No |
| Caster Brake Type | Side Pedal Brake |
| Caster Frame Material | Steel |
| Includes Mounting Fasteners | No |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" x 7 1/4" ( A ) |
| Operating Temperature Range | -50°F to +200°F |
| Standards | ICWM |
| Wheel Dia. | 8" |
| Wheel/tread Material | Polyurethane |
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
S-MDK-104HFSB | Plate Caster | €2,418.45 | |
|
S-MDK-104HFSB-H4SL-HCB | Plate Caster | €2,865.57 | |
 |
S-MDK-124HFSB-H4SL-HCB | Plate Caster | €2,911.10 | |
|
S-MDK-124HFSB | Plate Caster | €2,627.90 | |
 |
R-MDK-124HFSB | Plate Caster | €1,371.27 | |
 |
S-FMK-63HFSB-H4SL-FB | Plate Caster | €1,250.24 | |
 |
S-FMK-63HMB | Plate Caster | €818.32 |
