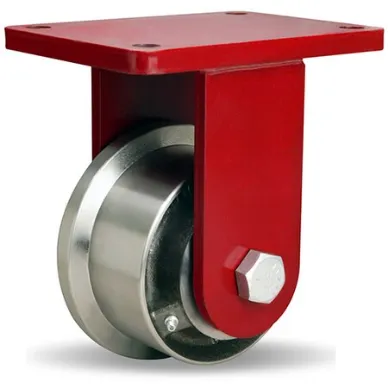

HAMILTON R-EPSD-FT5FT Plate Caster, 5 Inch Dia, 8 Inch Height, Rigid
Get it by Wednesday, Jun 18
€564.44 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Plate Caster |
| Brake Type | No Brake Included |
| Caster Material | Steel |
| Caster Sub-type | Rigid |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 5 1/8" x 6 1/4" |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 8" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 6 1/2" x 7 1/2" |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 7/8" x 5 1/4" |
| Swivel Construction | Kingspin |
| Tread Material, Wheel Material | Steel |
| Wheel Bearing Type | Tapered Roller |
| Wheel Diameter | 5" |
| Wheel Width | 2.688" |
| Wheel/tread Hardness | Brinell 188 |
| Wheel/tread Hardness Rating | Extra Hard |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Mounting Plate Size & Bolt Hole Pattern | 6 1/2" x 7 1/2" ( B ) |
| Wheel Dia. | 5" |
| Wheel/tread Material | Steel |
| Ship weight (kg) | 14.4 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
S-MDK-104HFSB | Plate Caster | €2,418.45 | |
|
S-MDK-104HFSB-H4SL-HCB | Plate Caster | €2,865.57 | |
 |
S-MDK-124HFSB-H4SL-HCB | Plate Caster | €2,911.10 | |
|
S-MDK-124HFSB | Plate Caster | €2,627.90 | |
 |
R-MDK-124HFSB | Plate Caster | €1,371.27 | |
 |
S-FMK-63HFSB-H4SL-FB | Plate Caster | €1,250.24 | |
 |
S-FMK-63HMB | Plate Caster | €818.32 |
