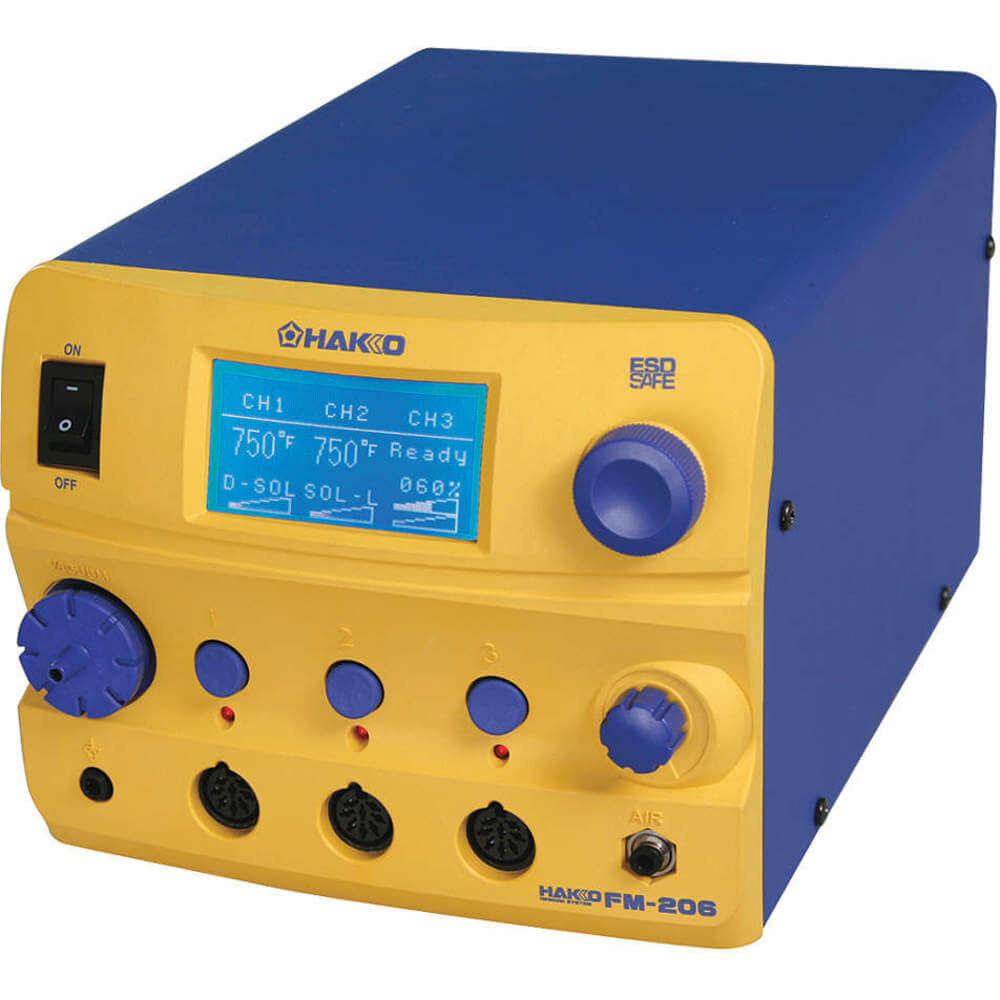

HAKKO FM206-DSS Rework Station 3 Port DSS 120V ESD Safe
Get it by Wednesday, Jun 18
€3,483.75 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Rework Station |
| Air Flow Rate | 6 LPM |
| Application | Desoldering, Hot Air Rework, Soldering |
| Display Type | Digital |
| Esd Safe | Yes |
| Handpiece Connection Type | Station Connector |
| Handpiece Length | 7.09" |
| Includes | (2) Soldering Irons, Desoldering Tool |
| Number Of Channels | 3 |
| Plug Type | Three Prong |
| Pump Type | Diaphragm , Diaphragm Pump |
| Temp. Accuracy | Greater Than +/-27° |
| Temp. Range | +660° to +840° |
| Temperature Adjustment | Adjustable Temperature Setting |
| Temperature Stability | -5°C to +5°C |
| Tip Type | Not Included |
| Type | Digital |
| Wattage | 410 W |
| Compatible Handpiece Manufacturer Model Number | FM-2022, FM-2024, FM-2027, FM-2029 |
| Compatible Tip Series | T15 Tips |
| Features | Auto Shutoff with Sleep Function, Low Cost Composite Hot Air Nozzles, Passcode Protected, Security Lock to Protect Against Theft or Unauthorized Re location |
| Handpiece Cord Length | 4 ft. |
| Handpiece Power Consumption | 70 W |
| Handpiece Style | Desoldering Gun, Soldering Iron |
| Included Handpiece | Desolder - FM-2024, Solder - FM-2027 |
| Included Tip Type | Not Included |
| Maximum Operating Temperature | 840°F |
| Minimum Operating Temperature | 400°F |
| Number Of Tips Included | 0 |
| Overall Height | 136 mm |
| Overall Width | 162 mm |
| Power Consumption | 410 W |
| Product Type | Soldering, Desoldering & Hot Air Rework Station |
| Series | FM-206 Series |
| Standards | CMETUS, ESD, MEETS OR EXCEEDS J-STD-001, NRTL LISTED |
| Tip To Ground Potential | 2 mV |
| Tip To Ground Resistance | 2 ohms |
| Ship weight (kg) | 10.89 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 52.07 |
| Ship width (cm) | 39.37 |
| Country of Origin | JP |
| Product | Model | Temp. Range | Watts | Price | |
|---|---|---|---|---|---|
 |
FM204-CP | 400 Degrees to 840 Degrees | 120 | €1,702.14 | |
 |
FM206-55 | 660 Degrees to 840 Degrees | 410 | €2,371.47 | |
 |
FM206-DSA | 660 Degrees to 840 Degrees | 410 | €3,830.03 | |
 |
FM206-DTS | Desoldering tool 660-840 Degrees F, Hot Tweezer 400-750 Degrees F, and Soldering Iron 400-840 Degrees F | 410 | €3,766.83 | |
 |
FM206-STA | 660 Degrees to 840 Degrees | 410 | €3,725.14 |
