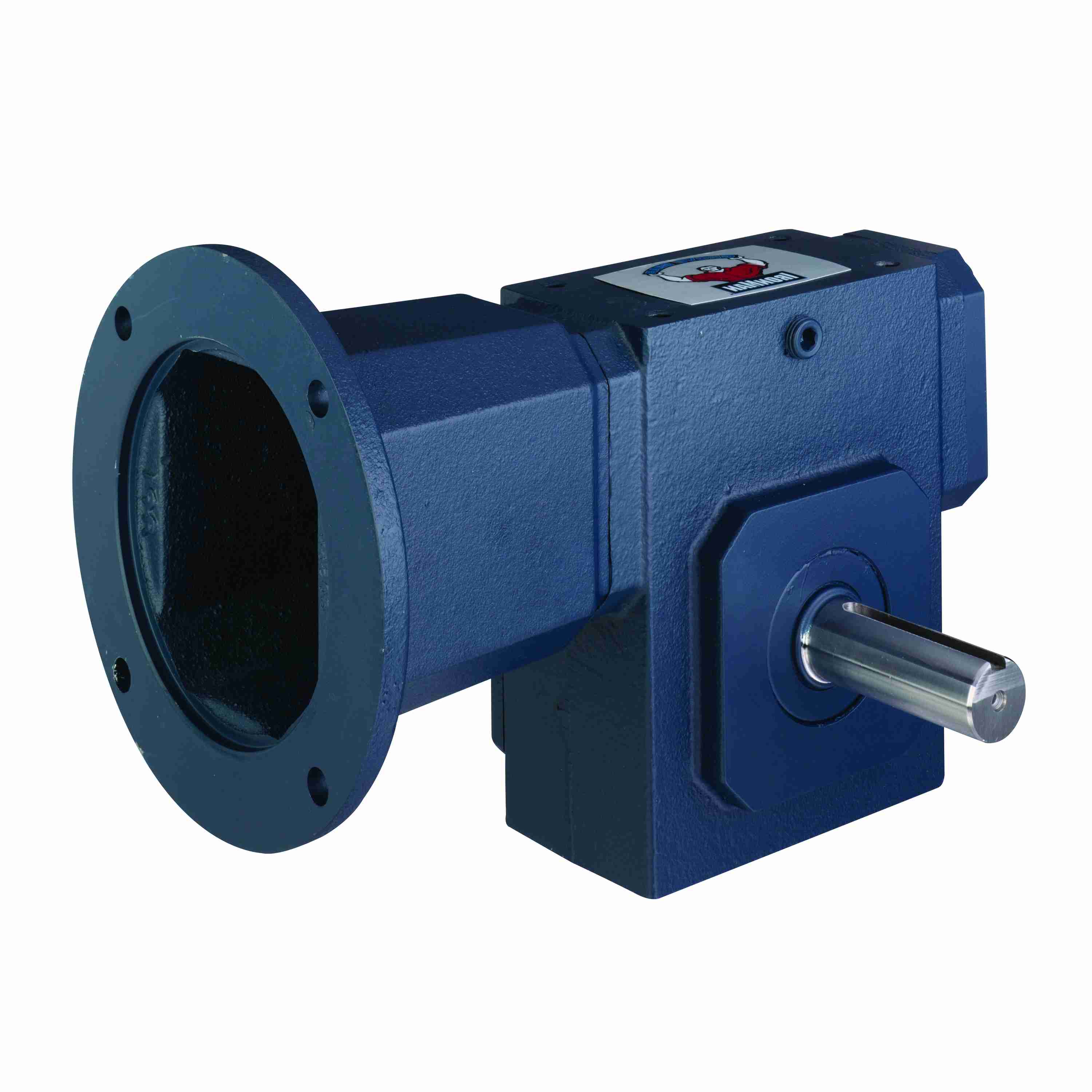

GROVE GEAR NH8300122.00 NH-BM830-7.5-R-180 Worm Reducer, 7.5:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron
Get it by Monday, Jun 16
€1,701.36 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Reducer |
| Assembly | BM-R |
| Center Distance | 3" |
| Frame | 180TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 1 1/8" |
| Input Bore Size | 1 1/8" |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 6.049 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Rpm | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Material | Cast Iron |
| Max Input Hp | 6 879/1000 hp |
| Max. Input Hp | 6.879 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/4" |
| Output Hp | 6.421 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Rpm | 233 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 1944 |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Torque | 1519 lbs.-in. |
| Overhung Load | 2170 lbs. |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | NH Series |
| Series Style | NH-BM-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 3/4" |
| Tap Size | 3/8"-16 |
| Thread Type | Coarse |
| Weight | 59 lbs. |
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
| Model | Price | |
|---|---|---|
| NH8300053.00 | €1,701.36 | |
| NH8300055.00 | €1,701.36 | |
| NH8300057.00 | €1,701.36 | |
| NH8300058.00 | €1,701.36 | |
| NH8300060.00 | €1,701.36 | |
| NH8300087.00 | €1,701.36 | |
| NH8300088.00 | €1,701.36 |
