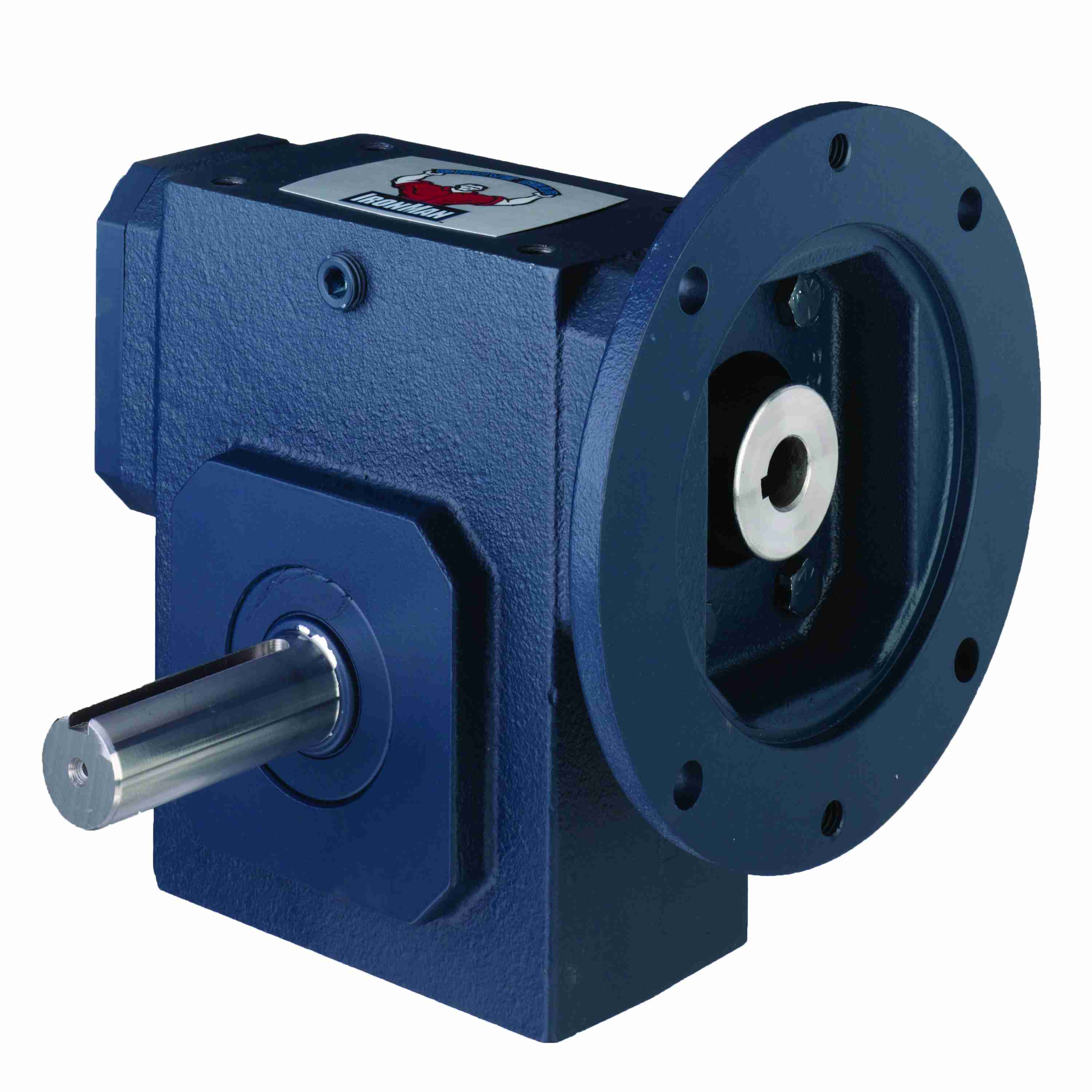

GROVE GEAR NH8210147.00 NH-BMQ821-10-L-140 Worm Reducer, 10:1 Ratio, 0.875 Inch I.D, 0.875 Inch O.D, Cast Iron
Get it by Tuesday, Jun 17
€935.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | BMQ-L |
| Center Distance | 2.06" |
| Frame | 140TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 2 58/125 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Material | Cast Iron |
| Max Input Hp | 2 58/125 hp |
| Max. Input Hp | 2 58/125 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 7/8" |
| Output Hp | 2 47/200 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Rpm | 175 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 7/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 898 |
| Output Shaft Type | Left Handed Shaft |
| Output Style | L |
| Output Torque | 805 lbs.-in. |
| Overhung Load | 1065 lbs. |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | NH Series |
| Series Style | NH-BMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 0.63" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
| Weight | 25 lbs. |
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| NH8210110.00 | €935.55 | |
| NH8210111.00 | €935.55 | |
| NH8210113.00 | €935.55 | |
| NH8210114.00 | €935.55 | |
| NH8210115.00 | €935.55 | |
| NH8210117.00 | €935.55 | |
| NH8210118.00 | €935.55 |
