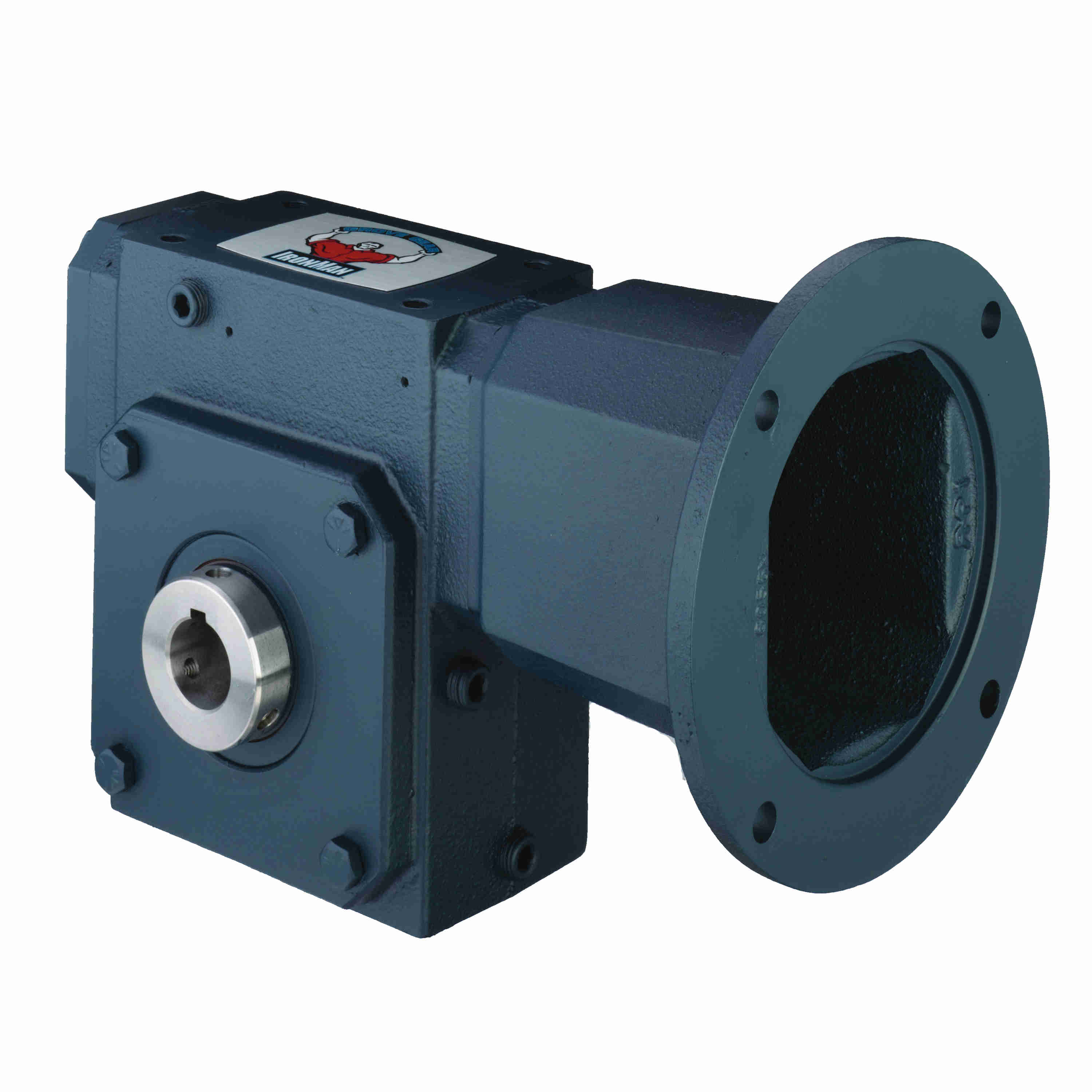

GROVE GEAR NH8180513.16 NH-HM818-5-H1-56-16 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron
Get it by Tuesday, Jun 17
€1,219.76 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | HM-H1 |
| Bore Code | 16 |
| Center Distance | 1 3/4" |
| Frame | 56C |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 2 3/5 hp |
| Input Keyway Size | 3/16" x 1.38" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Material | Cast Iron |
| Max Input Hp | 2 3/5 hp |
| Max. Input Hp | 2 3/5 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1" |
| Output Hp | 2.422 hp |
| Output Key Size | 1/4" x 2.5" |
| Output Rpm | 350 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 793 |
| Output Shaft Type | Hollow Shaft |
| Output Style | H1 |
| Output Torque | 436 lbs.-in. |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | NH Series |
| Series Style | NH-HM-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Weight | 23 lbs. |
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| NH8180525.16 | €1,219.76 | |
| NH8180526.16 | €1,219.76 | |
| NH8180529.16 | €1,219.76 | |
| NH8180524.16 | €1,219.76 |
