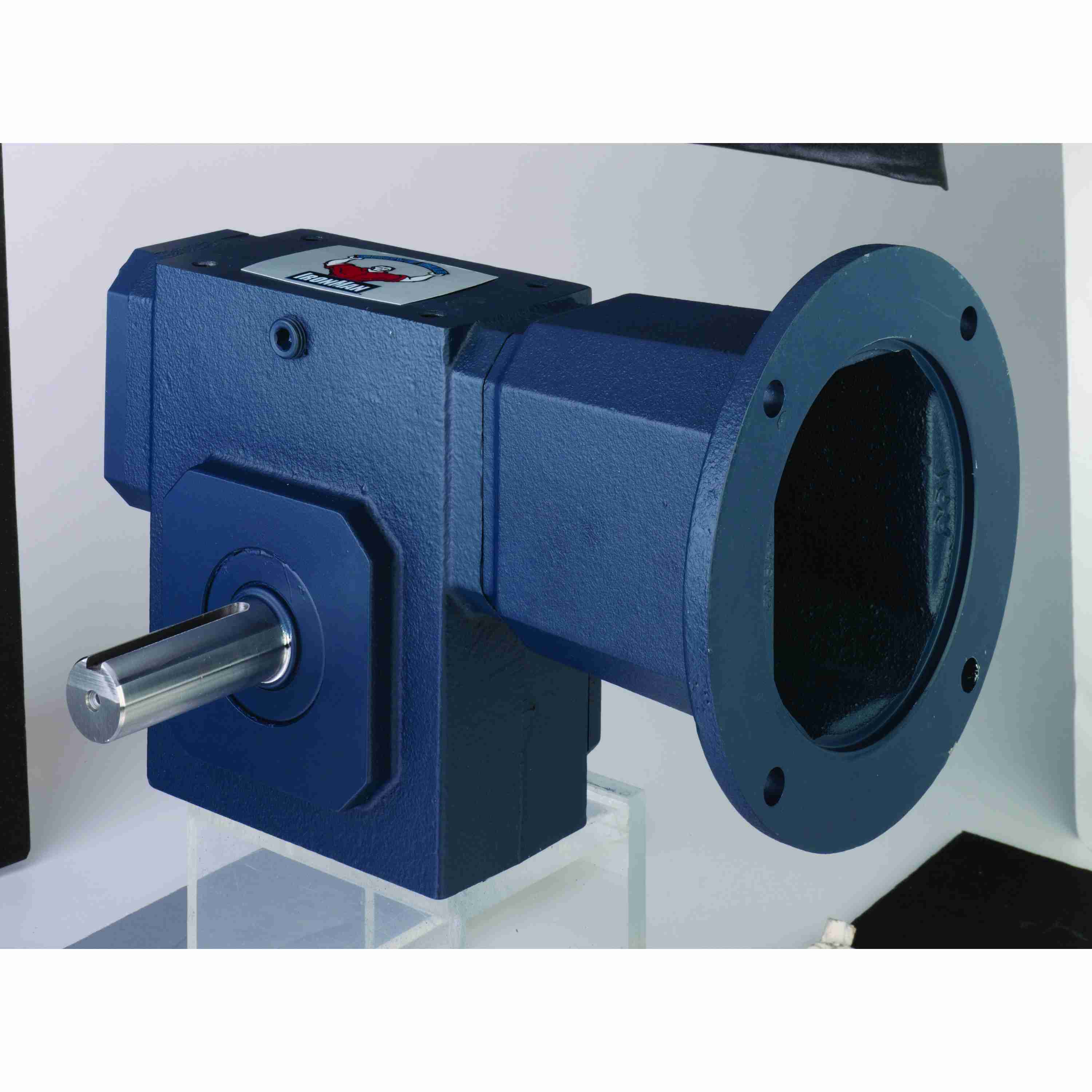

GROVE GEAR NH8150060.00 NH-BM815-100-R-48 Worm Reducer, 100:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Cast Iron

Item: AY3FEEModel: NH8150060.00Cross Ref: NH-BM815-100-R-48

See variants (11)

In Stock

Get it by Monday, Jun 16

€778.32 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Reducer
Assembly	BM-R
Center Distance	1.54"
Frame	48CZ
Gear Type	Worm
Gearbox Type	Worm
Housing Material	Cast Iron
Input Bore (c Face)	1/2"
Input Bore Size	1/2"
Input Dia.	5/8"
Input Hp @ 1750 Rpm	29/200 hp
Input Keyway Size	3/16" x 1.38"
Input Keyway Size (c Face)	1/8" x 1/16"
Input Rpm	1750 RPM
Input Style	Flexible Coupling Input
Material	Cast Iron
Max Input Hp	29/200 hp
Max. Input Hp	29/200 hp
Mounting Type	Base
No. Of Gear Reductions	1
Output Diameter	3/4"
Output Hp	0.059 hp
Output Key Size	3/16" x 1.5"
Output Rpm	17 RPM
Output Shaft	Solid Shaft
Output Shaft Assembly Code	R
Output Shaft Dia.	3/4"
Output Shaft Direction	Right
Output Shaft Orientation	R
Output Shaft Thrust Rating	1144
Output Shaft Type	Right Handed Shaft
Output Style	R
Output Torque	213 lbs.-in.
Overhung Load	860 lbs.
Product Line	NH Series - Ironman Narrow Housing Worm Gear Reducers
Reducer	Worm - Right Angle
Reduction Type	Single
Series	NH Series
Series Style	NH-BM-R
Service Factor	1
Shaft Seal Material	Viton
Ships Factory Direct	No
Tap Depth	0.63"
Tap Size	5/16"-18
Thread Type	Coarse
Weight	20 lbs.
