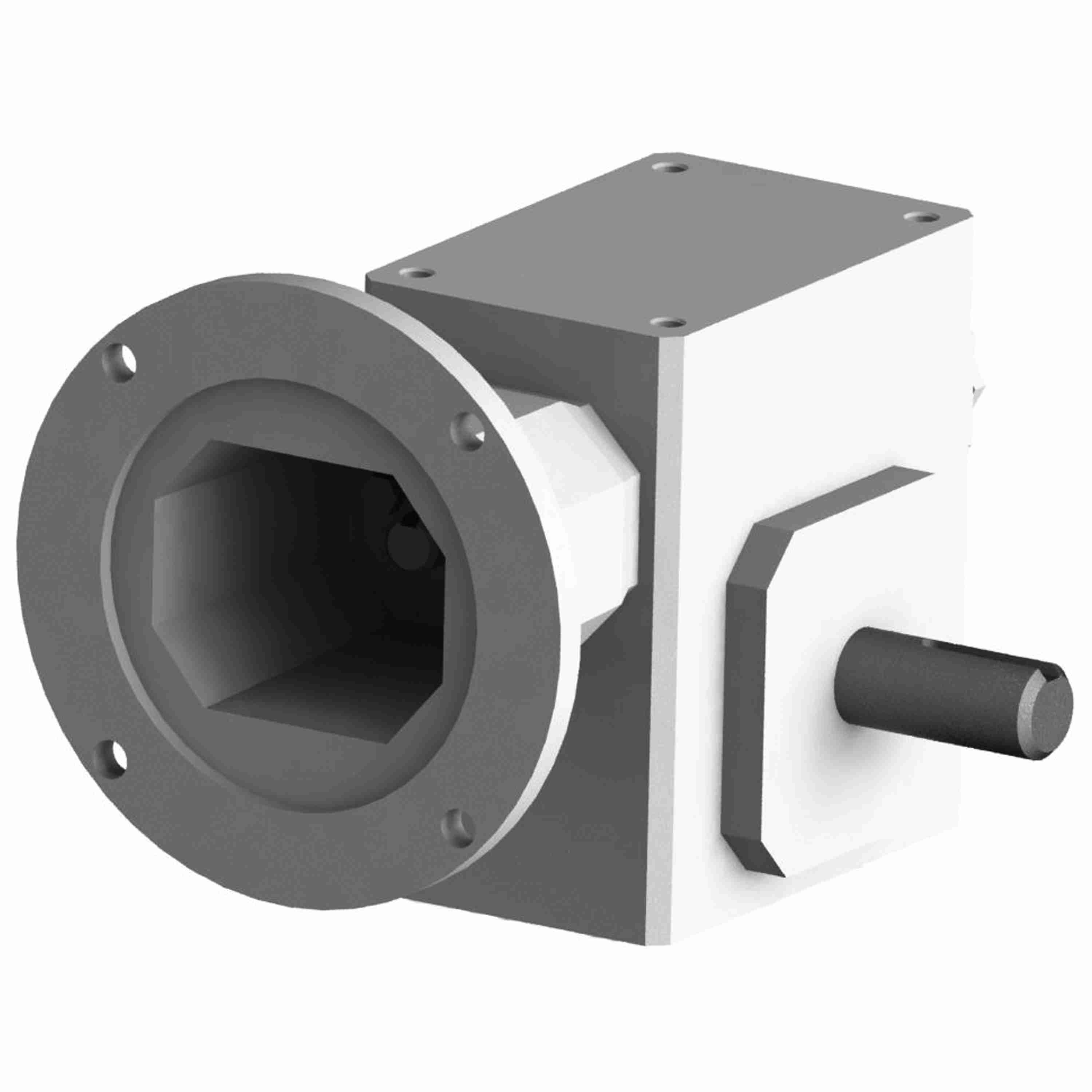

GROVE GEAR GRG8265604.00 GRG-WBM826-60-R-140 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron
Get it by Monday, Jun 16
€1,773.72 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Reducer |
| Center Distance | 2.63" |
| Gear Ratio | 60:1 |
| Gearbox Type | Worm |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Keyway Size | 3/16" x 3/32" |
| Input Style | C Face Coupled |
| Lubrication | PAG Synthetic Oil |
| Material | Cast Iron |
| Max Input Hp | 1 27/125 hp |
| Max. Input Hp | 1.216 hp |
| Mounting Type | Base |
| Output Dia. | 1 1/4" |
| Output Hp | 0.835 hp |
| Output Keyway Size | 1/4" x 1 3/4" |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Length | 2.73" |
| Output Shaft Type | Right Handed Shaft |
| Output Type | Shaft |
| Product Series | GRG Series |
| Ships Factory Direct | No |
| Torque Rating | 1805 lbs.-in. |
| Type | Right Angle Single Reduction |
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
| Product | Model | Price | |
|---|---|---|---|
 |
GRG8265708.00 | €1,199.76 |
