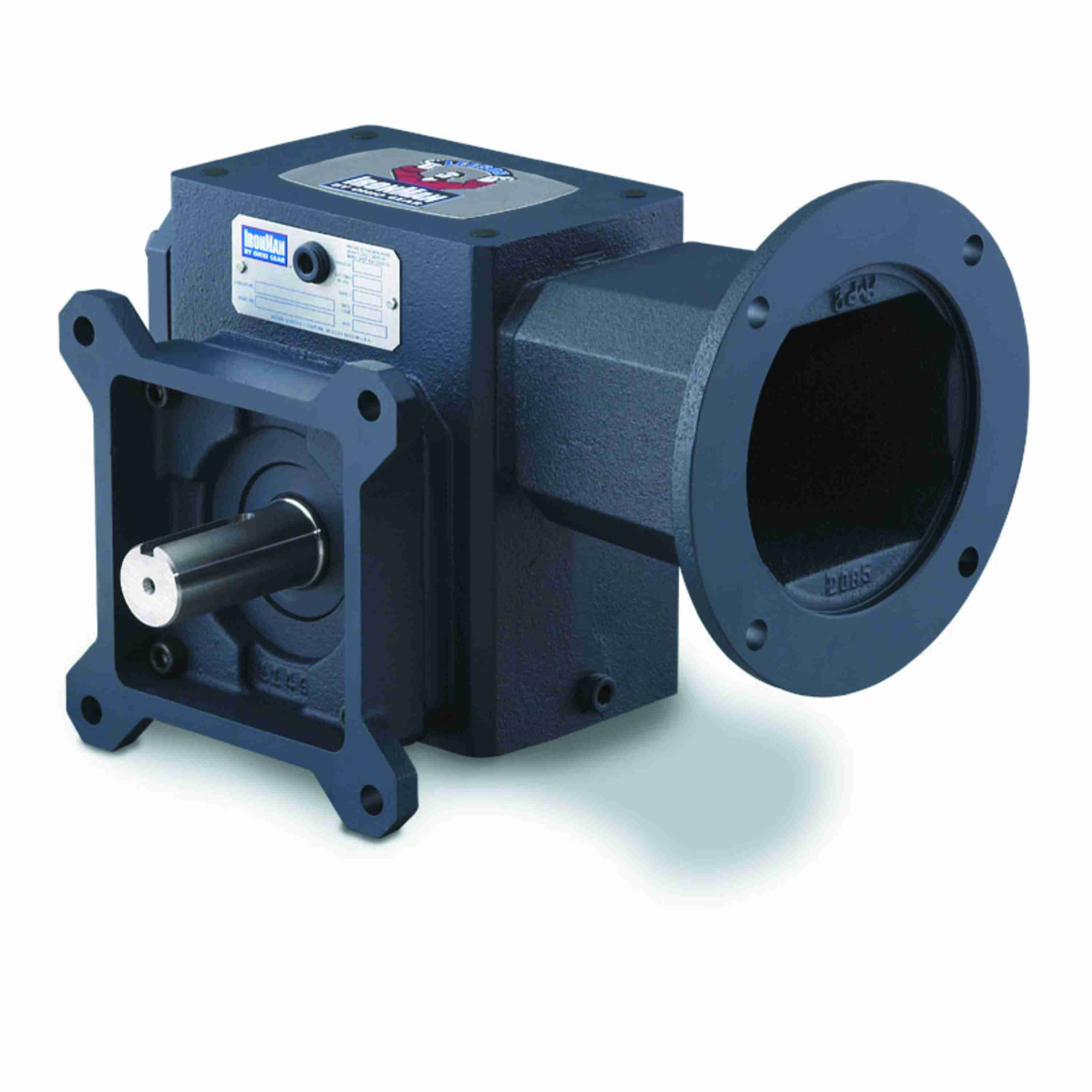

GROVE GEAR GR8425624.00 GR-FM842-10-LL-210 Worm Reducer, 10:1 Ratio, 1.375 Inch I.D, 1.875 Inch O.D, Cast Iron
€2,433.44 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Assembly | FM-LL |
| Center Distance | 4 1/4" |
| Frame | 210TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 1 3/8" |
| Input Dia. | 1 3/8" |
| Input Keyway Size | 1/4" x 2.5" |
| Input Keyway Size (c Face) | 5/16" x 5/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Coupled |
| Keyway Size | 5/16" x 5/32" |
| Max. Input Hp | 14 93/100 hp |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 7/8" |
| Output Hp | 14 hp |
| Output Key Size | 1/2" x 3.06" |
| Output Rpm | 175 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | LL |
| Output Shaft Orientation | LL |
| Output Style | LL |
| Output Torque | 5042 lbs.-in. |
| Overhung Load | 3010 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-FM-LL |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Weight | 169 lbs. |
| Ship weight (kg) | 76.05 |
| Model | Price | |
|---|---|---|
| GR8420597.32 | €4,188.60 | |
| GR8420599.23 | €2,853.52 | RFQ
|
| GR8420599.27 | €2,853.52 | RFQ
|
| GR8420599.28 | €4,188.60 | |
| GR8420599.31 | €2,853.52 | RFQ
|
| GR8420599.32 | €2,853.52 | RFQ
|
| GR8420599.35 | €2,853.52 | RFQ
|
