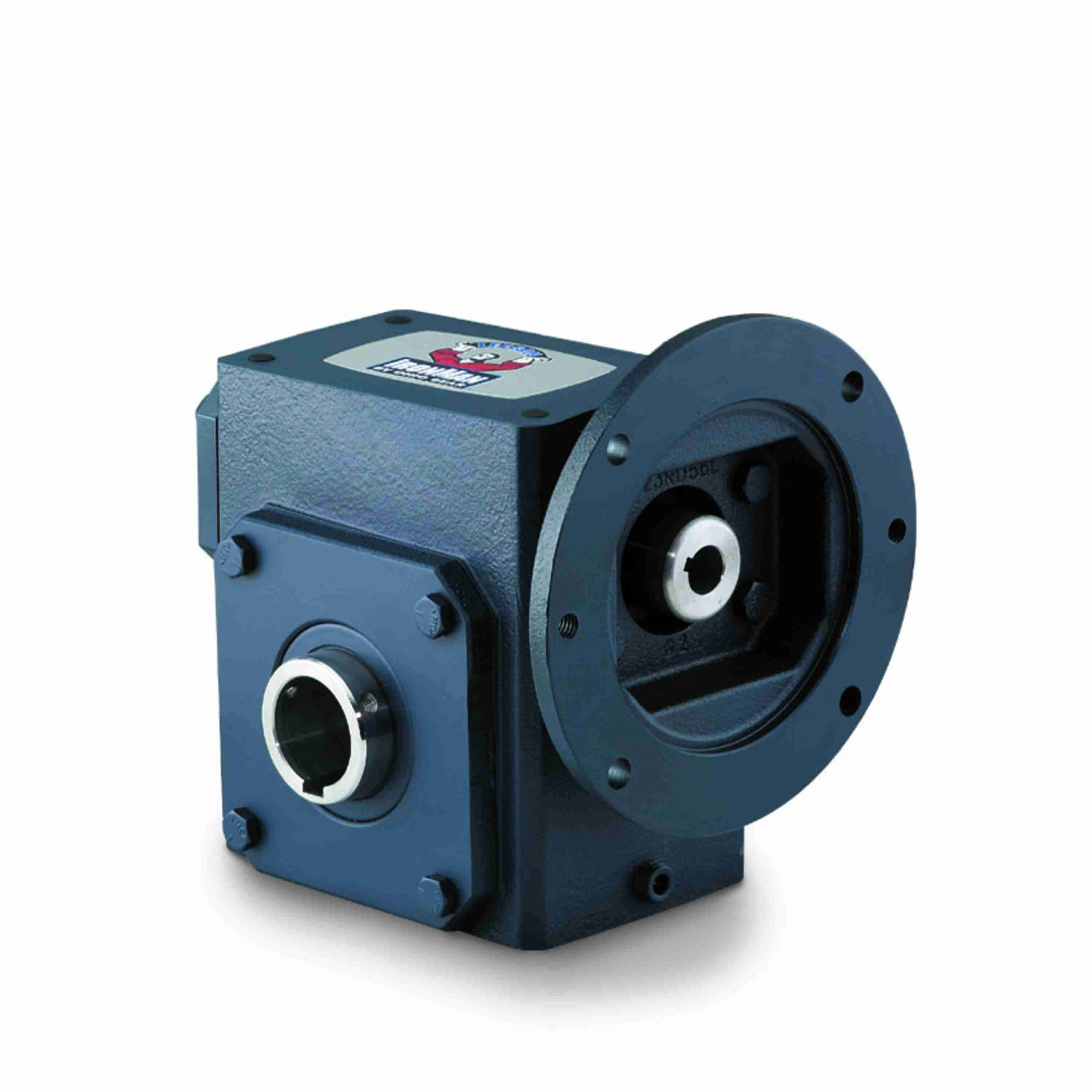

GROVE GEAR GR8420596.23 GR-HMQ842-100-H1-140-23 Worm Reducer, 100:1 Ratio, 0.875 Inch I.D, 1.438 Inch O.D, Cast Iron
Get it by Tuesday, Jun 17
€3,661.73 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | HMQ-H1 |
| Bore Code | 23 |
| Center Distance | 4 1/4" |
| Frame | 140TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 1.201 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Material | Cast Iron |
| Max Input Hp | 1 201/1000 hp |
| Max. Input Hp | 1.201 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1.438" |
| Output Hp | 99/125 hp |
| Output Key Size | 3/8" x 3" |
| Output Rpm | 17 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 2533 |
| Output Shaft Type | Hollow Shaft |
| Output Style | H1 |
| Output Torque | 2852 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-HMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Weight | 149 lbs. |
| Ship weight (kg) | 67.05 |
| Ship height (cm) | 44.45 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
| Model | Price | |
|---|---|---|
| GR8420597.32 | €4,188.60 | |
| GR8420599.23 | €2,853.52 | RFQ
|
| GR8420599.27 | €2,853.52 | RFQ
|
| GR8420599.28 | €4,188.60 | |
| GR8420599.31 | €2,853.52 | RFQ
|
| GR8420599.32 | €2,853.52 | RFQ
|
| GR8420599.35 | €2,853.52 | RFQ
|
