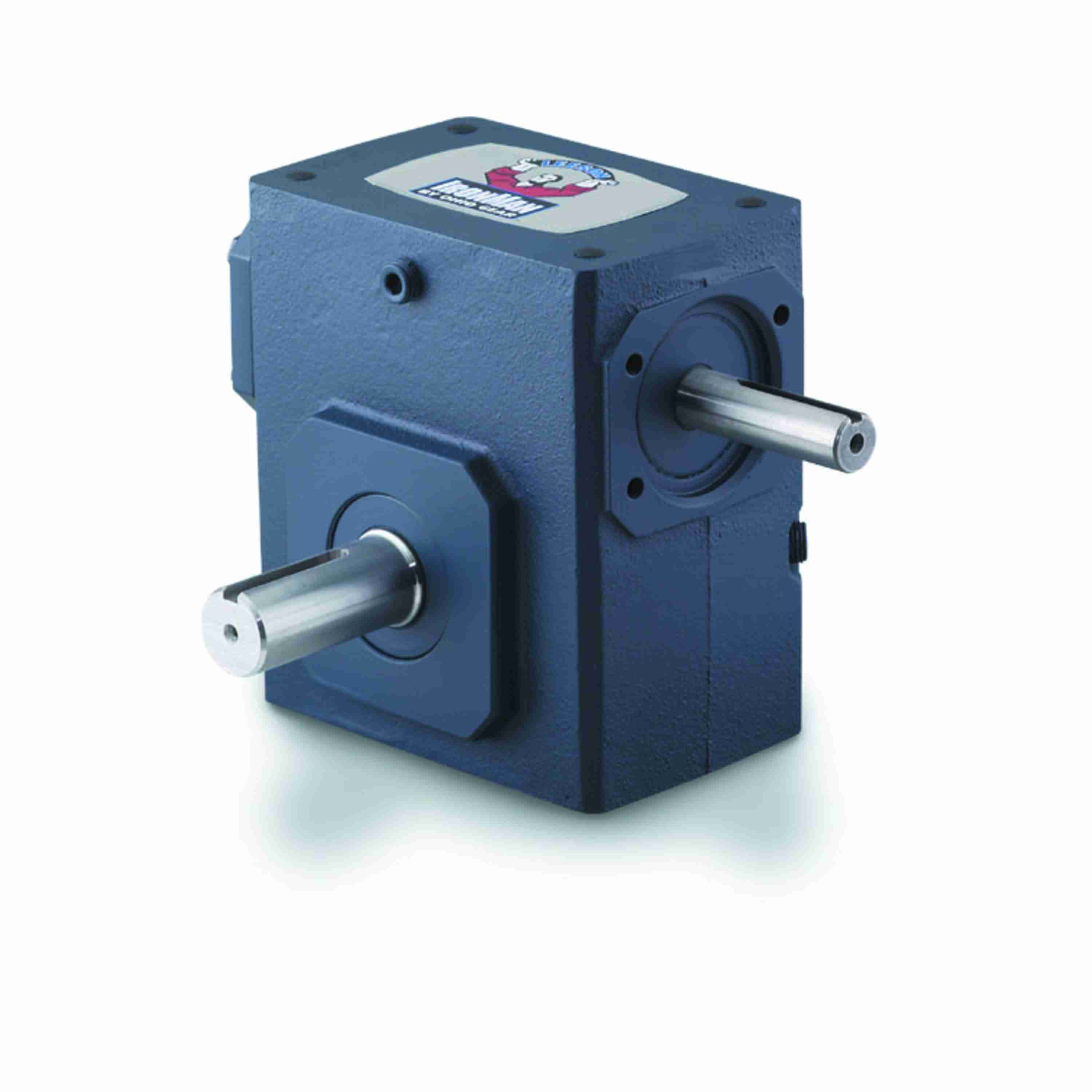

GROVE GEAR GR8420023.00 GR-B842-80-R Worm Reducer, 80:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron
Get it by Monday, Jun 16
€2,811.49 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Reducer |
| Assembly | B-R |
| Center Distance | 4 1/4" |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore Size | 1 1/4" |
| Input Dia. | 1 1/4" |
| Input Hp @ 1750 Rpm | 1 19/25 hp |
| Input Keyway Size | 1/4" x 2.5" |
| Input Rpm | 1750 RPM |
| Input Style | Solid Shaft |
| Input Type | Solid Shaft |
| Material | Cast Iron |
| Max Input Hp | 1 19/25 hp |
| Max. Input Hp | 1 19/25 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 7/8" |
| Output Hp | 1.257 hp |
| Output Key Size | 1/2" x 3.06" |
| Output Rpm | 21 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 7/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 2533 |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Torque | 3620 lbs.-in. |
| Overhung Load | 3740 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-B-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 1" |
| Tap Size | 5/8"-11 |
| Thread Type | Coarse |
| Weight | 136 lbs. |
| Ship weight (kg) | 61.2 |
| Ship height (cm) | 44.45 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
| Model | Price | |
|---|---|---|
| GR8420013.00 | €2,811.49 | |
| GR8420014.00 | €2,811.49 | |
| GR8420015.00 | €2,562.70 | |
| GR8420016.00 | €2,811.49 | |
| GR8420017.00 | €2,811.49 | |
| GR8420019.00 | €2,811.49 |
