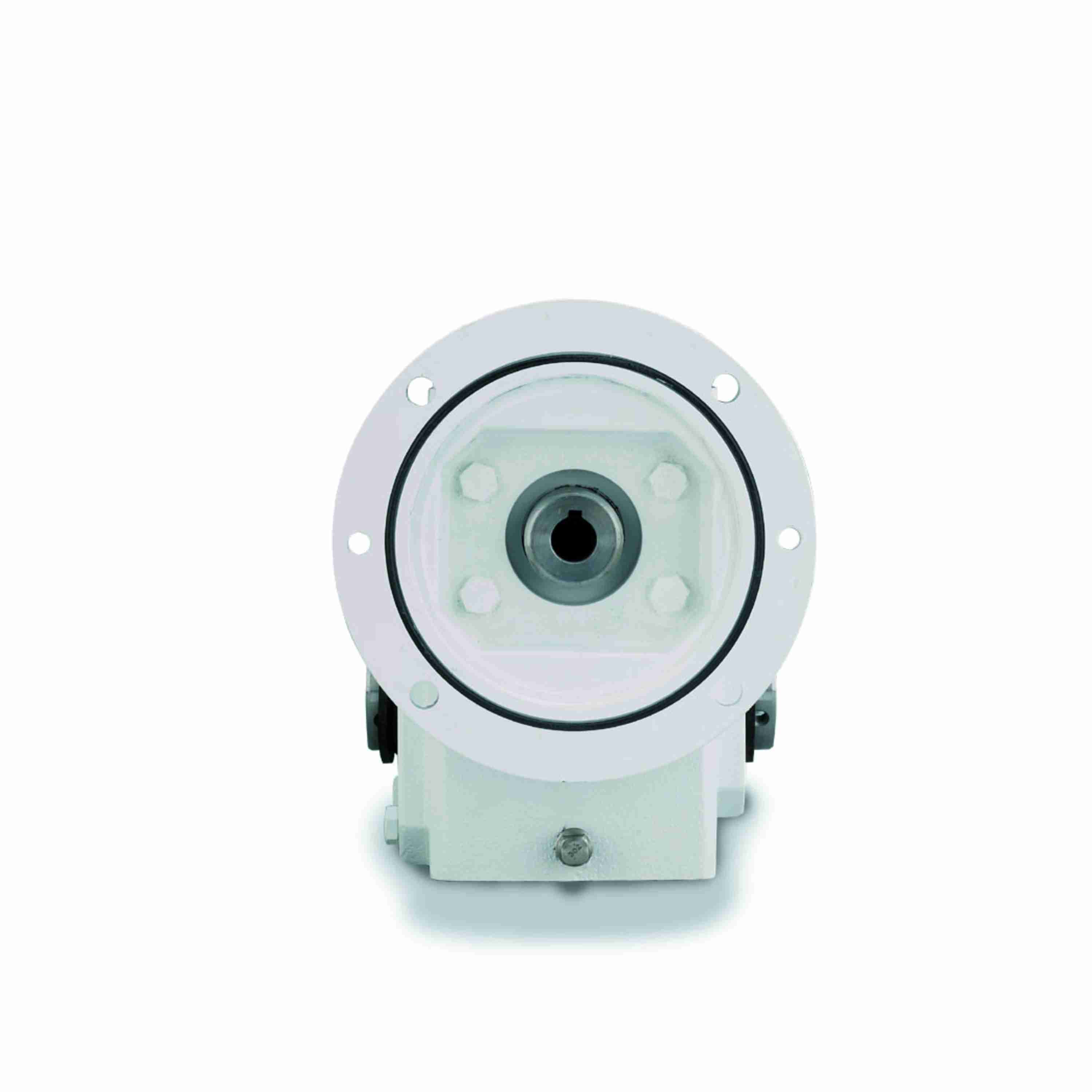

| Item | Reducer |
| Assembly | WHMQ-H1 |
| Bore Code | 23 |
| Center Distance | 3" |
| Frame | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Dia. | 7/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 7/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 2.251 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1.438" |
| Output Hp | 1 18/25 hp |
| Output Key Size | 3/8" x 3" |
| Output Rpm | 43 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Style | H1 |
| Output Torque | 2477 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-WHMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Weight | 69 lbs. |
| Ship weight (kg) | 31.05 |
| Model | Price | |
|---|---|---|
| GR8303519.23 | €3,375.45 | |
| GR8303522.24 | €2,810.35 | |
| GR8303512.20 | €2,222.00 | RFQ
|
| GR8303528.27 | €2,282.45 |
