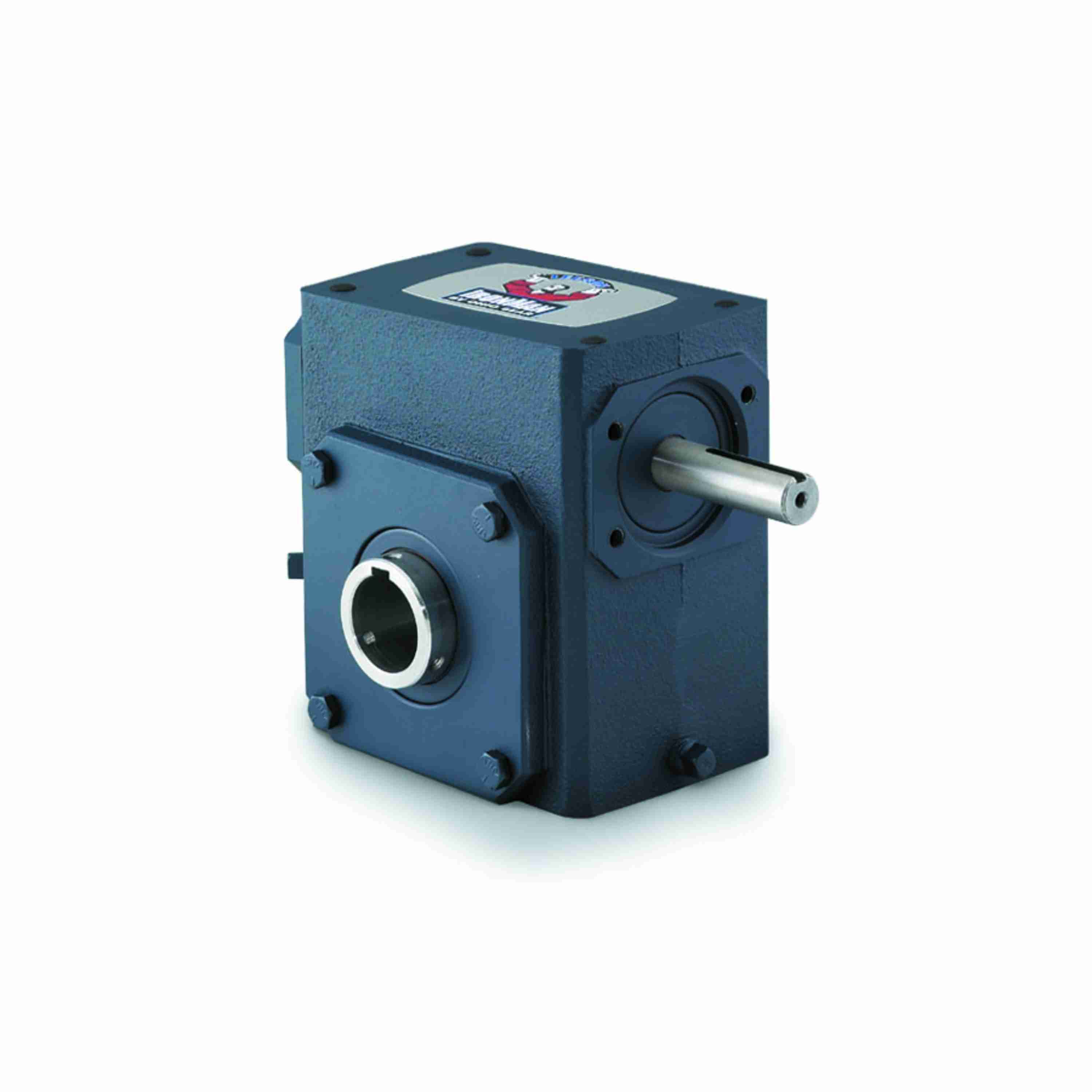

GROVE GEAR GR8300508.23 GR-H830-40-H1-23 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.438 Inch O.D, Cast Iron
€1,379.98 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Assembly | H-H1 |
| Bore Code | 23 |
| Center Distance | 3" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 2.251 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Rpm | 1750 RPM |
| Input Style | Solid Shaft |
| Max. Input Hp | 2.251 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 7/16" |
| Output Hp | 1 18/25 hp |
| Output Key Size | 3/8" x 3" |
| Output Rpm | 43 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 2574 |
| Output Style | H1 |
| Output Torque | 2477 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-H-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Weight | 65 lbs. |
| Ship weight (kg) | 29.25 |
| Model | Price | |
|---|---|---|
| GR8300585.23 | €2,349.36 | |
| GR8300586.20 | €1,545.57 | RFQ
|
| GR8300586.23 | €1,956.03 | |
| GR8300586.32 | €1,545.57 | RFQ
|
| GR8300586.35 | €1,545.57 | RFQ
|
| GR8300587.19 | €2,349.36 | |
| GR8300587.20 | €2,349.36 |
