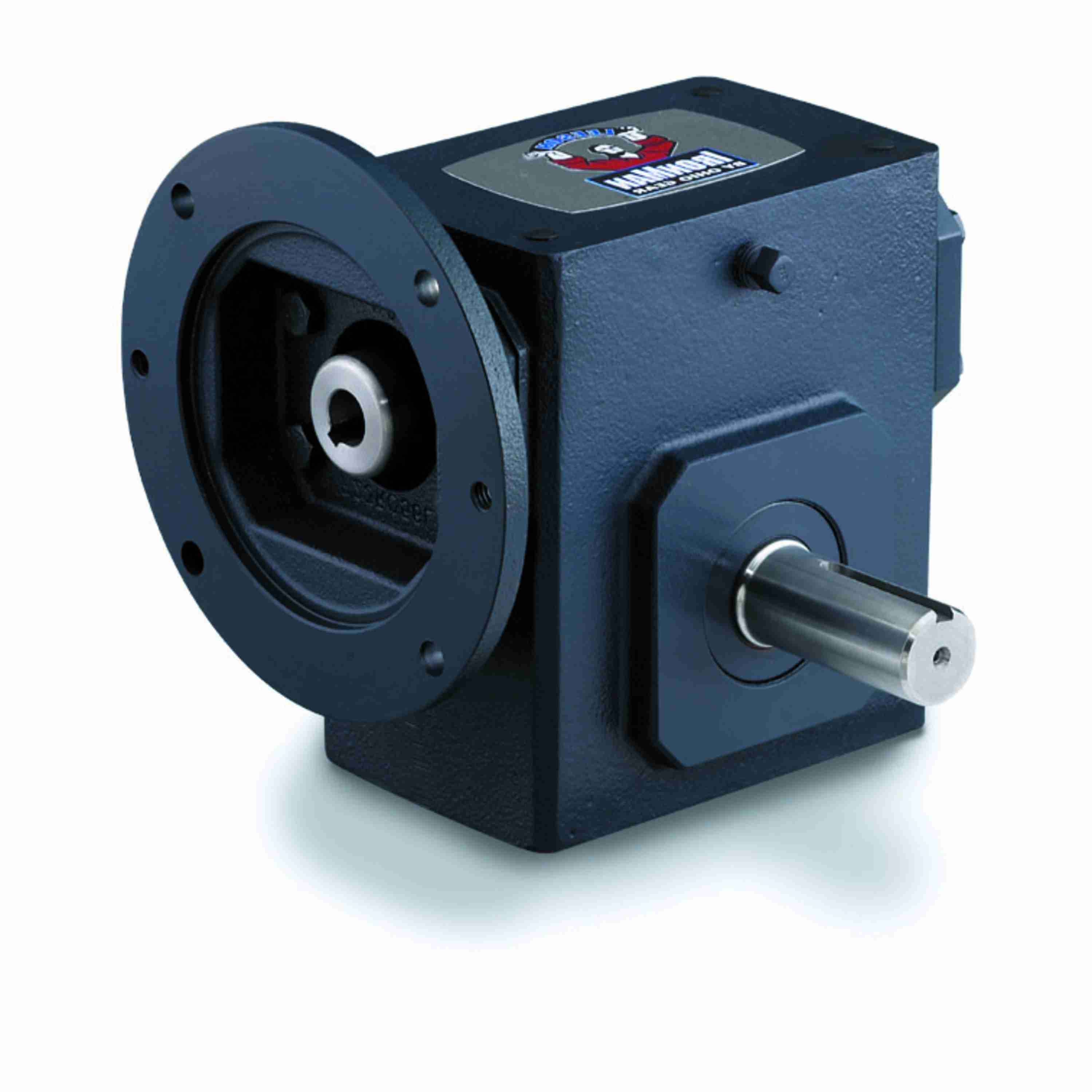

GROVE GEAR GR8300233.00 GR-BMQ830-20-R-140 Worm Reducer, 20:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron
€1,800.64 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Case Material | Cast Iron |
| Center Distance | 3" |
| Frame Size | 140TC |
| Gearbox Type | Worm |
| Hp | 3 19/20 hp |
| Input Bore Size | 7/8" |
| Material | Cast Iron |
| Max Input Hp | 3 947/1000 hp |
| Max Overhung Load | 2170 lbs. |
| Output Rpm | 87.5 RPM |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Type | Right Handed Shaft |
| Output Type | Right Shaft |
| Ratio | 20:1 |
| Service Factor 1 | 1.975 SF @ 2 HP |
| Service Factor 2 | 2.63 SF @ 1 1/2 HP |
| Service Factor 3 | 3.95 SF @ 1 HP |
| Ships Factory Direct | No |
| Torque Rating | 2454 lbs.-in. |
| Weight | 68 lbs. |
| Ship weight (kg) | 30.6 |
| Model | Price | |
|---|---|---|
| GR8300196.00 | €1,800.64 | |
| GR8300197.00 | €1,800.64 | |
| GR8300229.00 | €1,800.64 | |
| GR8300231.00 | €1,800.64 | |
| GR8300232.00 | €1,800.64 | |
| GR8300235.00 | €1,800.64 | |
| GR8300236.00 | - | RFQ
|
