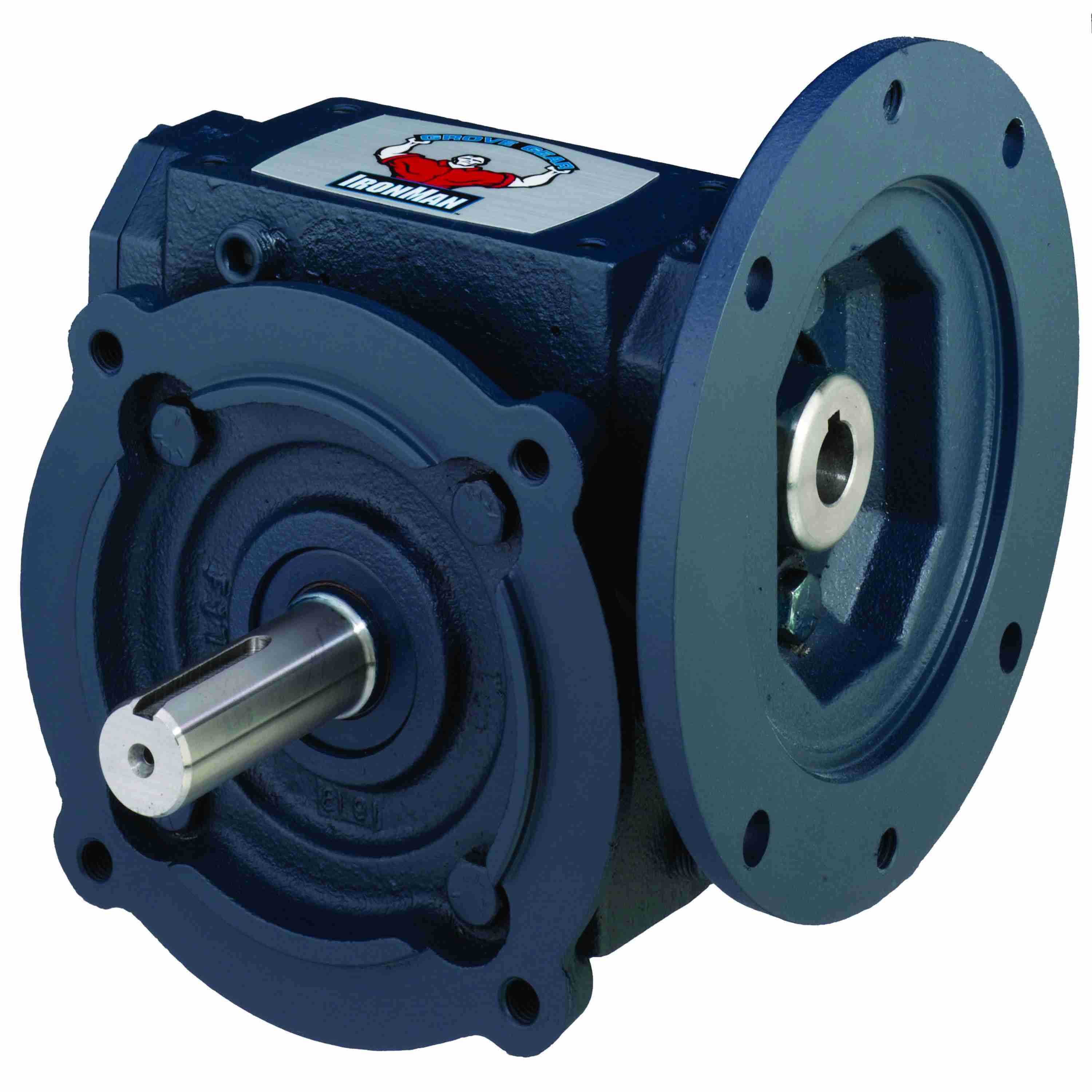

GROVE GEAR GR8241190.00 GR-CMQ824-60-L-140 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 1.125 Inch O.D, Cast Iron
€1,007.62 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Assembly | CMQ-L |
| Center Distance | 2.38" |
| Frame | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Dia. | 7/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 7/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 0.967 hp |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/8" |
| Output Hp | 82/125 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Rpm | 29 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Style | L |
| Output Torque | 1418 lbs.-in. |
| Overhung Load | 1770 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-CMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Size | 1/2"-13 |
| Thread Type | Coarse |
| Weight | 51 lbs. |
| Ship weight (kg) | 22.95 |
| Model | Price | |
|---|---|---|
| GR8240573.19 | €1,175.09 | RFQ
|
| GR8240573.20 | €1,724.57 | RFQ
|
| GR8240573.23 | €1,724.57 | |
| GR8240573.24 | €1,175.09 | RFQ
|
| GR8240574.16 | €1,175.09 | RFQ
|
| GR8240574.18 | €1,175.09 | RFQ
|
| GR8240574.19 | €1,724.57 |
