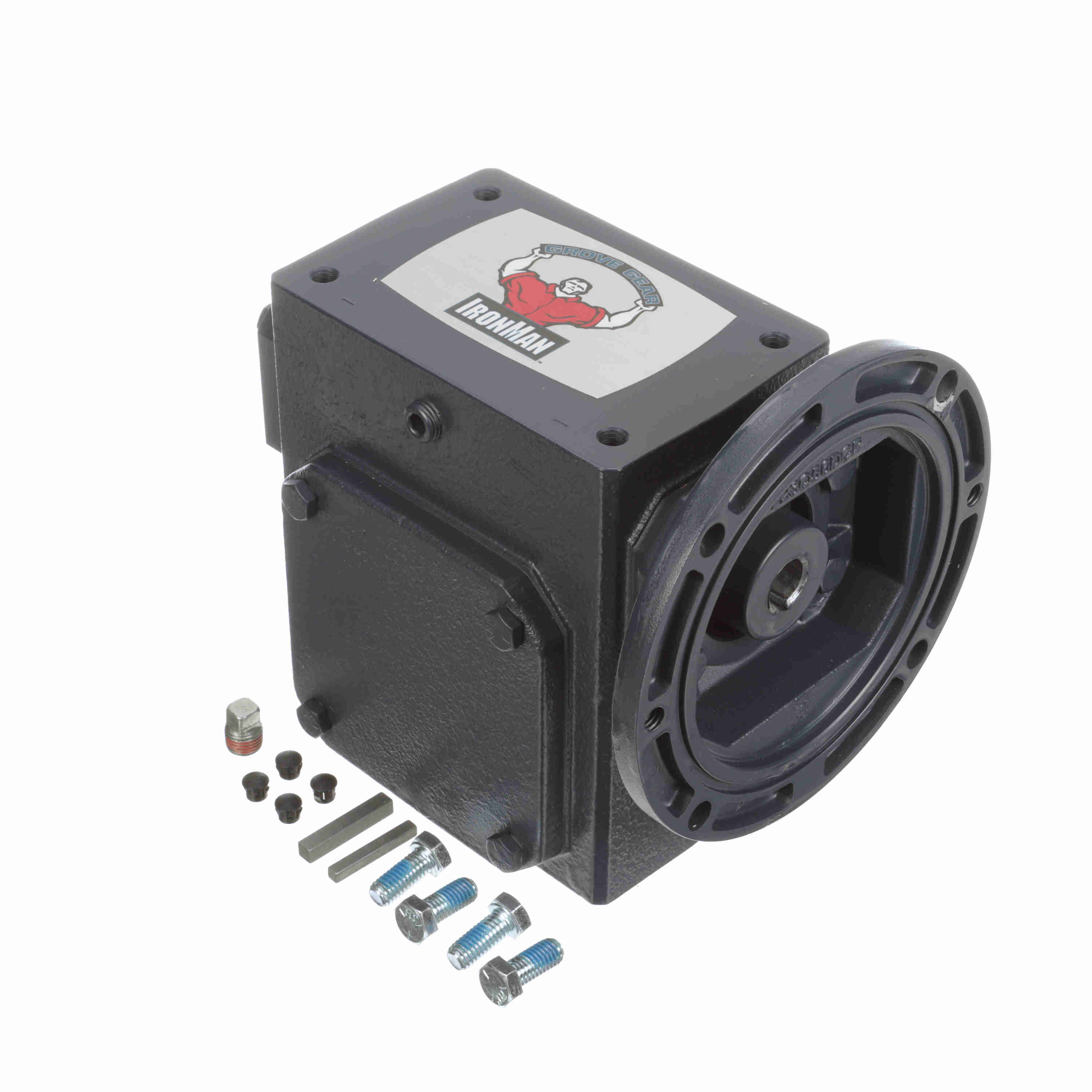

GROVE GEAR GR8240149.00 GR-BMQ824-20-L-56 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron
Get it by Wednesday, Jun 18
€1,055.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Reducer |
| Center Distance | 2.38" |
| Gear Ratio | 20:1 |
| Gearbox Type | Worm |
| Hp | 2.33 hp |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size | 3/16" x 3/32" |
| Input Style | C Face Quill |
| Lubrication | PAG Synthetic Oil |
| Material | Cast Iron |
| Max Input Hp | 2 163/500 hp |
| Max Overhung Load | 1175 lbs. |
| Max. Input Hp | 2.326 hp |
| Mounting Type | Base |
| Output Dia. | 1 1/8" |
| Output Hp | 1.972 hp |
| Output Keyway Size | 1/4" x 1 3/4" |
| Output Rpm | 87.5 RPM |
| Output Shaft Dia. | 1 1/8" |
| Output Shaft Length | 2.66" |
| Output Shaft Type | Left Handed Shaft |
| Output Type | Shaft |
| Product Series | GR Series |
| Ratio | 20:1 |
| Service Factor 1 | 1.17 SF @ 2 HP |
| Service Factor 2 | 1.55 SF @ 1 1/2 HP |
| Service Factor 3 | 2.33 SF @ 1 HP |
| Ships Factory Direct | No |
| Torque Rating | 1421 lbs.-in. |
| Type | Right Angle Single Reduction |
| Weight | 45 lbs. |
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| GR8240145.00 | €1,268.28 | |
| GR8240146.00 | €1,268.28 | |
| GR8240150.00 | €1,055.96 | |
| GR8240151.00 | €1,055.96 | |
| GR8240152.00 | €1,055.96 | |
| GR8240155.00 | €1,268.28 | |
| GR8240156.00 | €1,156.04 |
