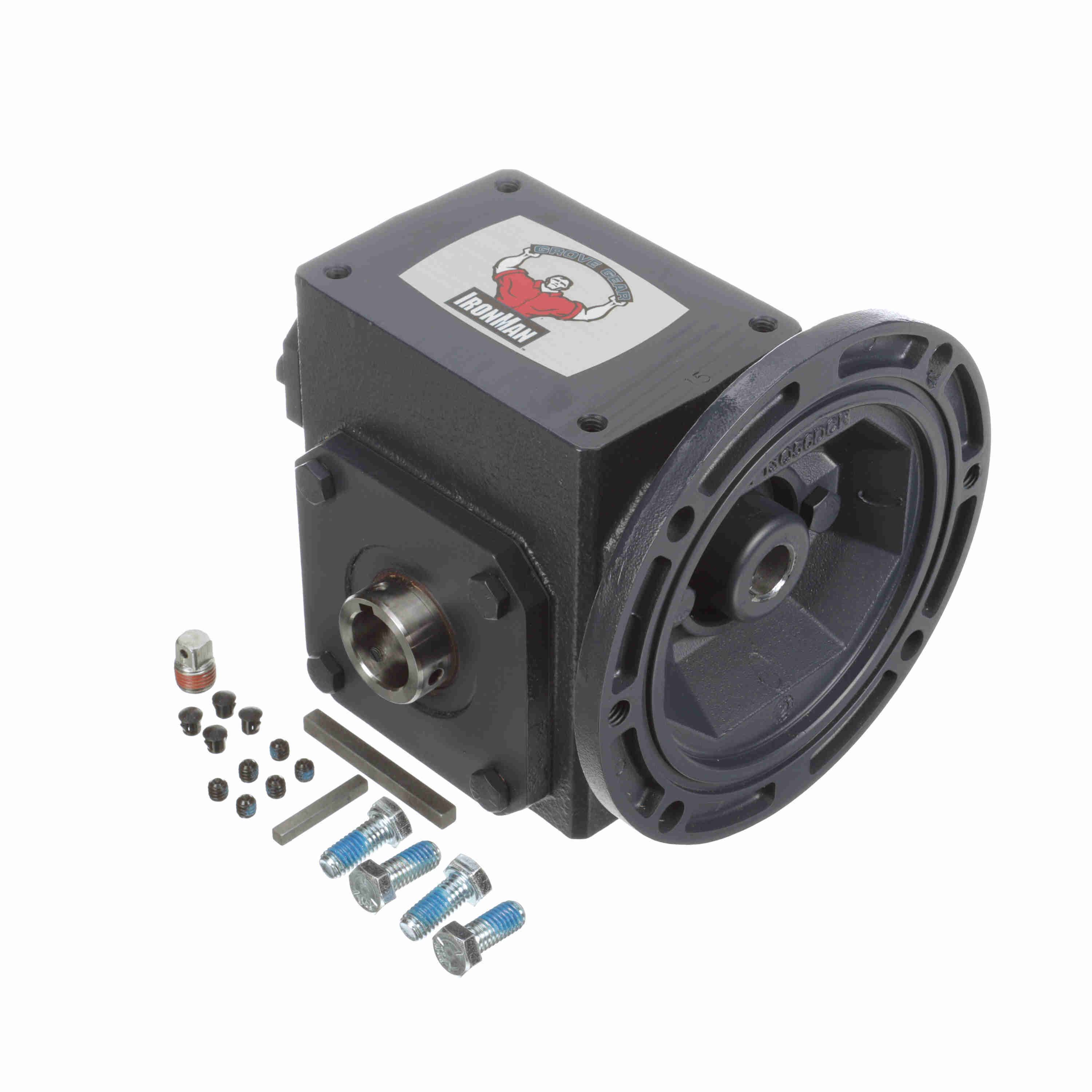

GROVE GEAR GR8180538.16 GR-HMQ818-7.5-H1-56-16 Quill Input Hollow Bore Output Worm Gear Reducer
Get it by Wednesday, Jun 18
€1,008.23 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Reducer |
| Center Distance | 1 3/4" |
| Gear Ratio | 7.5:1 |
| Gearbox Type | Worm |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size | 3/16" x 3/32" |
| Input Style | C Face Quill |
| Lubrication | PAG Synthetic Oil |
| Material | Cast Iron |
| Max Input Hp | 1 909/1000 hp |
| Max. Input Hp | 1.909 hp |
| Motor Hp | 1 1/2 hp |
| Mounting Type | Shaft |
| Output Dia. | 1" |
| Output Hp | 1.745 hp |
| Output Keyway Size | 1/4" x 2 1/2" |
| Output Shaft Type | Hollow Shaft |
| Output Type | Hollow Bore |
| Product Series | GR Series |
| Ships Factory Direct | No |
| Torque Rating | 471 lbs.-in. |
| Type | Right Angle Single Reduction |
| Width | 5 1/2" |
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| GR8180575.16 | €824.25 | RFQ
|
| GR8180577.16 | €1,210.95 | |
| GR8182593.16 | - | RFQ
|
| GR8182595.16 | €1,016.69 | RFQ
|
| GR8182600.16 | €1,799.58 | RFQ
|
| GR8182601.16 | €1,373.43 | RFQ
|
| GR8182605.16 | €1,799.58 | RFQ
|
