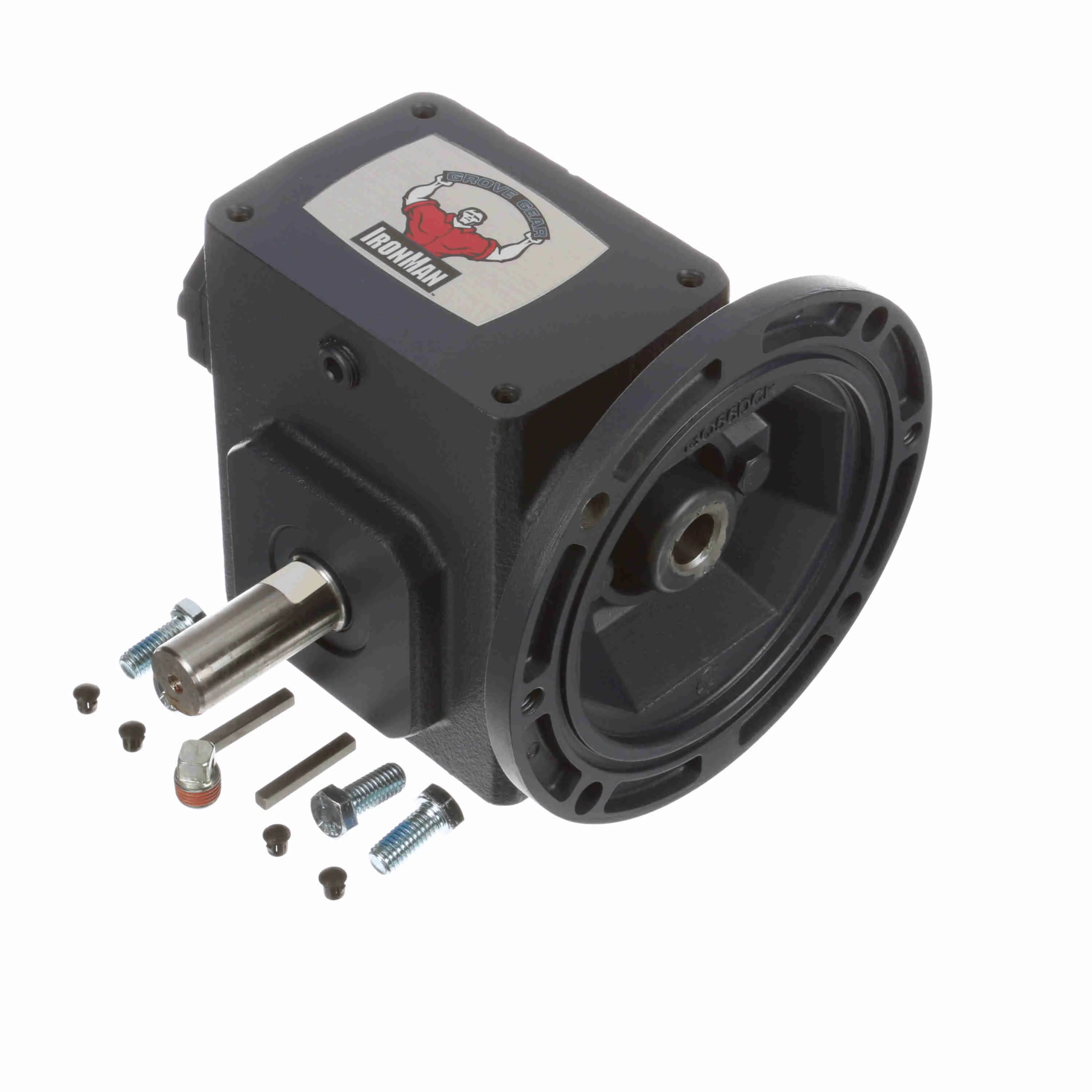

GROVE GEAR GR8180111.00 GR-BMQ818-10-L-56 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 0.875 Inch O.D, Right Angle Cast Iron
Get it by Tuesday, Jun 17
€746.18 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Center Distance | 1 3/4" |
| Gear Ratio | 10:1 |
| Gearbox Type | Worm |
| Hp | 1.63 hp |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size | 3/16" x 3/32" |
| Input Style | C Face Quill |
| Lubrication | PAG Synthetic Oil |
| Material | Cast Iron |
| Max Input Hp | 1 5/8 hp |
| Max Overhung Load | 1065 lbs. |
| Max. Input Hp | 1 5/8 hp |
| Mounting Type | Base |
| Output Dia. | 7/8" |
| Output Hp | 1.466 hp |
| Output Keyway Size | 0.1875" x 1.38" |
| Output Rpm | 175 RPM |
| Output Shaft Dia. | 7/8" |
| Output Shaft Length | 2.05" |
| Output Shaft Type | Left Handed Shaft |
| Output Type | Shaft |
| Product Series | GR Series |
| Ratio | 10:1 |
| Service Factor 1 | 1.09 SF @ 1 1/2 HP |
| Service Factor 2 | 1.63 SF @ 1 HP |
| Service Factor 3 | 2.17 SF @ 3/4 HP |
| Ships Factory Direct | No |
| Torque Rating | 528 lbs.-in. |
| Type | Right Angle Single Reduction |
| Weight | 27 lbs. |
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| GR8180575.16 | €824.25 | RFQ
|
| GR8180577.16 | €1,210.95 | |
| GR8182593.16 | - | RFQ
|
| GR8182595.16 | €1,016.69 | RFQ
|
| GR8182600.16 | €1,799.58 | RFQ
|
| GR8182601.16 | €1,373.43 | RFQ
|
| GR8182605.16 | €1,799.58 | RFQ
|
